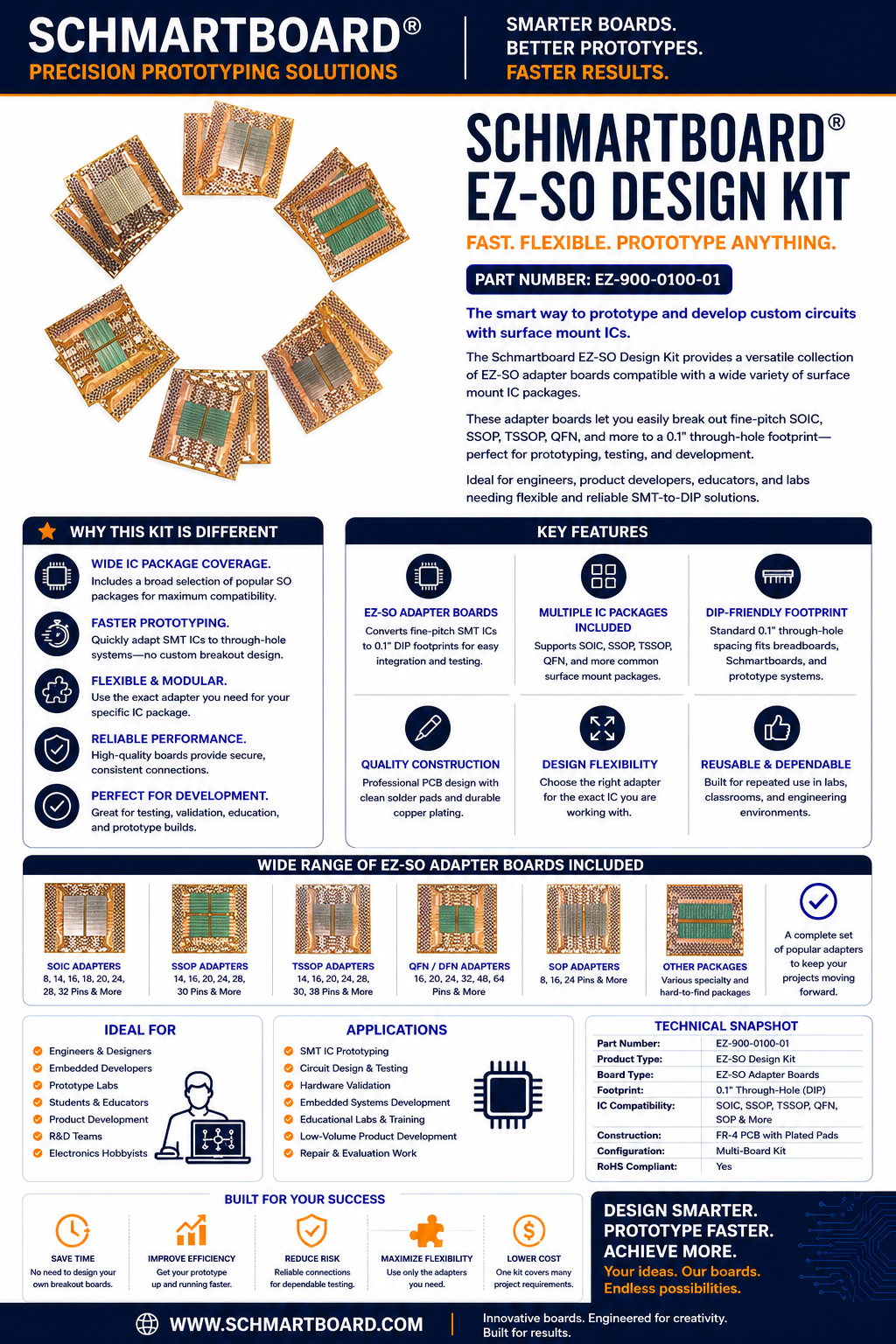

Schmartboard|ez SO Design Kit "EZ" (900-0100-01)

Hover over image to zoom

  • Image 1
$89.99
SKU:
900-0100-01

 Product Description

SO Design Kit "EZ"

If you use a lot of SOIC packages, this is the perfect solution to stock your bench with.  This package contains 2 of each of the following:1-game-changer.jpg

56 pin SO, SOP, QSOP, SSOP, TSSOP, PSSOP package IC with a 1.27mm (0.050") pitch
72 pins SO, SOP, QSOP, SSOP, TSSOP,and  PSSOP package ICs with 0.8mm pitch
72 pins SO, SOP, QSOP, SSOP, TSSOP, and PSSOP package ICs with 0.65mm pitch
72 pins for SO, SOP, QSOP, SSOP, TSSOP, and PSSOP package ICs with a 0.5mm pitch
72 pins for SO, SOP, QSOP, SSOP, TSSOP, and PSSOP package ICs with a 0.4mm pitch
72 pin SO, SOP, QSOP, SSOP, TSSOP, PSSOP package IC with 0.635mm pitch



schmartboard-ez.jpgOnce upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboards and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.




Brochure

PCB Material Specifications

 Product Videos

Hand Soldering an SOIC Part with SchmartBoard|ez
  • Hand Soldering an SOIC Part with SchmartBoard|ez
    SchmartBoard makes it simple to hand solder SMT components. Y...
