Through Hole RGB 15 Pins Connector 0.5" X 2" Grid (201-0106-01)

SchmartBoard Through-Hole RGB 15-Pin Connector (0.5” x 2” Grid)

Supports 1 RGB 15 pin connector.

The SchmartBoard Through-Hole RGB 15-Pin Connector is designed to provide seamless integration for RGB LED applications, allowing you to easily incorporate color controls into your projects. Perfect for custom lighting setups, displays, and other electronics projects requiring precise color control, this connector ensures clean, reliable connections for your RGB systems.

Key Features:

• RGB 15-Pin Connector: Specifically designed for RGB LED applications, this connector supports easy integration for controlling red, green, and blue channels, enabling full-color lighting effects.
• Compact 0.5” x 2” Grid: Space-efficient design ensures it fits easily into your project while maintaining organization and accessibility.
• Standard 0.1” Hole Spacing: Compatible with through-hole components, allowing seamless integration into breadboards, prototyping boards, and custom PCBs.
• Durable Construction: Made from high-quality materials to withstand repeated soldering, ensuring reliable performance over time.
• Versatile Use: Ideal for RGB LED strips, displays, signage, and custom light setups in a wide range of hobbyist, DIY, and professional applications.

The SchmartBoard Through-Hole RGB 15-Pin Connector is your go-to solution for adding RGB LED control to your electronic projects, offering an organized and reliable connection for your color-changing designs.

Light up your projects with SchmartBoard—efficiently integrate RGB control and bring your designs to life!

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard's "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

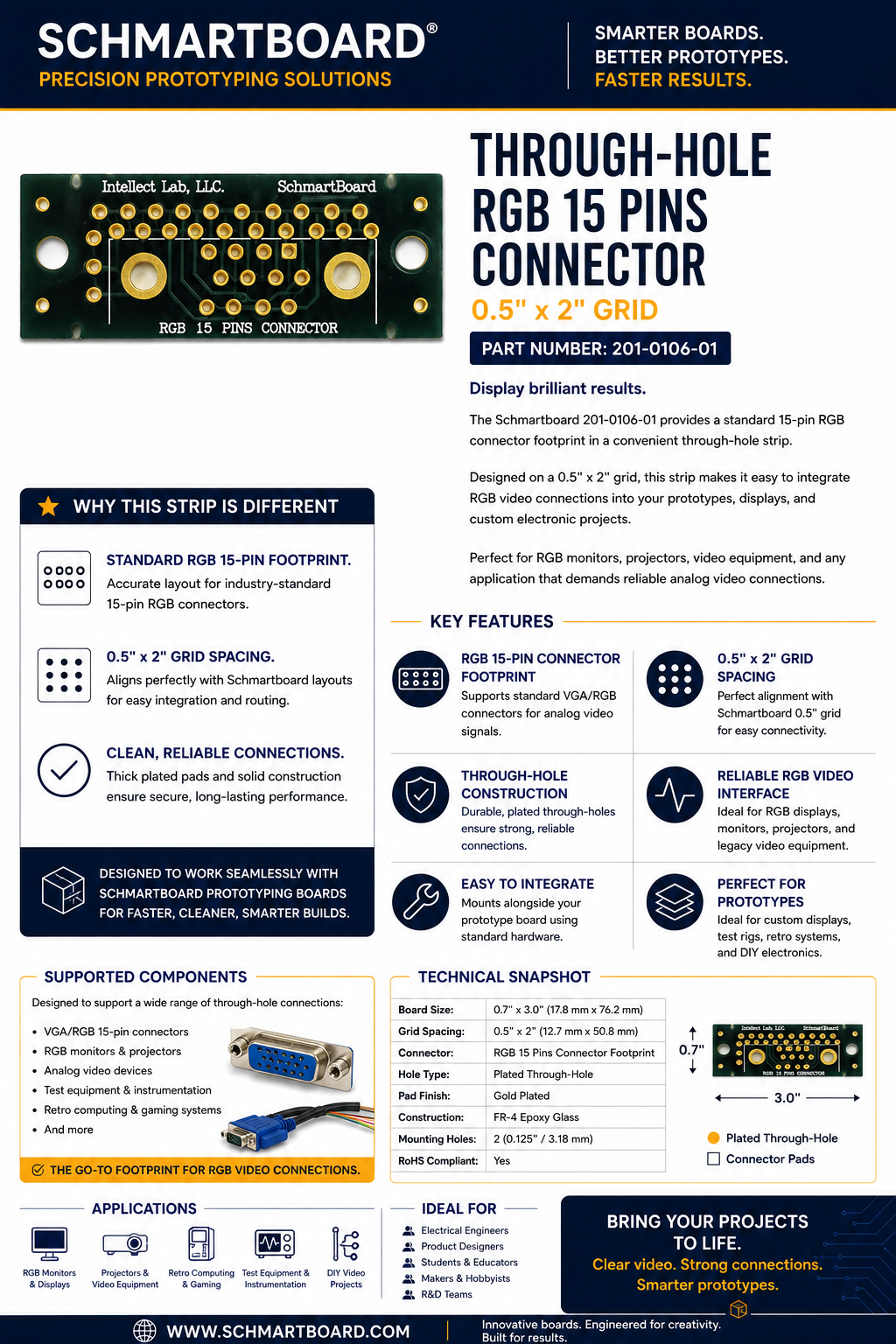

Brochure

Detailed Diagram

Mechanical Specifications
