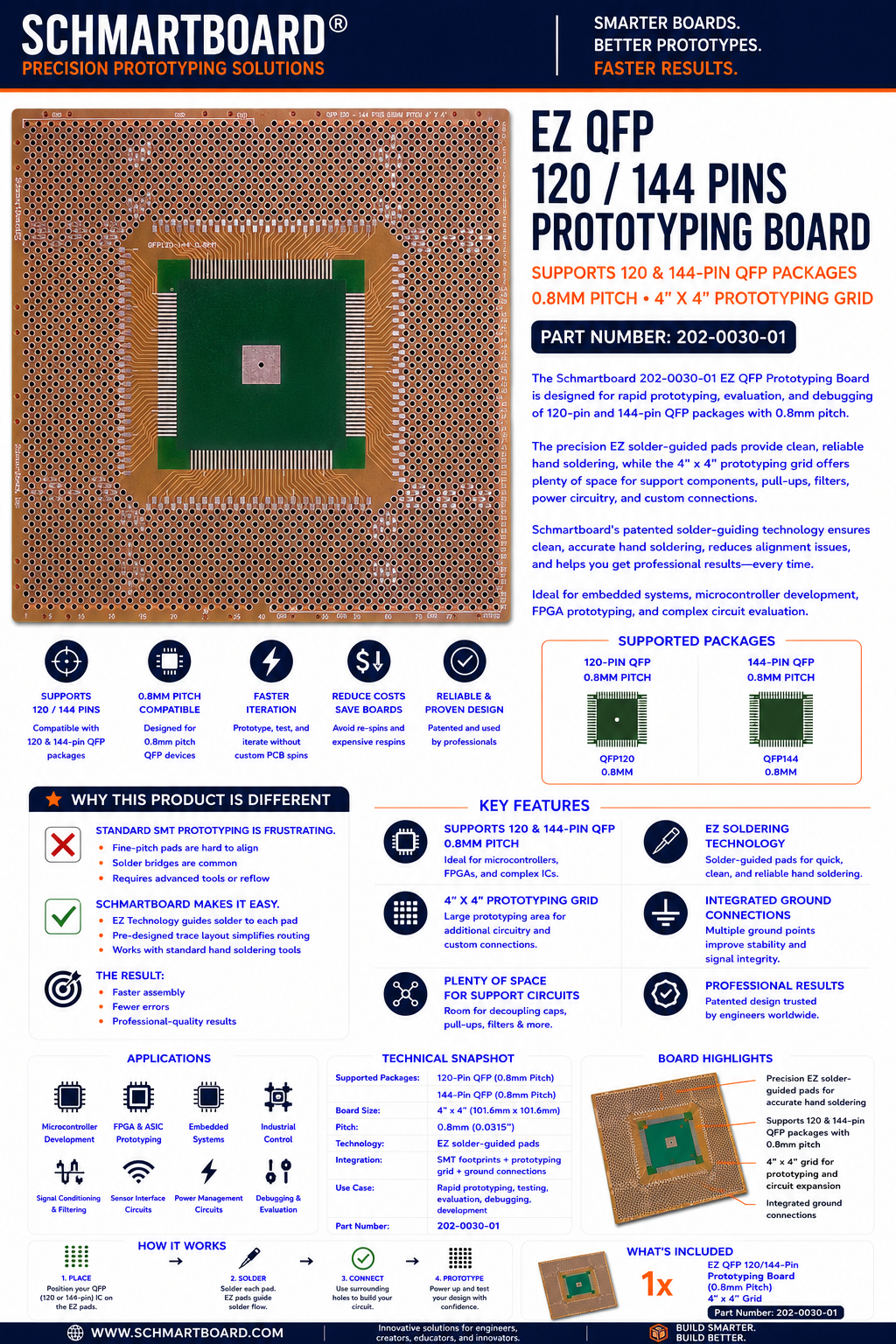

Schmartboard|ez QFP, 120 - 144 Pins 0.8mm Pitch, 4" X 4" Grid (202-0030-01)

The 202-0030-01 supports QFP, TQFP and PQFP packages from 120 - 144 Pins and a 0.8mm Pitch.

It also supports 74 pieces of 0603 package, 4 pieces of C/D size package, and some through-hole passive components.

This 4" x 4" product utilizes the "EZ" technology to assure fast, easy, and flawless hand soldering.

The GND (ground) busses (upper left to center and lower right to center) on the front of the board are electrically connected to each other and to a single ground plane on the back.

The back of the board is a copper GND plane.  There is a ground plane pad for each IC pin designed to accommodate 0603 footprint for easy installation of a decoupling capacitor or other part.

The SchmartBoard EZ QFP-120/144 Pins board is designed to make prototyping with large, high-pin-count Quad Flat Package (QFP) components faster and easier. This versatile board supports both QFP-120 and QFP-144 components, featuring a 0.8mm pitch—ideal for complex microcontrollers, memory devices, and logic ICs. Utilizing SchmartBoard’s patented EZ Technology, it simplifies the soldering of these components, removing the need for advanced tools and skills, making it accessible to engineers, makers, and hobbyists alike.

Key Features:

• Supports QFP-120 and QFP-144 Pins with 0.8mm Pitch: Designed for QFP-120 and QFP-144 components with a 0.8mm pitch, this board is perfect for integrating high-performance microprocessors, FPGA chips, and system-on-chip (SoC) devices into your projects.
• EZ Technology for Simple Soldering: SchmartBoard’s EZ Technology ensures easy, reliable soldering even for large QFP components. With the board’s intuitive layout, you can solder these components quickly and efficiently—no specialized tools required.
• 4” x 4” Grid Layout: The 4” x 4” grid offers a spacious and organized workspace for large, high-pin-count devices, making it easier to route and place components precisely. This layout helps streamline the prototyping process, even for complex designs.
• Versatile Applications: Ideal for consumer electronics, telecommunications, automotive electronics, medical devices, industrial control systems, and any project that requires integrating high-pin-count QFP components.
• Durable and Reliable: Built with high-quality materials, this board is designed for repeated use, offering long-lasting performance for multiple prototyping cycles.
• User-Friendly and Flexible: Whether you're testing new designs, prototyping a product, or working on a custom circuit, this board provides the flexibility and ease you need to develop your electronics with confidence.

The SchmartBoard EZ QFP-120/144 Pins, 0.8mm Pitch board is an essential tool for anyone working with QFP components. Its EZ Technology simplifies the integration of these large, high-pin-count devices, so you can spend more time developing and less time dealing with complicated soldering.

Accelerate your prototyping process with SchmartBoard EZ Technology—designed for ease, accuracy, and reliable QFP integration.

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboards and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

Would you prefer that we solder the parts for you?  Click Here for details!
