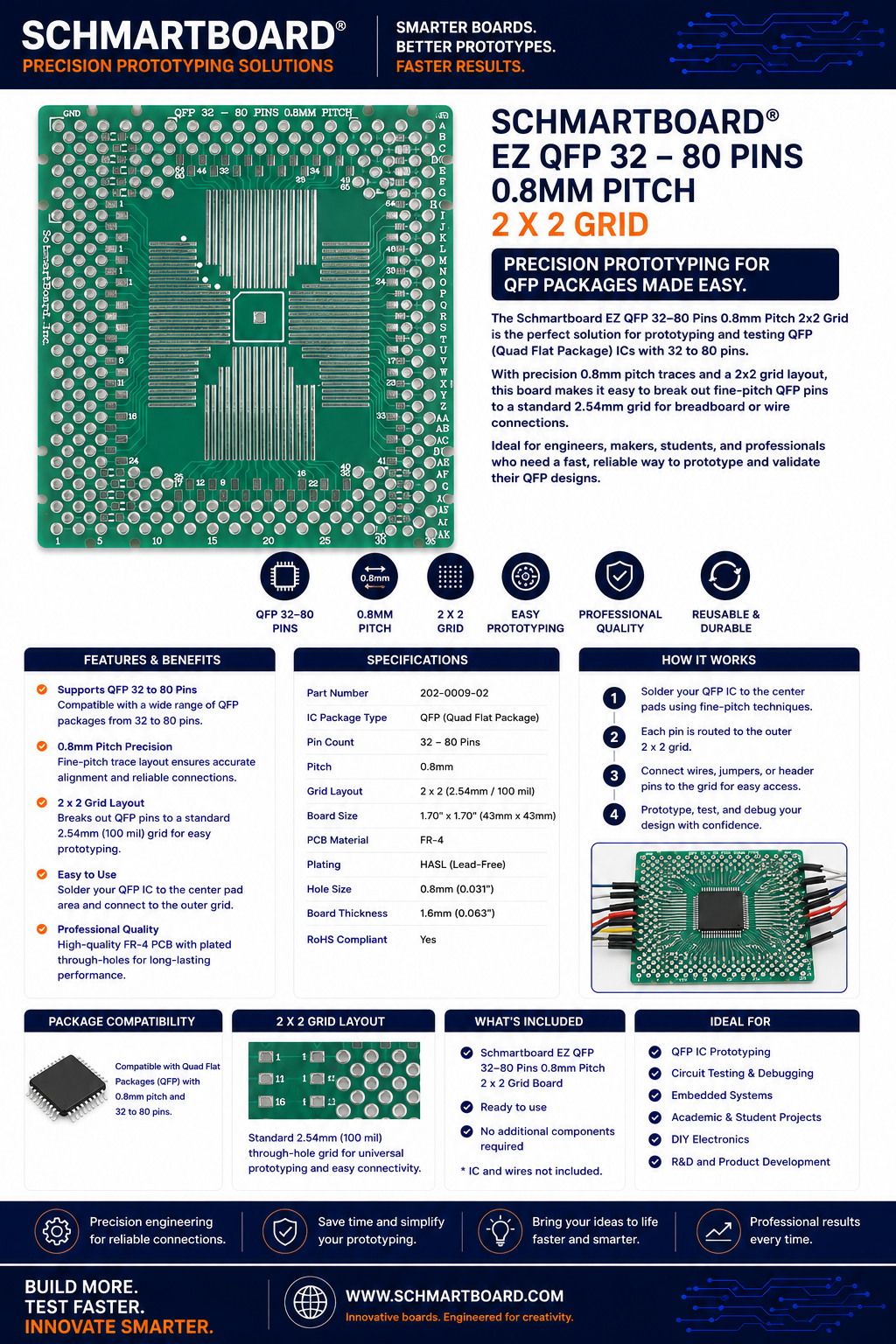

Schmartboard|ez QFP, 32 - 80 Pins 0.8mm Pitch, 2" X 2" Grid (202-0009-02)

The 202-0009-02 supports up to 80 pins QFP, TQFP and PQFP package ICs with a 0.8mm pitch.

It also supports 22 pieces of 0603 package, and some through hole passive components.

This product utilizes the "EZ" technology to assure fast, easy, and flawless hand soldering.

The GND (ground) busses (upper left/right corner) on the front of the board are electrically connected to each other and to a single ground plane on the back.

The back of the board is a copper GND plane.  There is a ground plane pad for each IC pin designed to accommodate 0603 footprint for easy installation of a decoupling capacitor or other part.

The SchmartBoard EZ QFP-32 to QFP-80 Pins board is designed to simplify the prototyping and integration of Quad Flat Package (QFP) components with pin counts ranging from QFP-32 to QFP-80. Featuring a 0.8mm pitch and a 2” x 2” grid, this board makes it easier than ever to work with high-density surface-mount devices, ensuring fast, efficient development for engineers, makers, and hobbyists alike.

Key Features:

• Supports QFP-32 to QFP-80 Pins: This versatile board accommodates a wide range of QFP packages, from QFP-32 to QFP-80, giving you the flexibility to choose the right components for your design.
• 0.8mm Pitch: The 0.8mm pitch is ideal for integrating a variety of QFP components, including microcontrollers, ICs, FPGA devices, and other high-performance parts.
• EZ Technology for Effortless Soldering: SchmartBoard’s proprietary EZ Technology simplifies surface-mount soldering, making it accessible even to beginners. The easy-to-solder design ensures that fine-pitch QFP components are securely placed without the need for specialized equipment.
• 2” x 2” Grid: The 2” x 2” grid layout ensures that your components are arranged in a manageable and organized manner, optimizing space while keeping your workspace clean and efficient.
• Versatile Applications: Ideal for a wide range of applications, including consumer electronics, automotive systems, telecommunications, medical devices, and industrial electronics.
• Durable and Reliable: Constructed from high-quality materials, this board is built to withstand repeated use, providing reliable performance and longevity through multiple prototyping cycles.

The SchmartBoard EZ QFP-32 to QFP-80 Pins board is the perfect solution for prototyping QFP components in a 0.8mm pitch configuration. Whether you’re designing cutting-edge electronics, testing custom components, or building advanced systems, this board makes the process quick, easy, and accurate.

Streamline your prototyping process and accelerate your project development with SchmartBoard!

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboards and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

Would you prefer that we solder the parts for you?  Click Here for details!
