Schmartboard|ez .635mm Pitch SOIC to DIP adapter (204-0013-01)

Schmartboard EZ 0.635mm Pitch SOIC to DIP Adapter (204-0013-01)

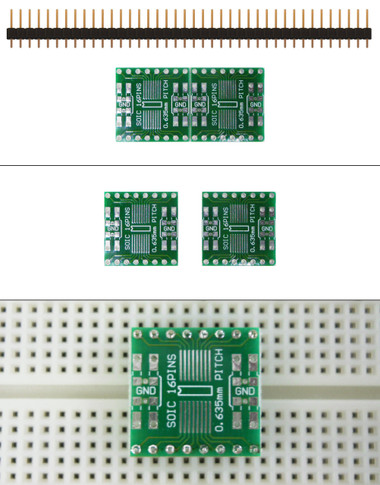

Easily convert 0.635mm pitch SOIC (Small Outline Integrated Circuit) components to the widely-used 0.1" DIP (Dual Inline Package) format with the Schmartboard EZ 0.635mm Pitch SOIC to DIP Adapter. This easy-to-use adapter is designed for quick and reliable prototyping, testing, and circuit design, allowing you to seamlessly integrate 0.635mm pitch SOIC devices into breadboards or DIP-based setups. No special tools or soldering skills are required—simply place your SOIC component on the adapter, and you’re ready to go. Perfect for engineers, hobbyists, and makers, this adapter ensures consistent performance with clear pinouts and secure connections, making it an essential tool for any electronics project.

Key Features:

• Converts 0.635mm pitch SOIC components to standard 0.1" DIP format.
• Ideal for breadboarding, prototyping, and testing 0.635mm pitch SOIC components.
• Durable PCB with reliable pinouts for secure and seamless connections.
• Compatible with a wide variety of 0.635mm pitch SOIC devices.

Streamline your prototyping workflow with the Schmartboard EZ 0.635mm Pitch SOIC to DIP Adapter—your go-to solution for quick and effective integration of 0.635mm pitch SOIC components into DIP-based designs.

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.
