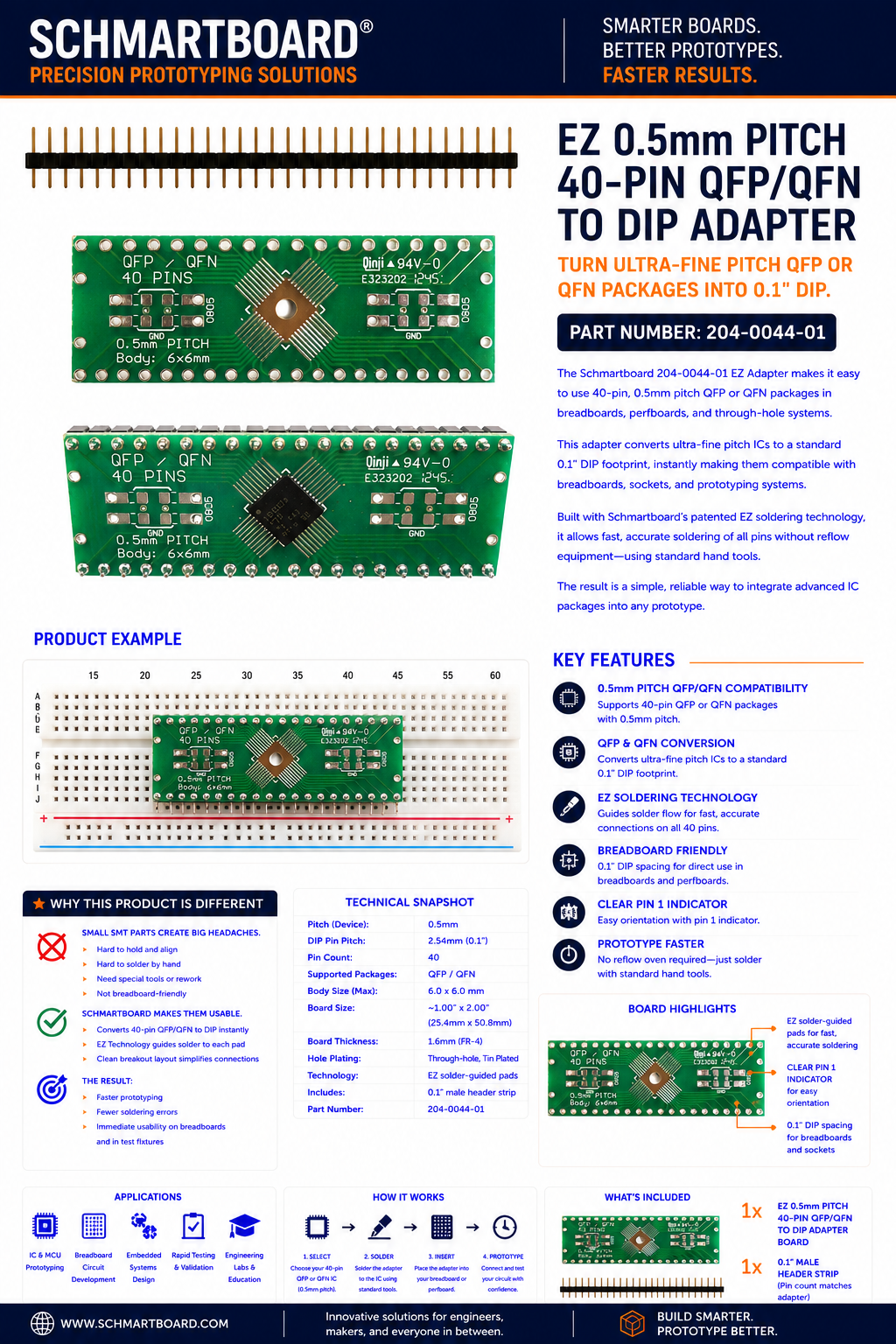

Schmartboard|ez 0.5mm Pitch, 40 Pin QFP/QFN to DIP adapter (204-0044-01)

Schmartboard|ez 0.5mm Pitch, 40 Pin QFP/QFN to DIP adapter

This product is an QFP/QFN to DIP adapter with a twist. These have our patented "ez" technology which means that soldering the surface mount component is simple, and as with all of our "ez" boards, we are the only company with a patented solution for easily soldering surface mount parts. Included in the package is 0.5mm pitch adapter board for 40 Lead QFP or QFN and a row of headers to use the boards with a breadboard. This board also includes room for 0805 SMT discrete components such as a bypass capacitor and pads for easy access to a ground. Additionally a plated hole in the center of the device area, allows for the addition of solder to utilize ground pads on the bottom of the IC. A standard row of 40 headers has been included as a bonus for your convenience. Schmartboards patented "EZ" technology which makes hand soldering surface mount fast, easy and flawless. It has pre routed traces to minimize the use of wire jumpers. It has easy access to copper ground. It makes it possible to breadboard surface mount components.

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Would you prefer that we solder the parts for you?  Click Here for details!

Brochure

Detailed Diagram
Mechanical Dimension

PCB Material Specifications

Package Sizes Supported By This Board

Product Review 1
Product Review 2
Product Review 3
Product Review 4
