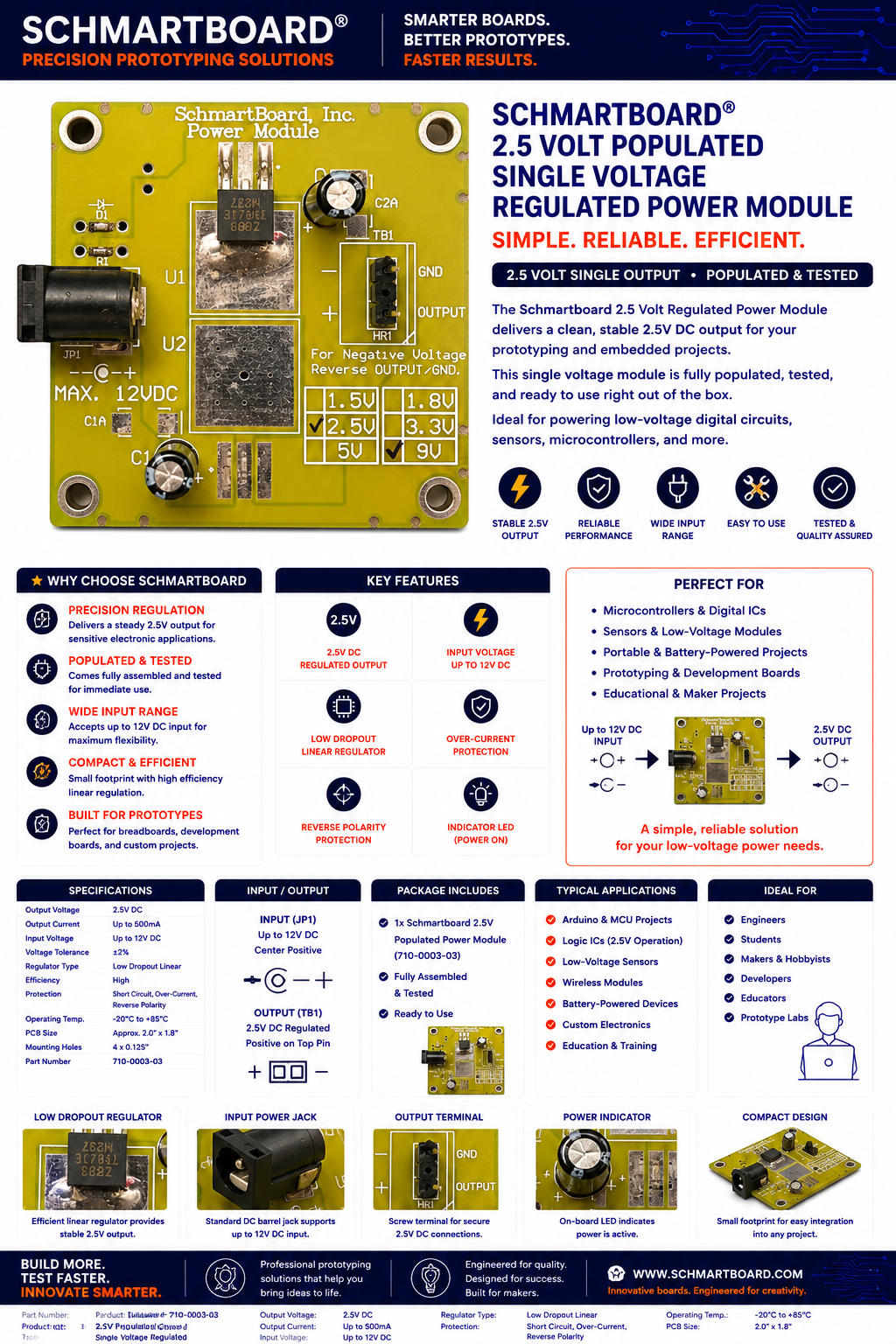

Schmartboard 2.5 Volt Populated Single Voltage Regulated Power Module (710-0003-03)

Schmartboard 2.5 Volt Populated Single Voltage Regulated Power Module

Easily add voltage to your circuit. 2.5V Power Single Voltage Regulated Module: This is a highly stable linear-low-drop voltage regulator. With 12V DC input, output is 2.5V and provide up to 800mA of output peak current. For Negative Voltage: Reverse Output and Ground.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard's "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

Brochure

Schematic
BOM
Product Notes

Mechanical Dimensions
