Through Hole RJ11/45 AND USB Connector 0.5" X 2" Grid (201-0108-01)

SchmartBoard Through-Hole RJ11, RJ45, and USB Connector (0.5” x 2” Grid)

Supports 1 RJ11 or RJ45 connector and 1 USB Type A or B connector.

The SchmartBoard Through-Hole RJ11, RJ45, and USB Connector is a versatile solution for integrating a variety of popular communication and data transfer interfaces into your electronic projects. Whether you're building networking equipment, telecom devices, or custom USB connections, this connector ensures a clean and reliable connection for your circuits.

Key Features:

• Multi-Connector Design: Supports RJ11 (telephone), RJ45 (Ethernet), and USB connections, providing flexibility in your designs and ensuring compatibility with multiple types of devices.
• Compact 0.5” x 2” Grid: The efficient grid layout allows you to incorporate these connectors into your projects without taking up unnecessary space.
• Standard 0.1” Hole Spacing: Fully compatible with through-hole components, making it easy to integrate into breadboards, prototyping boards, and custom PCBs.
• Durable and Reliable: Designed with high-quality materials to withstand repeated soldering cycles, ensuring long-lasting, dependable performance.
• Versatile Application: Perfect for networking projects, telecommunication devices, custom USB interfaces, and any circuit requiring these common connection types.

The SchmartBoard Through-Hole RJ11, RJ45, and USB Connector provides a quick, organized way to implement essential connectivity in your electronics designs.

Streamline your project’s communication capabilities with SchmartBoard—connect with ease and confidence!

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard's "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

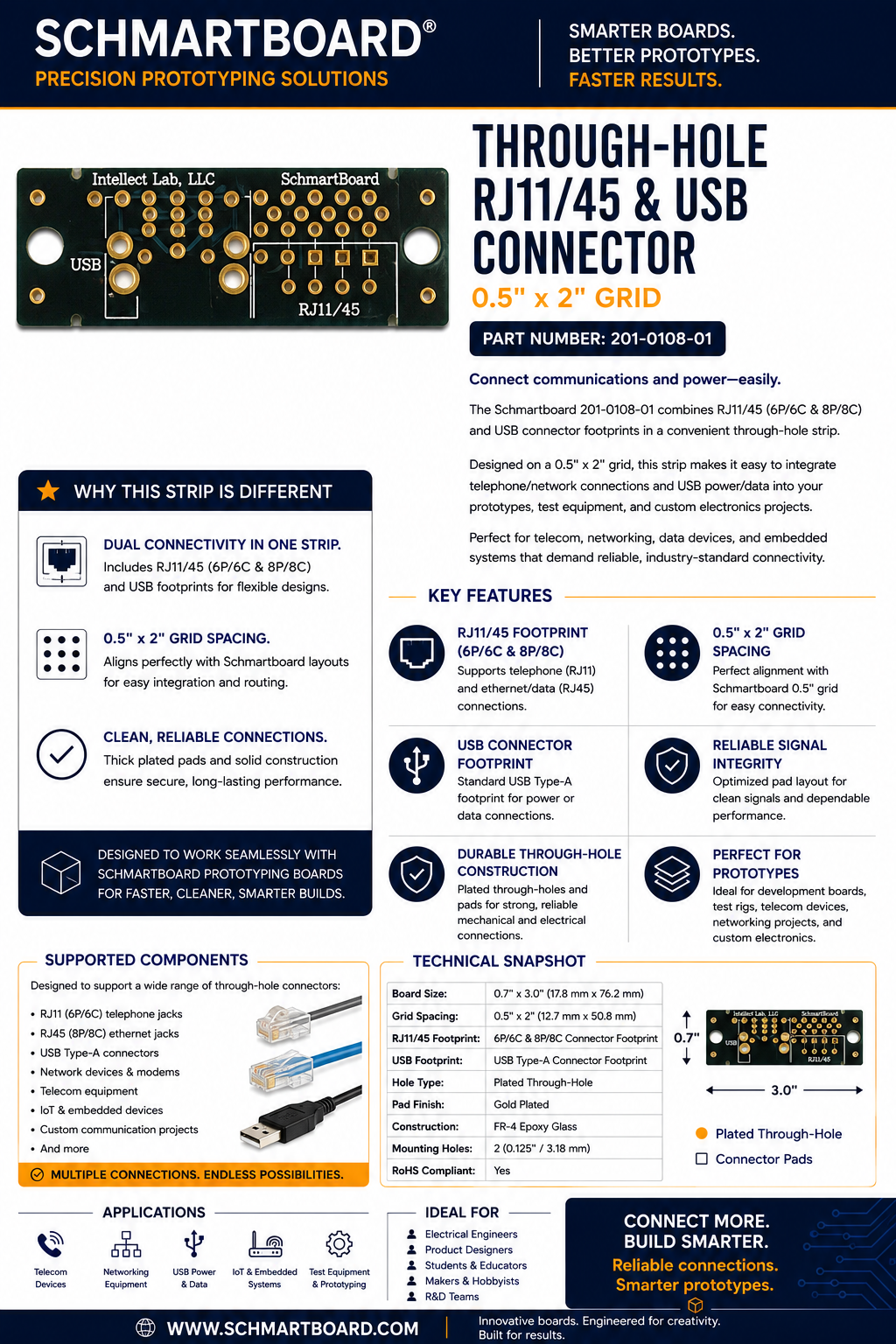

Brochure

Schmartboard uses P/N#95501-2641 as our RJ-11 design reference.
Schmartboard uses P/N# 95501-2881 as our RJ-45 design reference.

Detailed Diagram

Mechanical Specifications
