Through Hole 0.1" Spacing With Schmartboard's Signature 0.05" Offset Grid, 2" X 2" (201-0001-01)

2" x 2" 0.1" spacing through Hole Board with 0.05" row offset.

Take your electronics prototyping to the next level with the SchmartBoard Through-Hole Prototyping Board. Designed for engineers, hobbyists, and students, this innovative board simplifies circuit assembly with features that enhance precision, flexibility, and ease of use.

Key Features:

• Unique 0.05” Offset Grid: Unlike traditional prototyping boards, SchmartBoard’s patented 0.05” offset grid ensures components fit seamlessly, even in tight or irregular layouts.
• Standard 0.1” Hole Spacing: Perfect for compatibility with standard through-hole components and connectors.
• Compact 2” x 2” Design: Ideal for small-scale projects, prototypes, and modular circuit designs.
• High-Quality Construction: Built to withstand repeated soldering and ensure reliable connections.

100% support of the through hole components with the 0.1" spacing pitch. 12 ground holes are connected a copper plane on the bottom side. Components such as capacitor, resistor, diode, inductor, crystal, headers, jumpers, fuse, transistors, voltage regulators, DIP IC 70 pins or sockets, DIP switches, relay, RJ11, RJ45 connector...etc. are supported.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard's "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

Whether you're building circuits from scratch, testing components, or creating a custom PCB layout, this SchmartBoard offers the perfect balance of functionality and convenience. Its innovative design reduces soldering errors, improves workflow, and makes prototyping faster and more efficient.

Start creating smarter with SchmartBoard!

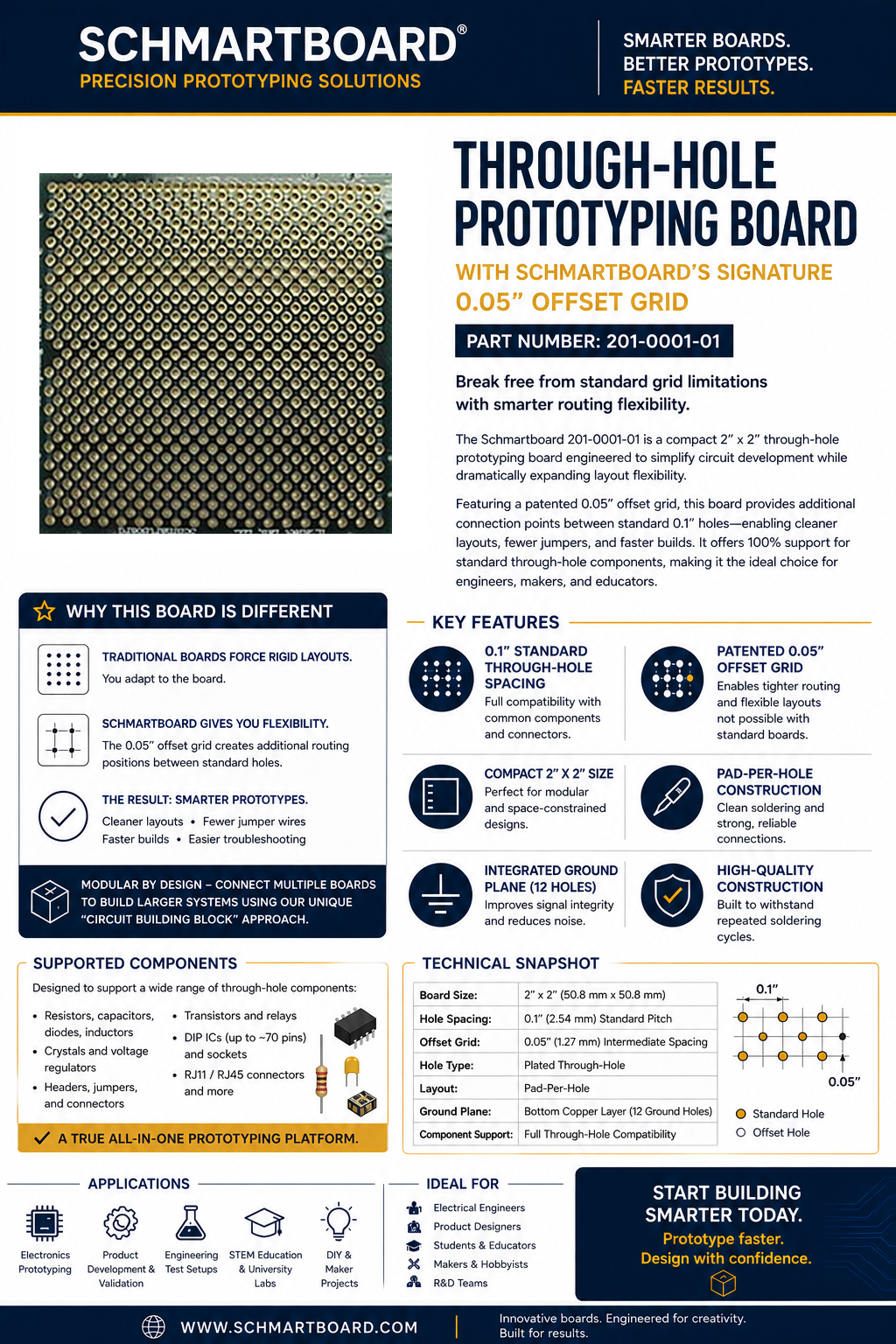

Brochure

Detailed Diagram

Mechanical Specifications
