Schmartboard Through Hole 0.1" Spacing Including Schmartboard's Signature 0.05" Offset Grid, 4" X 4" (201-0302-01)

4" X 4" Through Hole Board

The SchmartBoard Through-Hole Prototyping Board is the ultimate tool for engineers, makers, and hobbyists looking to create clean, efficient, and reliable circuit prototypes. With its standard 0.1” hole spacing and patented 0.05” offset grid, this board simplifies component placement and soldering, even for the most complex designs.

Key Features:

• Standard 0.1” Hole Spacing: Compatible with a wide range of through-hole components and connectors for versatile prototyping.
• Innovative 0.05” Offset Grid: SchmartBoard’s unique offset design makes routing easier, reduces soldering errors, and streamlines connections in tight layouts.
• Large 4” x 4” Prototyping Area: Ample space for larger or more complex circuits, while maintaining a compact form factor.
• Durable Build: High-quality materials withstand repeated soldering and provide reliable, long-term connections.
• Perfect for Professionals and Hobbyists: Whether you're designing advanced circuits or experimenting with electronics, this board is tailored to meet your needs.

• 0.1" Spacing Including Schmartboard's Signature 0.05" Offset Grid,
• 3/4 of the board our signature offset traced rows of holes,
• 1/4 of the board with untraced holes.
• 100% support of the through hole components with the 0.1" spacing pitch.
• The PCB is scored so that it is easily break into 2 2"x4" size boards
• There are 3 separate ground planes, and each plane is connected to 2 ground strips.  The ground strips are labeled GND1, GND2, and GND3.
•  In addition, there are 2 columns of power rails.

The SchmartBoard is designed to make prototyping smarter and more efficient. Its innovative grid system saves time, minimizes errors, and allows for greater flexibility when creating or testing electronic designs.

Upgrade your prototyping process with the SchmartBoard Through-Hole Prototyping Board!

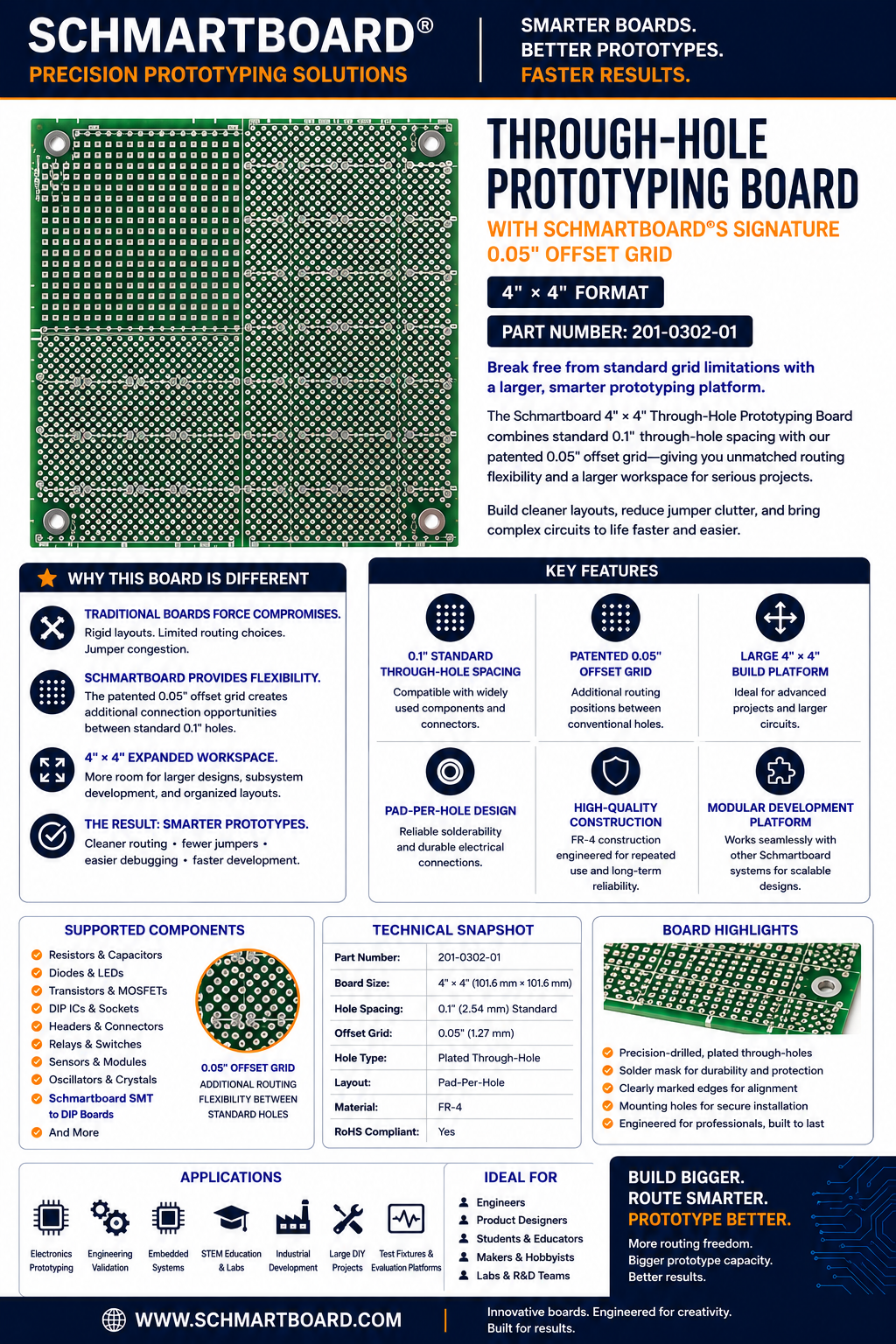

Brochure
