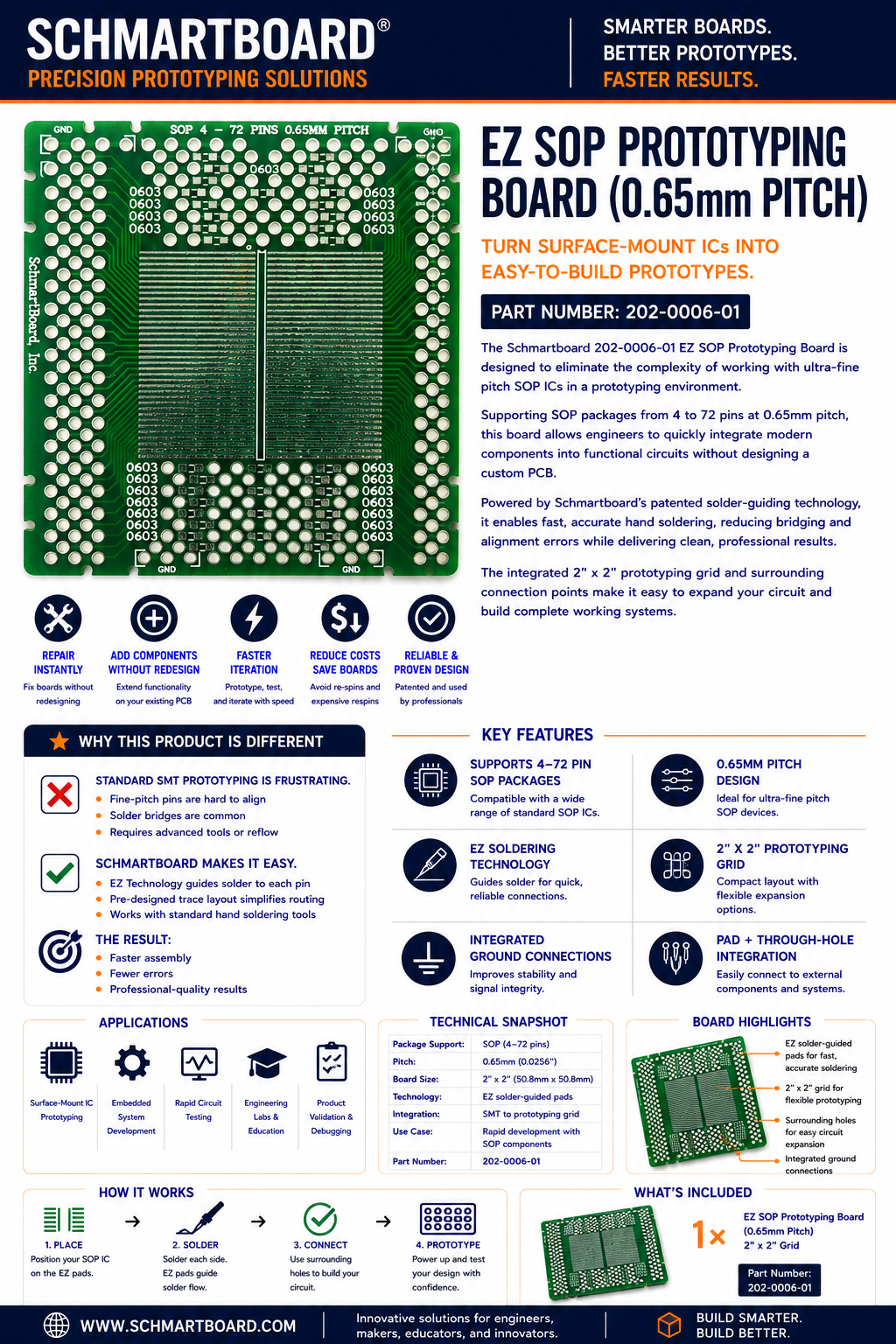

Schmartboard|ez SOP, 4 - 72 Pins 0.65mm Pitch, 2" X 2" Grid (202-0006-01)

The 202-0006-01 supports up to 72 pins SO, SOP, QSOP, SSOP, TSSOP, and PSSOP package ICs with 0.65mm pitch.

It also supports 37 pieces of 0603 package and some through hole passive components.

This product utilizes the "EZ" technology to assure fast, easy, and flawless hand soldering.

The GND (ground) busses (upper left/right corner and lower center) on the front of the board are electrically connected to each other and to a single ground plane on the back.

The back of the board is a copper GND plane.  There is a ground plane pad for each IC pin designed to accommodate 0603 footprint for easy installation of a decoupling capacitor or other part.

The SchmartBoard EZ SOP-4 to SOP-72 Pins board is designed to simplify prototyping and integration of small-outline packages (SOP) with pin counts from SOP-4 to SOP-72. Featuring a 0.8mm pitch and a convenient 2” x 2” grid, this board offers an easy solution for working with surface-mount devices. Ideal for engineers, hobbyists, and makers, this board allows for faster and more efficient development and testing of your designs.

Key Features:

• Supports SOP-4 to SOP-72 Pins: This board accommodates a wide range of small-outline packages (SOP), from SOP-4 to SOP-72, providing maximum flexibility in component selection.
• 0.8mm Pitch: The 0.8mm pitch is perfect for smaller surface-mount devices, ensuring compatibility with a broad array of ICs, transistors, drivers, and other electronic components.
• EZ Technology for Easy Soldering: SchmartBoard’s EZ Technology simplifies the surface-mount soldering process, allowing users of all experience levels to work with components easily, without the need for specialized tools or techniques.
• 2” x 2” Grid: The 2” x 2” grid layout provides an organized and efficient platform for prototyping, making it easy to work with multiple components while keeping your design neat and manageable.
• Versatile Applications: Ideal for use in consumer electronics, automotive, telecommunications, medical devices, and industrial applications, this board supports a wide range of prototyping needs.
• Durable and Reliable: Constructed from high-quality materials, the board is built for long-lasting durability, ensuring reliable performance through repeated soldering and testing cycles.

The SchmartBoard EZ SOP-4 to SOP-72 Pins board is perfect for those needing to prototype and test surface-mount circuits with SOP packages. Whether you’re a hobbyist building custom circuits or a professional working on complex prototypes, this board simplifies the process, allowing you to get results quickly and efficiently.

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.
