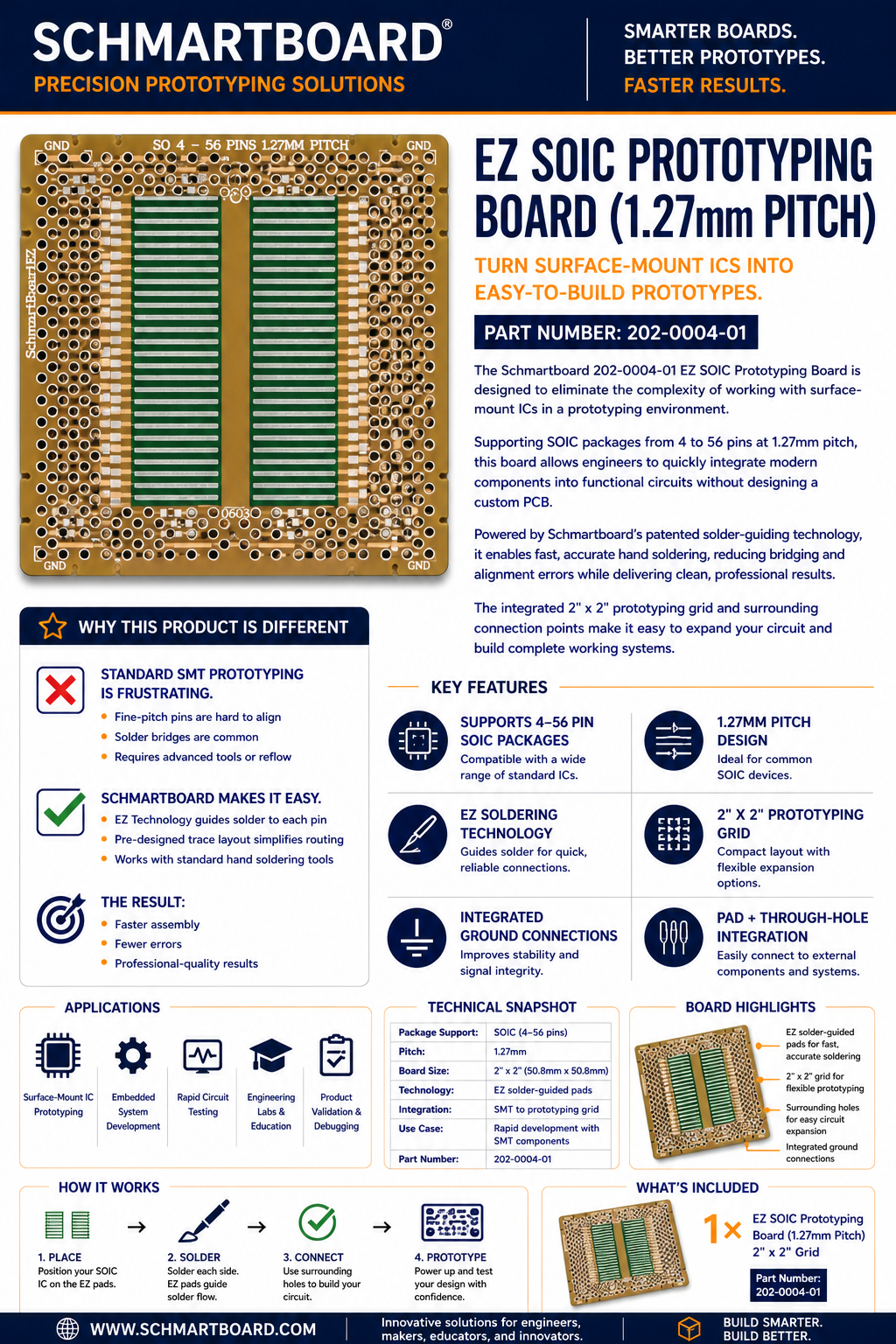

Schmartboard|ez SO, 4 - 56 Pins 1.27mm Pitch, 2" X 2" Grid (202-0004-01)

The 202-0004-01 is the perfect solution for 1.27mm Pitch SOIC packages.

It supports up to a 56 pin SO, SOP, QSOP, SSOP, TSSOP, PSSOP package IC with a 1.27mm (0.050") pitch.  20 pieces of 0603 package and some through hole passive components are also supported.

The SchmartBoard EZ SO-4 to SO-56 Pins board is designed to simplify the prototyping and integration of small-outline (SO) packages with pin counts ranging from SO-4 to SO-56. With a 1.27mm pitch and a convenient 2” x 2” grid, this board makes it easier than ever to work with surface-mount components, allowing for faster and more efficient circuit design, testing, and development.

Key Features:

• Supports SO-4 to SO-56 Pins: Designed to accommodate a wide range of small-outline (SO) packages, from SO-4 to SO-56, offering flexibility for a variety of components.
• 1.27mm Pitch: The 1.27mm pitch is a common standard for surface-mount components, ensuring compatibility with a wide range of ICs, transistors, and other electronic devices.
• EZ Technology for Easy Soldering: Features SchmartBoard's EZ Technology, which simplifies the soldering process, making it accessible to users of all skill levels. No specialized equipment required.
• 2” x 2” Grid: The 2” x 2” grid layout ensures an efficient use of space, while providing room for multiple components, allowing for organized and manageable prototypes.
• Versatile Applications: Perfect for designing, testing, and prototyping circuits for consumer electronics, automotive, telecommunication, and industrial applications.
• Durable and Reliable: Constructed with high-quality materials, the board ensures long-lasting durability, making it a dependable solution for prototyping and final designs.

The SchmartBoard EZ SO-4 to SO-56 Pins board is the ideal choice for engineers, makers, and hobbyists working with small-outline surface-mount packages. It allows for rapid prototyping, simple integration, and easy testing of your designs with SO packages, making it a must-have tool for any electronics project.

Get your designs up and running quickly with SchmartBoard—prototyping SO packages made easy!

The GND (ground) busses (upper left/right corner and lower left/right corner) on the front of the board are electrically connected to each other and to a single ground plane on the back.

The back of the board is a copper GND plane.  There is a ground plane pad for each IC pin designed to accommodate 0603 footprint for easy installation of a decoupling capacitor or other part.

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It's made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard's "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

Would you prefer that we solder the parts for you?  Click Here for details!
