Schmartboard 1.8 Volt Populated Single Voltage Regulated Power Module (710-0003-02)

Schmartboard 1.8 Volt Populated Single Voltage Regulated Power Module

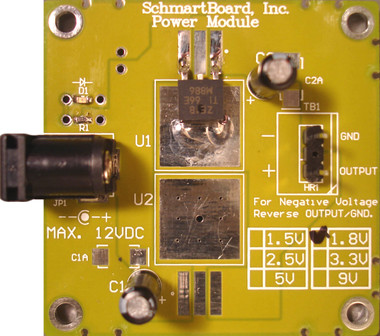

Easily add voltage to your circuit. 1.8V Power Single Voltage Regulated Module: This is a highly stable linear-low-drop voltage regulator. With 12V DC input, output is 1.8V and provide up to 800mA of output peak current. For Negative Voltage: Reverse Output and Ground.

The SchmartBoard 1.8V Populated Single Voltage Regulated Power Module (710-0003-02) is a fully assembled, compact, and reliable power supply solution designed to provide a stable 1.8V output from a wide range of input voltages. This power module is ideal for powering low-voltage electronic circuits, sensors, and devices that require a precise and consistent 1.8V power source. Whether you’re working on battery-powered applications, low-voltage circuits, or low-power embedded systems, this module offers a practical and efficient solution to your power needs.

Pre-populated and ready to use, this module eliminates the complexity of designing and building your own voltage regulation circuit. It is perfect for hobbyists, engineers, and students looking to simplify their power supply design and ensure reliable voltage regulation for their projects.

Key Features:

• Precise 1.8V Output: This power module provides a stable and regulated 1.8V output, ideal for low-power applications that require consistent voltage for operation.
• Wide Input Voltage Range: Designed to accept a broad input voltage range, this module is versatile and can be used with a variety of power sources, including battery-powered systems and higher-voltage supplies.
• Fully Populated and Ready to Use: The board comes pre-populated with all components, making it easy to integrate into your project without the need for assembly or complex setup.
• Compact and Efficient Design: With a compact form factor, this power module is perfect for space-constrained applications while maintaining high efficiency in voltage conversion.
• Durable and Reliable: Built with high-quality components, the module ensures long-lasting performance and stable operation in both prototyping and final applications.
• Ideal for Low-Power Systems: This module is an excellent choice for powering low-voltage devices, such as sensors, microcontrollers, embedded systems, and more, ensuring that your circuits receive the proper voltage for optimal performance.
• Easy Integration: The module is designed to be easy to integrate into your designs, saving you time on power supply development and helping you focus on other parts of your project.

The SchmartBoard 1.8V Populated Single Voltage Regulated Power Module is the perfect solution for projects requiring a stable, reliable 1.8V power source. Whether you're building low-power devices, sensors, or embedded systems, this pre-assembled power module ensures seamless power delivery without the hassle of designing your own regulation circuit.

Streamline your power design and ensure consistent, reliable voltage with the SchmartBoard 1.8V Regulated Power Module.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard's "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

Brochure

Schematic
BOM
Product Notes

Mechanical Dimensions
