Schmartboard 2x20 Right Angle Female Headers (Qty 3)

Reliable. Precise. Built for Real Prototyping.

When your project depends on clean, consistent connections, the quality of your headers matters. These 2x20 right angle female headers are designed to deliver dependable performance for prototyping, development, and production environments.

Product Overview

This pack includes three (3) dual-row, right-angle female headers with a standard 0.1" (2.54mm) pitch, providing a total of 40 connections per header.

The right-angle configuration allows for low-profile, horizontal board connections, making them ideal for compact designs and tight enclosures.

Right-angle headers are widely used in PCB applications where space is limited and connections need to exit parallel to the board surface.

Key Features

✔ 2x20 Dual Row Configuration
40 total pins for high-density connections and versatile interfacing.

✔ Standard 2.54mm Pitch
Fully compatible with:

• Breadboards
• Raspberry Pi GPIO layouts
• Arduino and development boards
• Standard prototyping PCBs

✔ Right Angle Design (90°)
Perfect for:

• Space-constrained enclosures
• Edge-mounted boards
• Clean cable routing

✔ Reliable Electrical Connections
Designed for consistent signal transfer and long-term durability.

✔ Breakaway-Friendly Format
Easily modify to the exact pin count needed for your application.

 Why It Matters

A header might look like a simple component, but it plays a critical role in your system. Poor-quality headers can lead to:

• Intermittent connections
• Signal degradation
• Mechanical failure over time

Schmartboard headers are selected to ensure consistent alignment, solid contact, and dependable performance—whether you’re prototyping or deploying.

Typical Applications

• Raspberry Pi GPIO connections
• Embedded system development
• Custom PCB interfacing
• Prototyping and testing setups
• Instrumentation and control systems

These connectors are commonly used as reliable PCB interfaces and expansion points in electronics projects.

Specifications

• Configuration: 2 x 20 (40 pins)
• Pitch: 2.54mm (0.1”)
• Orientation: Right Angle (90°)
• Type: Female Header
• Rows: Dual Row
• Quantity: 3 Headers

 Built for Engineers

Whether you're building a prototype on your bench or refining a production design, these headers provide the precision and reliability you need to move fast and build with confidence.

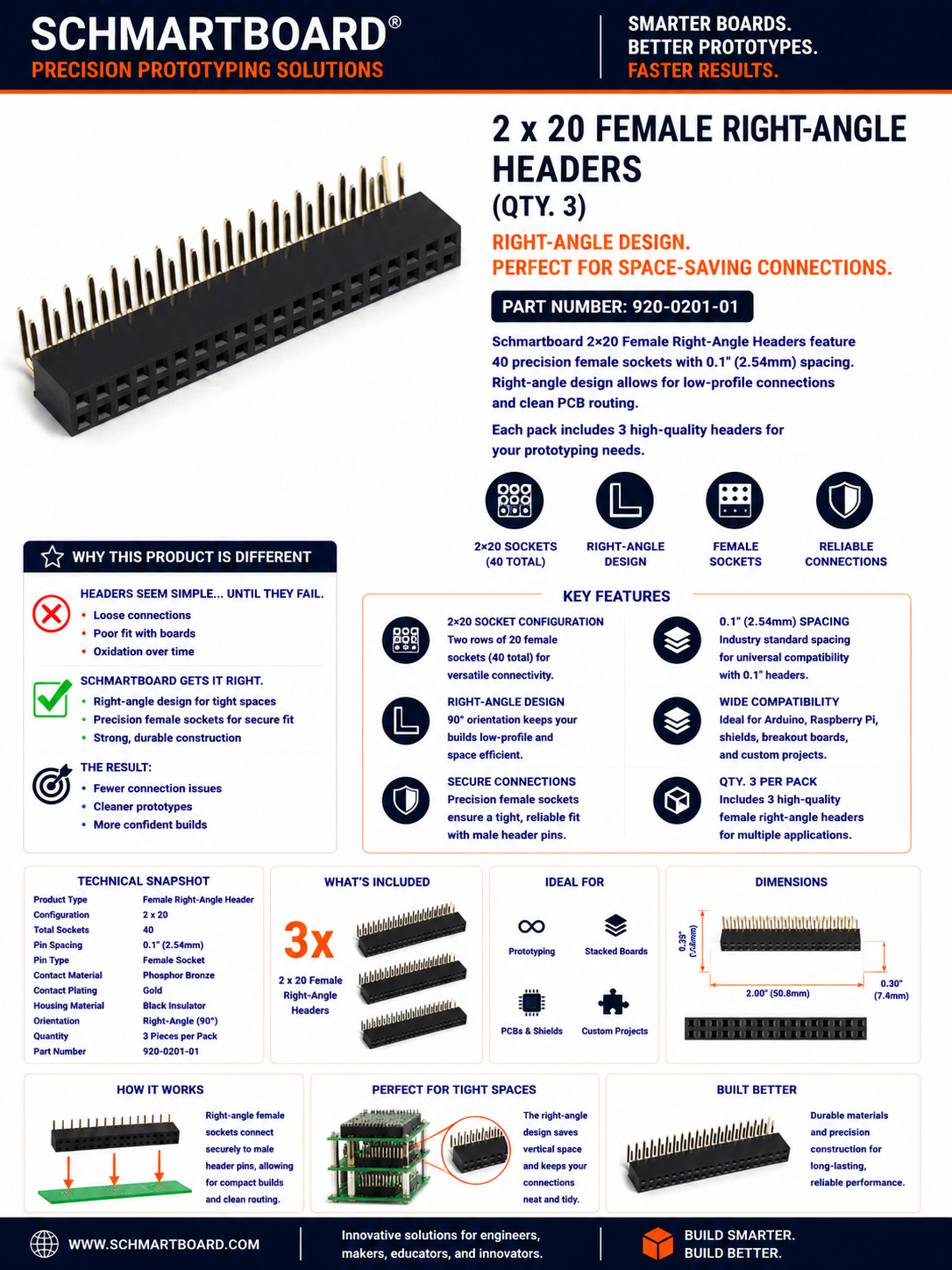

Brochure
