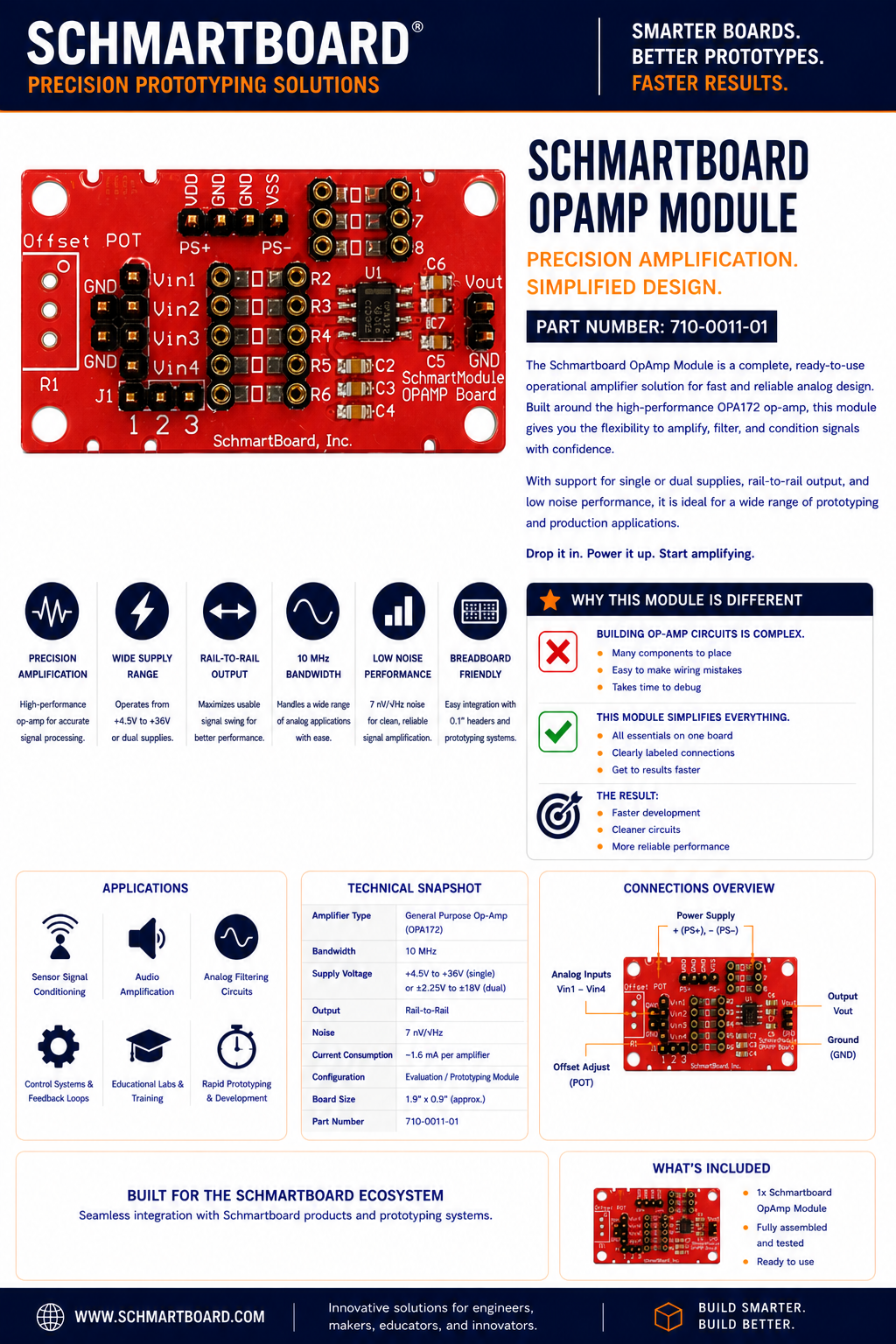

SchmartBoard OpAmp (710-0011-01)

SchmartBoard OPAMP (710-0011-01)

The Schmartboard OpAmp Board makes it very easy to assemble, and experiment with, op amp circuits.

It uses an OPA172 operational amplifier whose main features make it very suitable for experimenting.

The SchmartBoard OPAMP (710-0011-01) is a versatile operational amplifier (op-amp) module designed to simplify the integration of op-amps into your electronic projects. Whether you're developing audio circuits, signal processing applications, or sensor interfaces, this module provides a reliable solution for amplifying signals with precision. Ideal for hobbyists, engineers, and students, the SchmartBoard OPAMP is perfect for a wide range of applications requiring analog signal conditioning and amplification.

With easy-to-use connectors and a simplified design, this module allows for quick prototyping and efficient experimentation with op-amps in a variety of configurations.

Key Features:

• Versatile Op-Amp Module: The SchmartBoard OPAMP module provides all the necessary connections for utilizing an operational amplifier in your projects, offering signal amplification and analog processing.
• Ideal for Signal Processing: Perfect for applications such as audio amplification, sensor signal conditioning, feedback systems, and analog-to-digital conversion.
• Easy to Integrate: Designed for quick and easy integration into prototypes, this module simplifies the process of using op-amps in your circuit designs, saving time and effort in the development process.
• Compact Design: The module features a space-efficient layout, making it suitable for use in various projects and projects with limited space.
• Durable and Reliable: Made with high-quality materials, the SchmartBoard OPAMP is built to withstand repeated use, ensuring long-term reliability for prototyping and experimentation.
• Educational Value: Great for students and educators, this module offers hands-on experience with operational amplifiers, allowing users to experiment with op-amp circuits in a practical setting.

The SchmartBoard OPAMP is the ideal tool for anyone looking to integrate signal amplification into their projects. Whether you're designing audio circuits, control systems, or signal processing applications, this module provides an easy, reliable solution for your prototyping needs.

Streamline your design process and experiment with operational amplifiers effortlessly with the SchmartBoard OPAMP.

These features are:

• Wide Supply Range: +4.5 V to +36 V, ±2.25 V to ±18 V

• Low Offset Voltage: ±0.2 mV

• Gain Bandwidth: 10 MHz

• Input Range Includes the Negative Supply

• Input Range Operates to Positive Supply

• Rail-to-Rail Output

• Low Noise: 7 nV/√Hz

• High Common-Mode Rejection: 120 dB

• Low Input Bias Current: ±8 pA

• Low Quiescent Current: 1.6mA per Amplifier

• Comes bundled with some components for your convenience(see Bill of Materials)

The OPAMP Board can be operated with single or dual power supplies and the 10MHz bandwidth makes is sufficient for most experimenter’s circuits.

Application Notes

Bill of Materials

Brochure

Mechanical Specifications

Schematic

OpAmp Simulation Files(zip)

OpAmp Support Files(zip)

Schmartboards' also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard's "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.
