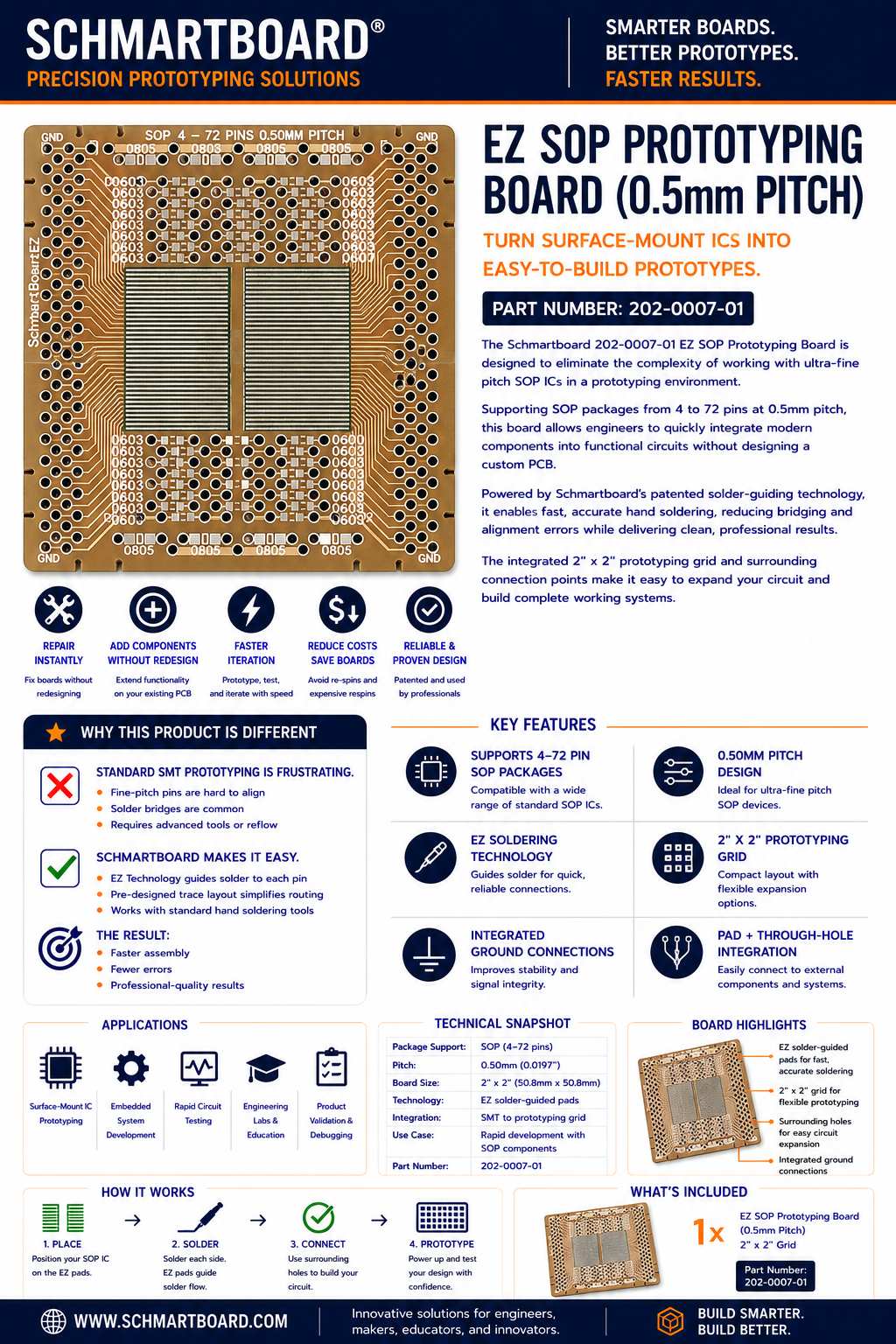

Schmartboard|ez SOP, 4 - 72 Pins 0.5mm Pitch, 2" X 2" Grid (202-0007-01)

The 202-0007-01 supports up to 72 pins for SO, SOP, QSOP, SSOP, TSSOP, and PSSOP package ICs with a 0.5mm pitch.

It also supports 43 pieces of 0603 package, 8 pieces of 0805 package and some through hole passive components.

This product utilizes the "EZ" technology to assure fast, easy, and flawless hand soldering.

The GND (ground) busses (upper left/right corner) on the front of the board are electrically connected to each other and to a single ground plane on the back.

The back of the board is a copper GND plane.  There is a ground plane pad for each IC pin designed to accommodate 0603 footprint for easy installation of a decoupling capacitor or other part.

The SchmartBoard EZ SOP-4 to SOP-72 Pins board is designed for easy prototyping and integration of small-outline packages (SOP), with pin counts from SOP-4 to SOP-72. Featuring a 0.5mm pitch and a practical 2” x 2” grid, this board is perfect for working with high-density, small-form-factor surface-mount components. Ideal for both novice and experienced designers, the EZ SOP board simplifies the soldering process with SchmartBoard’s EZ Technology, making it accessible for all skill levels.

Key Features:

• Supports SOP-4 to SOP-72 Pins: Accommodates a broad range of small-outline packages (SOP) from SOP-4 to SOP-72, giving you flexibility to integrate various components with ease.
• 0.5mm Pitch: The 0.5mm pitch allows for compatibility with smaller, high-density surface-mount devices, making this board ideal for modern, compact electronics like ICs, transistors, and controllers.
• EZ Technology for Effortless Soldering: SchmartBoard’s proprietary EZ Technology makes surface-mount soldering straightforward, even for those without advanced soldering skills. No special tools or experience are needed—just solder and go.
• 2” x 2” Grid: The 2” x 2” grid layout is optimized for organizing components in a neat and efficient manner, making it easy to create compact, high-performance prototypes.
• Versatile Applications: Ideal for consumer electronics, automotive electronics, telecommunications, and medical devices, this board is designed for use across a wide range of applications.
• Durable and Reliable: Built with high-quality materials, the board ensures durability and longevity, allowing for reliable performance through multiple soldering cycles.

The SchmartBoard EZ SOP-4 to SOP-72 Pins board is a must-have tool for anyone working with SOP surface-mount packages in a 0.5mm pitch. Whether you're a hobbyist building custom electronics or a professional prototyping advanced systems, this board simplifies the process of integrating and testing components, saving you time and effort.

Streamline your prototyping with SchmartBoard—prototyping SOP packages has never been easier.

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

Would you prefer that we solder the parts for you?  Click Here for details!
