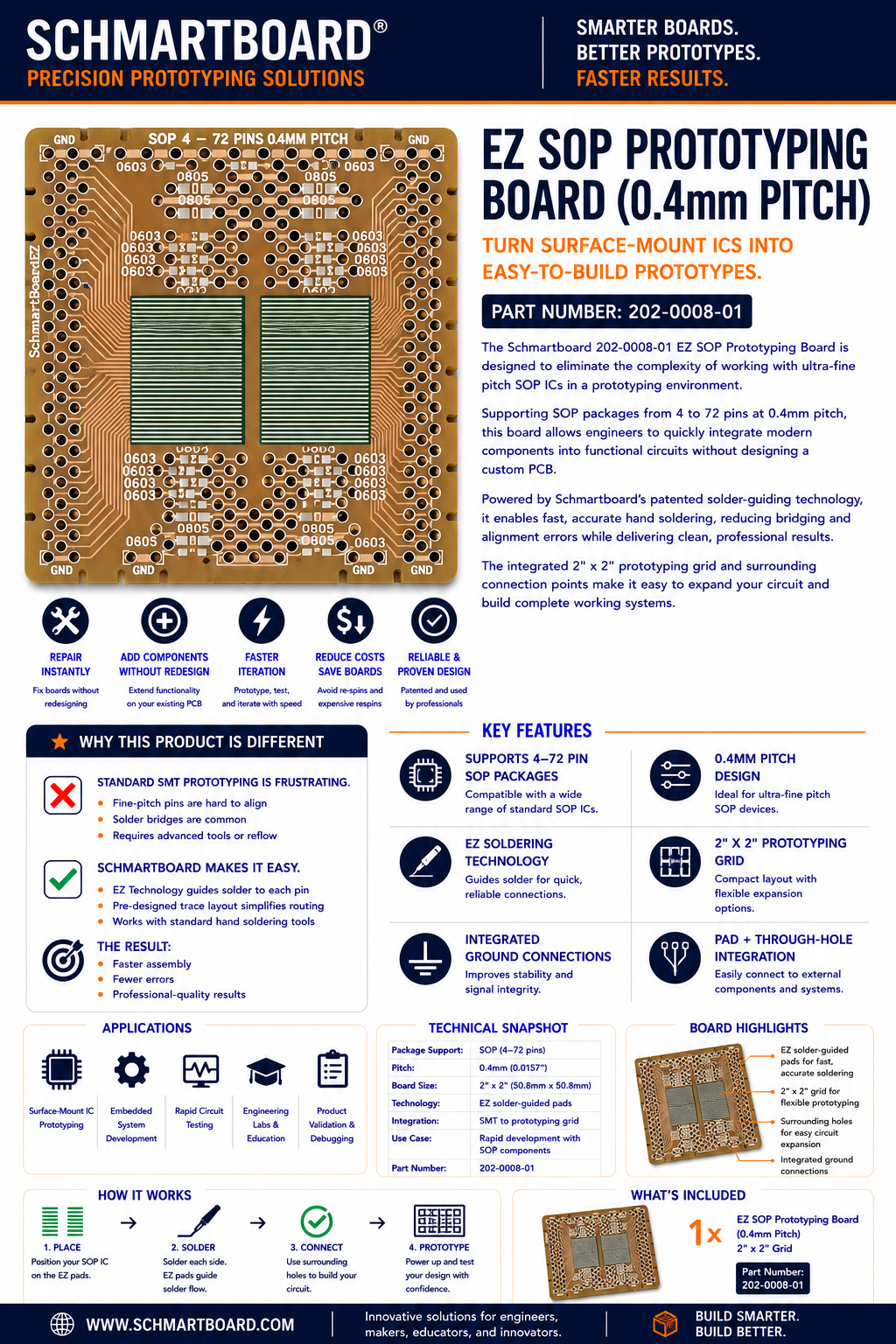

Schmartboard|ez SOP, 4 - 72 Pins 0.4mm Pitch, 2" X 2" Grid (202-0008-01)

The 202-0008-01 is the perfect solution for .4mm Pitch SOIC  packages.

It supports up to 72 pins with a 0.4mm pitch.  It also supports 23 pieces of 0603 package, 10 pieces of 0805 package and some through hole passive components.

This product utilizes the "EZ" technology to assure fast, easy, and flawless hand soldering.

The GND (ground) busses (upper left/right corner and lower center) on the front of the board are electrically connected to each other and to a single ground plane on the back.

The back of the board is a copper GND plane.  There is a ground plane pad for each IC pin designed to accommodate 0603 footprint for easy installation of a decoupling capacitor or other part.

The SchmartBoard EZ SOP-4 to SOP-72 Pins board is specifically designed to facilitate easy prototyping and integration of small-outline packages (SOP) with pin counts ranging from SOP-4 to SOP-72. Featuring a 0.4mm pitch and a convenient 2” x 2” grid, this board provides a streamlined solution for working with ultra-compact, high-density surface-mount components, making it an essential tool for engineers, makers, and hobbyists.

Key Features:

• Supports SOP-4 to SOP-72 Pins: This board accommodates a wide range of small-outline packages (SOP), from SOP-4 to SOP-72, providing flexibility in component selection for various designs.
• 0.4mm Pitch: The 0.4mm pitch allows for compatibility with extremely small, high-density surface-mount components, making this board ideal for advanced circuits with compact, modern devices like ICs, transistors, drivers, and controllers.
• EZ Technology for Easy Soldering: SchmartBoard’s EZ Technology simplifies the soldering process, enabling even beginners to work with surface-mount components without the need for specialized equipment or advanced skills.
• 2” x 2” Grid: The 2” x 2” grid layout ensures efficient use of space while maintaining an organized and manageable workspace for your prototypes. The grid design makes it easy to arrange components precisely and create clean, effective designs.
• Versatile Applications: Ideal for use in a wide range of applications, including consumer electronics, automotive systems, telecommunications, medical devices, and industrial electronics.
• Durable and Reliable: Built with high-quality materials, the board offers durability and long-lasting performance through multiple soldering and testing cycles.

The SchmartBoard EZ SOP-4 to SOP-72 Pins board is perfect for those working with SOP packages in a 0.4mm pitch configuration. Whether you are creating custom electronics, prototyping advanced systems, or testing cutting-edge components, this board simplifies the process and helps speed up development, so you can focus on your designs.

Prototyping with SOP surface-mount packages has never been easier—accelerate your project development with SchmartBoard!

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

Would you prefer that we solder the parts for you?  Click Here for details!
