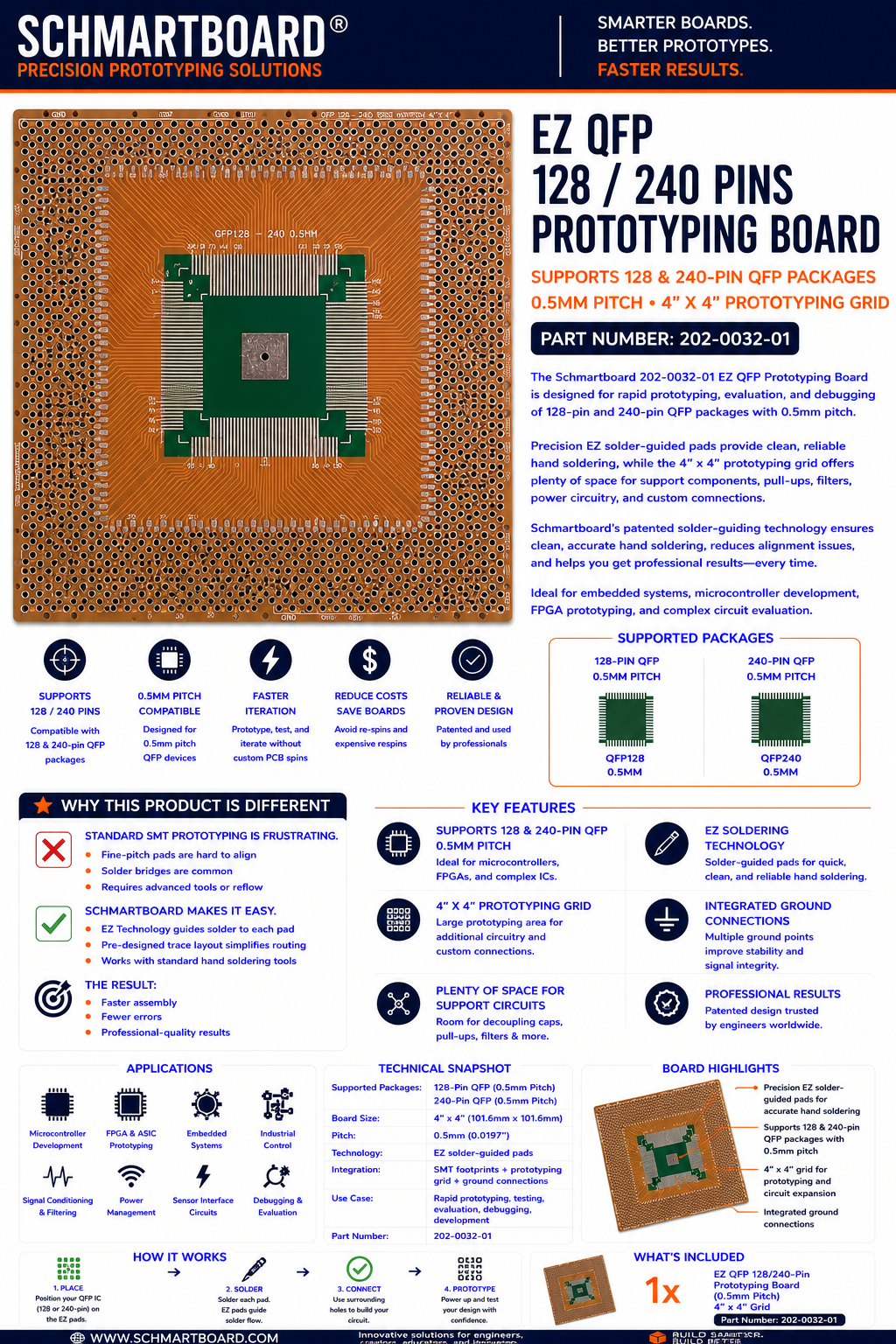

Schmartboard|ez QFP, 128 - 240 Pins 0.5mm Pitch, 4" X 4" Grid (202-0032-01)

The 202-0032-01 supports QFP, TQFP and PQFP packages from 128 - 240 Pins with a 0.5mm Pitch.

It also supports 26 pieces of 0603 package and some through-hole passive components.

This 4" x 4" product utilizes the "EZ" technology to assure fast, easy, and flawless hand soldering.

The GND (ground) busses (upper left to center and lower right to center) on the front of the board are electrically connected to each other and to a single ground plane on the back.

The back of the board is a copper GND plane.  There is a ground plane pad for each IC pin designed to accommodate 0603 footprint for easy installation of a decoupling capacitor or other part.

The SchmartBoard EZ QFP-128/240 Pins board is designed to simplify the prototyping of Quad Flat Package (QFP) components with 0.5mm pitch. This board supports both QFP-128 and QFP-240 ICs, making it ideal for integrating high-performance microcontrollers, FPGA chips, and advanced SoC devices into your designs. Thanks to SchmartBoard’s patented EZ Technology, you can easily solder these complex, high-pin-count components without requiring specialized tools or advanced skills—perfect for engineers, makers, and hobbyists.

Key Features:

• Supports QFP-128 and QFP-240 Pins with 0.5mm Pitch: Tailored for QFP-128 and QFP-240 components with a 0.5mm pitch, ideal for integrating large-scale ICs, microprocessors, and complex SoC chips into your project.
• EZ Technology for Simple Soldering: SchmartBoard’s EZ Technology makes soldering large, fine-pitch QFP components easy and efficient, eliminating the need for specialized equipment or intricate soldering techniques.
• 4” x 4” Grid Layout: The spacious 4” x 4” grid offers a clear, organized workspace for placing and routing the high-pin-count components, helping streamline your prototyping process.
• Versatile Applications: Perfect for consumer electronics, telecommunications, automotive electronics, medical devices, industrial applications, and more. Whether you're prototyping cutting-edge technology or testing custom designs, this board ensures easy integration of high-density QFP components.
• Durable and Reliable: Constructed from high-quality materials, this board is built to withstand repeated use, providing long-lasting durability and performance for ongoing prototyping projects.
• User-Friendly and Efficient: Whether you're working on custom circuits, developing new products, or testing out designs, this board offers the flexibility and simplicity you need for fast and accurate prototyping.

The SchmartBoard EZ QFP-128/240 Pins, 0.5mm Pitch board is an indispensable tool for those integrating high-density QFP components. With EZ Technology, it ensures you can solder even the most complex components with ease, accelerating your prototyping and reducing the time spent on difficult soldering techniques.

Simplify your QFP prototyping process and ensure precise, reliable integration with SchmartBoard EZ Technology—designed for efficiency and ease.

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboards and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

 Would you prefer that we solder the parts for you?  Click Here for details!
