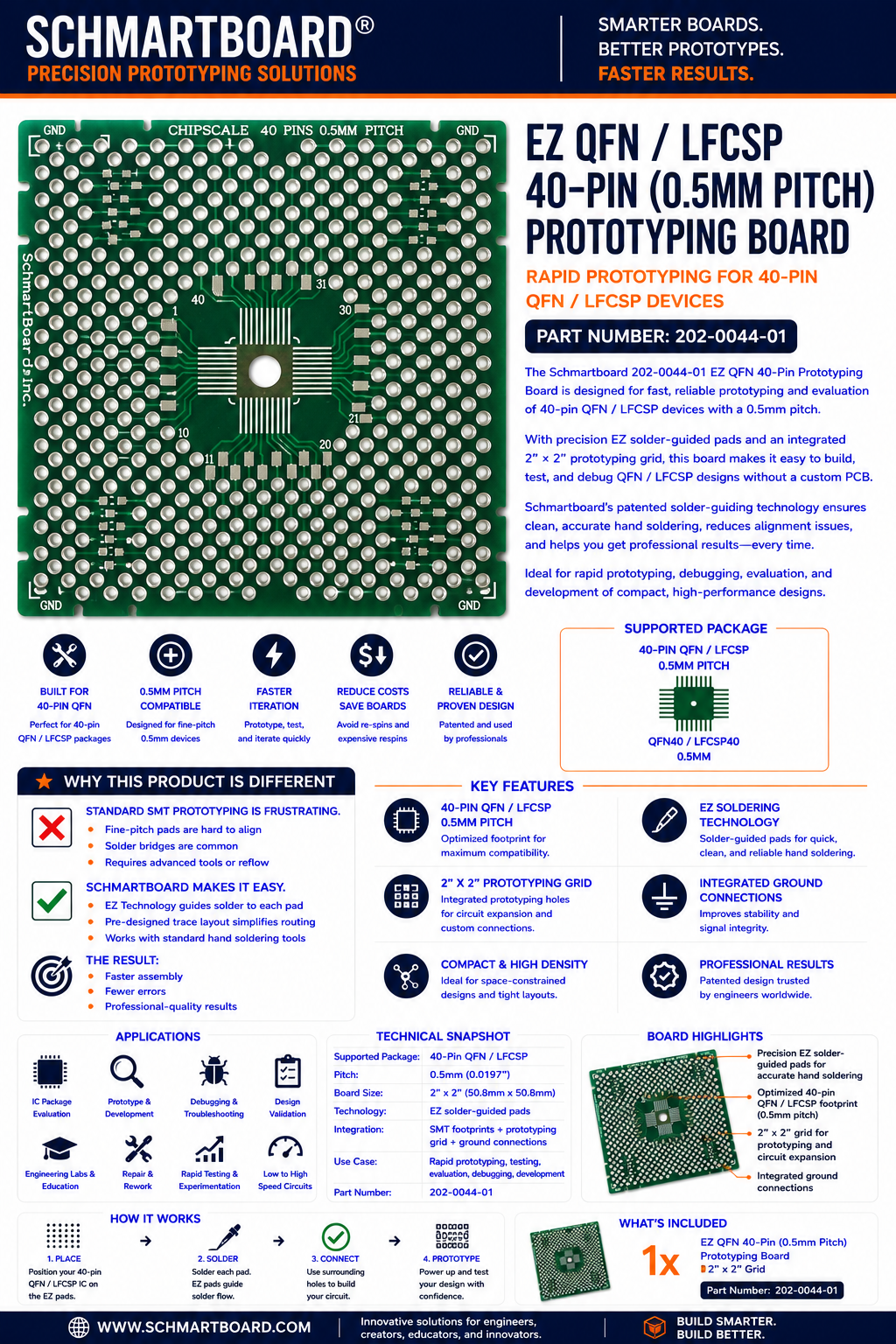

Schmartboard|ez QFN, 40 Pins 0.5mm Pitch, 2" x 2" Grid (202-0044-01)

The 202-0044-01 supports a 40 Pin QFN with a 0.5mm Pitch.

The board also support 24 pieces of 0603 package and through hole components.

This product utilizes the "EZ" technology to assure fast, easy, and flawless hand soldering.

The GND (ground) busses (upper left/right corner and lower left/right corner) on the front of the board are electrically connected to each other and to a single ground plane on the back.

The back of the board is a copper GND plane.  There is a ground plane pad for each IC pin designed to accommodate 0603 footprint for easy installation of a decoupling capacitor or other part.

The SchmartBoard EZ QFN-40 Pins board is specifically designed to simplify the integration and prototyping of Quad Flat No-lead (QFN) components with a 0.5mm pitch. Supporting QFN-40 components, this board provides an efficient, easy-to-use platform for high-density surface-mount components, ideal for engineers, hobbyists, and makers. With SchmartBoard’s patented EZ Technology, you can easily solder small-pitch QFN components without the need for specialized equipment or advanced soldering skills.

Key Features:

• Supports QFN-40 Pins with 0.5mm Pitch: This board is tailored for QFN-40 components featuring a 0.5mm pitch, commonly used in high-performance microcontrollers, memory chips, and logic ICs.
• EZ Technology for Easy Soldering: SchmartBoard’s EZ Technology eliminates the need for complex soldering tools, making it easy to integrate small-pitch QFN components. Achieve reliable soldering with minimal effort, even for intricate, high-pin-count packages.
• 2” x 2” Grid Layout: The 2” x 2” grid provides a compact, organized workspace, ensuring efficient component placement and routing. It’s designed to help you keep your work area neat and your prototyping process streamlined.
• Versatile Applications: Perfect for a range of industries, including consumer electronics, telecommunications, automotive systems, medical devices, and industrial applications.
• Durable and Reliable: Constructed from high-quality materials, this board is built to withstand repeated use, offering durability and reliable performance across multiple prototyping cycles.
• User-Friendly and Flexible: Whether you're working on a new product design, testing a custom circuit, or prototyping a complex system, this board offers the flexibility and ease needed for quick and efficient development.

The SchmartBoard EZ QFN-40 Pins, 0.5mm Pitch board is an essential tool for integrating QFN-40 components into your designs with ease and precision. With its EZ Technology, you can simplify the soldering process, reducing complexity and improving the speed of your prototyping.

Make QFN-40 component integration faster and more reliable with SchmartBoard EZ Technology—designed for simplicity and accuracy.

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboards and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

 Would you prefer that we solder the parts for you?  Click Here for details!
