Custom Schmartboards

Do you have a need for SchmartBoard|ez technology that can not be addressed by our current standard prototyping board selection? Creating a custom board may be the solution for you.

**As a reference, SchmartBoard can create a 2" x 2", two Layer custom prototyping board with EZ technology in most cases for a $350 one time NRE(non-recurring engineering cost), plus $10 per board (40 minimum).

To discuss your needs in more detail or to get a quote, send an e-mail to info@schmartboard.com with whatever information you can give us.

If SchmartBoard does not currently support a particular component type in the pitch you require  we may be able to expedite this generic SchmartBoard for you. As a reference, expect to pay $600 to recieve 40 boards (at $6 per board in 204- product line format).  We can then produce that generic SchmartBoard|ez immediately.  Contact us for more details.

**The example above was with a PCB Layout supplied by the customer. If SchmartBoard creates your design or PCB layout, additional costs may be incurred.

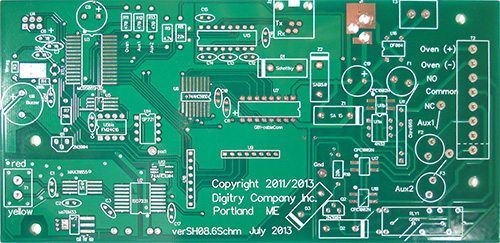

Example of a Custom PCB with Schmartboard|ez technology:
