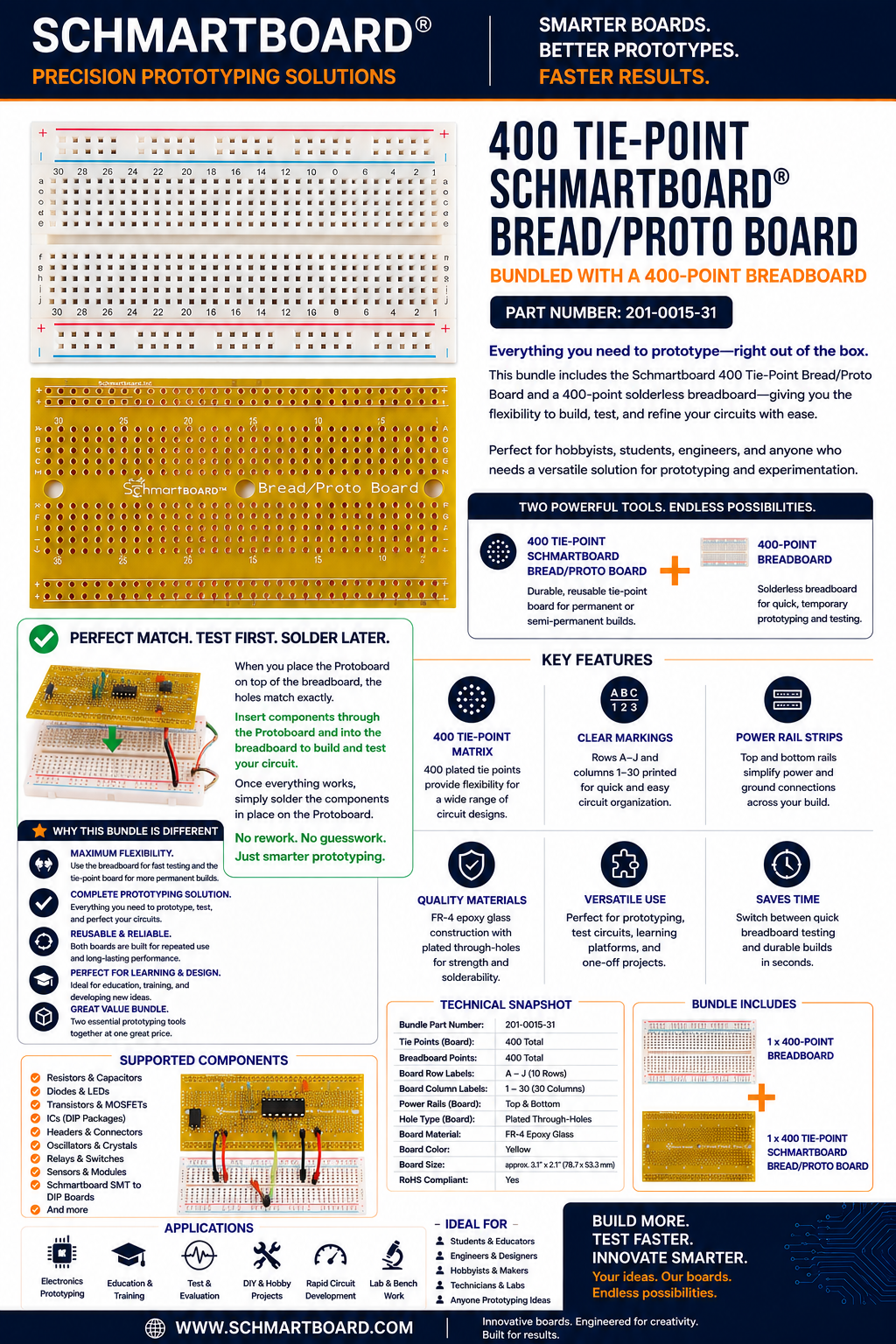

400 Tie Point Schmartboard Bread/Proto Board Bundled with a 400 Point Breadboard (201-0015-31)

SchmartBoard 400 Tie-Point Bread/Proto Board + 400-Point Breadboard Bundle

Schmartboard Bread/Proto Boards’ are laid out exactly like a standard breadboard. Have you ever had to move a circuit to a prototyping board after first laying it out on a breadboard? Not Fun! With this board you can either remove the parts from a standard 400 Tie Breadboard one at a time and solder them onto this board, or you can lay this on top of your breadboard, place parts through this board and into your breadboard and then when ready, solder the components from the top to this board before removing the board and component leads from the breadboard thus saving the step of transferring the components from the breadboard to this board. This bundle includes the matching breadboard for your convenience.

Accelerate your prototyping process with this versatile bundle that combines the durability of a SchmartBoard Bread/Proto Board with the flexibility of a standard 400-point breadboard. This combo is perfect for engineers, makers, and students who want to transition seamlessly from breadboarding to soldered prototyping without having to redesign or reconfigure their circuits.

Key Features:

• 400 Tie-Point Bread/Proto Board:

  • Durable prototyping board for permanent soldered circuits.
  • Standard 0.1” spacing ensures compatibility with through-hole components and connectors.
  • High-quality construction for long-lasting, reliable use.

• 400-Point Breadboard:

  • Solderless design for quick and easy circuit assembly.
  • Ideal for testing and refining circuit layouts before soldering.
  • Compact and reusable, perfect for small to medium-sized projects.

Why Choose This Bundle?

• Streamlined Prototyping: Build and test your circuit on the breadboard, then transfer it directly to the proto board for a permanent solution.
• Cost-Effective: Get two essential tools in one bundle, saving time and money.
• Flexible and Portable: Compact design makes it ideal for both bench work and on-the-go projects.

This bundle is the perfect combination for anyone looking to quickly develop, test, and finalize their electronic designs with precision and ease.

Simplify your workflow and prototype smarter with SchmartBoard!

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard's "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.
