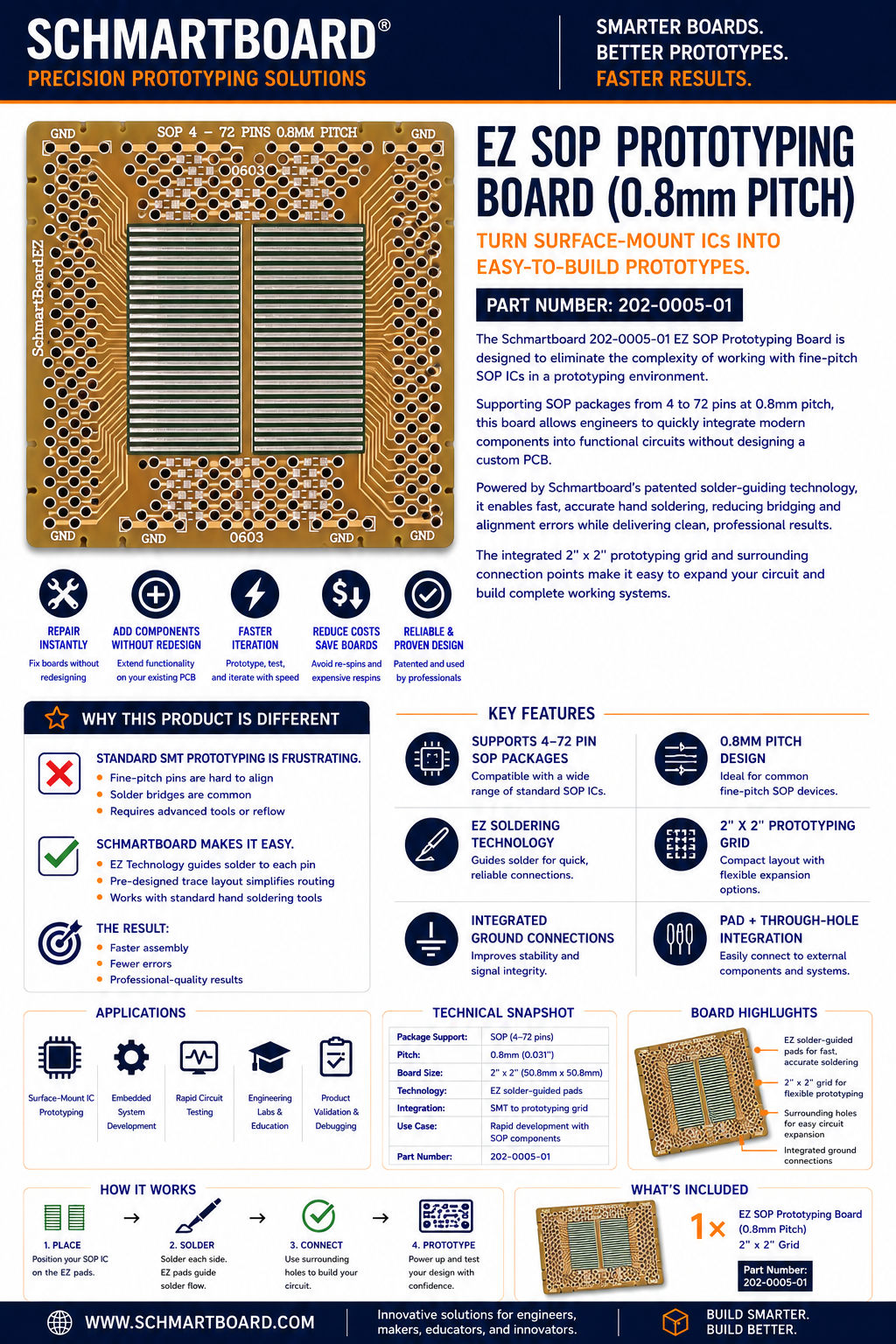

Schmartboard|ez SOP, 4 - 72 Pins 0.8mm Pitch, 2" X 2" Grid (202-0005-01)

Hover over image to zoom

  • Image 1
  • Image 2
Schmartboard
$10.00
SKU:
202-0005-01

 Product Description

The 202-0005-01 supports up to 72 pins SO, SOP, QSOP, SSOP, TSSOP, and PSSOP package ICs with 0.8mm pitch.  It also supports 30 pieces of 0603 package and some through hole passive components.

This product utilizes the "EZ" technology to assure fast, easy, and flawless hand soldering.

The GND (ground) busses (upper left/right corner and lower center) on the front of the board are electrically connected to each other and to a single ground plane on the back.

The back of the board is a copper GND plane.  There is a ground plane pad for each IC pin designed to accommodate 0603 footprint for easy installation of a decoupling capacitor or other part.

schmartboard-ez.jpgOnce upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.







Detailed Diagram

Mechanical Specifications

Product Review 1

 Product Videos

Hand Soldering an SOIC Part with SchmartBoard|ez
  • Hand Soldering an SOIC Part with SchmartBoard|ez
    SchmartBoard makes it simple to hand solder SMT components. Y...
