Through Hole RJ11/45 and USB Connector Board with Type B USB Receptacle soldered on (201-0108-03)

SchmartBoard Through-Hole RJ11, RJ45, and USB Connector Board with Type-B USB Receptacle Soldered On (201-0108-03)

Supports 1 RJ11 or RJ45 connector and has 1 USB Type B connector pre-soldered on.

The SchmartBoard Through-Hole RJ11, RJ45, and USB Connector Board with a pre-soldered Type-B USB Receptacle is the ultimate solution for integrating multiple communication and data transfer interfaces into your projects. Whether you're building telecom systems, network equipment, or USB-powered devices, this connector board simplifies your designs and saves valuable setup time.

Key Features:

• Multi-Connector Design: Features RJ11 (telephone), RJ45 (Ethernet), and USB connectors, offering a versatile solution for various types of communication protocols in a single, compact module.
• Pre-Soldered Type-B USB Receptacle: Comes with a Type-B USB Receptacle already soldered onto the board, making it faster to prototype and integrate USB connections into your projects.
• Compact 0.5” x 2” Grid: Designed for efficient space use, making it easy to incorporate into your circuit designs without overwhelming your layout.
• Standard 0.1” Hole Spacing: Fully compatible with through-hole components, ensuring a smooth integration into breadboards, prototyping boards, and custom PCBs.
• Durable Build: Constructed from high-quality materials to ensure long-lasting reliability and performance, even after repeated soldering and use.
• Versatile Application: Perfect for a range of electronics projects requiring RJ11, RJ45, and USB Type-B connections, such as networking, telecom, and USB-powered devices.

The SchmartBoard Through-Hole RJ11, RJ45, and USB Connector Board with Type-B USB Receptacle pre-soldered offers a seamless, reliable, and efficient connection solution for your projects. Ideal for hobbyists, engineers, and developers who need quick and easy connectivity options.

Simplify your connections with SchmartBoard—efficiently integrate RJ11, RJ45, and USB Type-B into your electronics projects!

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard's "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

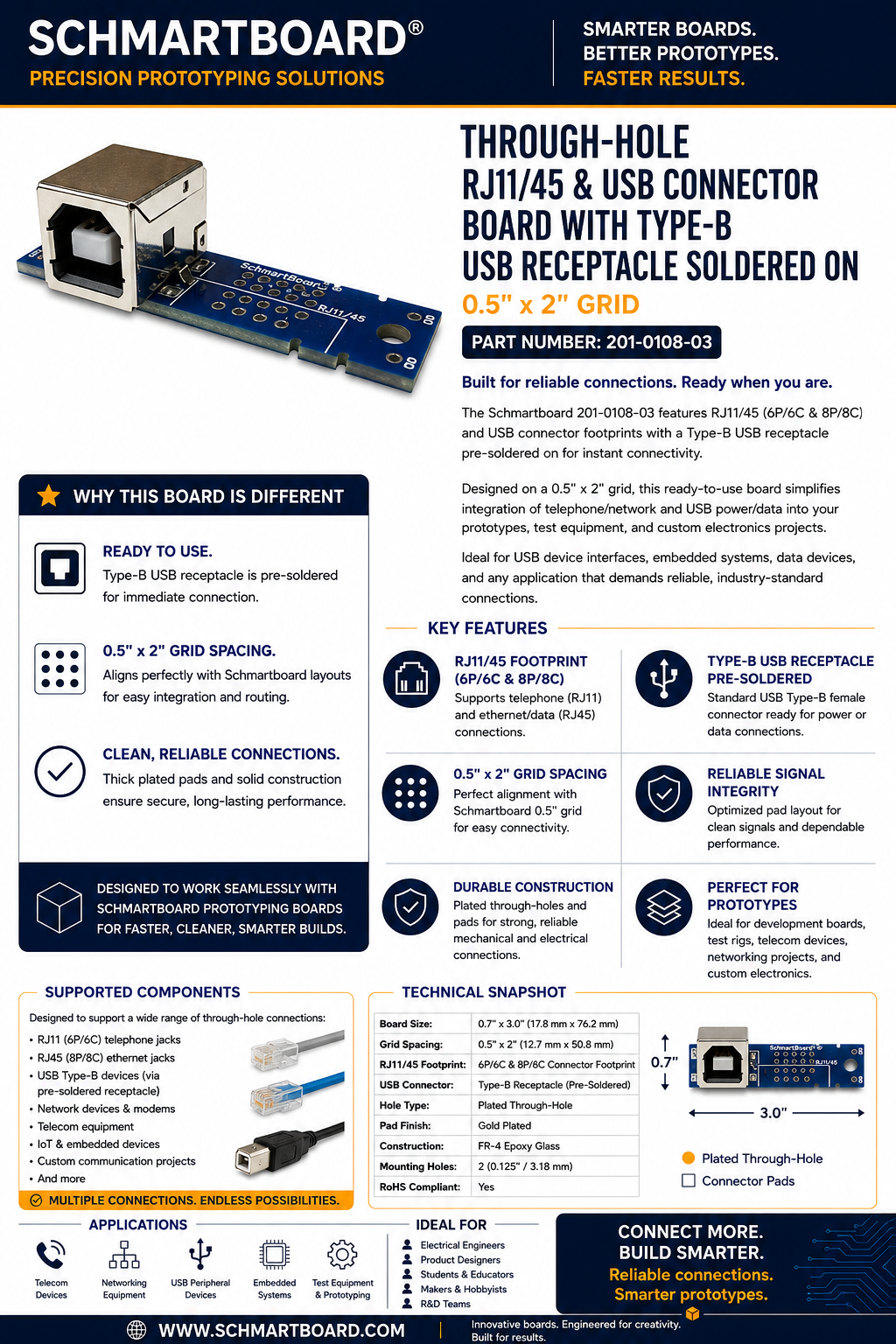

Brochure

Schmartboard uses P/N#95501-2641 as our RJ-11 design reference.
Schmartboard uses P/N# 95501-2881 as our RJ-45 design reference.

Detailed Diagram

Mechanical Specifications
