Through Hole RJ11/45 and USB Connector Board with Type A USB Receptacle soldered on (201-0108-02)

SchmartBoard Through-Hole RJ11, RJ45, and USB Connector Board with Type-A USB Receptacle Soldered On (201-0108-02)

Supports 1 RJ11 or RJ45 connector and has 1 USB Type A connector pre-soldered on.

The SchmartBoard Through-Hole RJ11, RJ45, and USB Connector Board provides an all-in-one solution for integrating essential communication and data transfer interfaces into your electronic projects. This version comes with a pre-soldered Type-A USB Receptacle, making it an even more convenient choice for those looking to save time while building networks, telecom devices, or custom USB connections.

Key Features:

• Multi-Connector Design: Supports RJ11 (telephone), RJ45 (Ethernet), and USB connections, providing the flexibility to integrate multiple communication protocols into a single, compact design.
• Pre-Soldered Type-A USB Receptacle: The Type-A USB Receptacle comes pre-soldered to the board for faster prototyping and integration, saving you valuable setup time.
• Compact 0.5” x 2” Grid: The space-efficient grid layout allows for easy incorporation into your project, while keeping your design neat and organized.
• Standard 0.1” Hole Spacing: Compatible with through-hole components, making it easy to integrate into breadboards, prototyping boards, and custom PCBs.
• Durable Construction: Built with high-quality materials to ensure reliable performance and withstand repeated soldering cycles.
• Versatile Application: Perfect for networking, telecommunication, and USB interface projects, providing an efficient connection solution for a variety of electronics applications.

The SchmartBoard Through-Hole RJ11, RJ45, and USB Connector Board with Type-A USB Receptacle simplifies your designs by combining all three essential connectors into a single, easy-to-use board. Ideal for anyone needing fast and reliable connectivity in their projects.

Streamline your project’s communication with SchmartBoard—integrate RJ11, RJ45, and USB effortlessly into your designs!

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard's "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

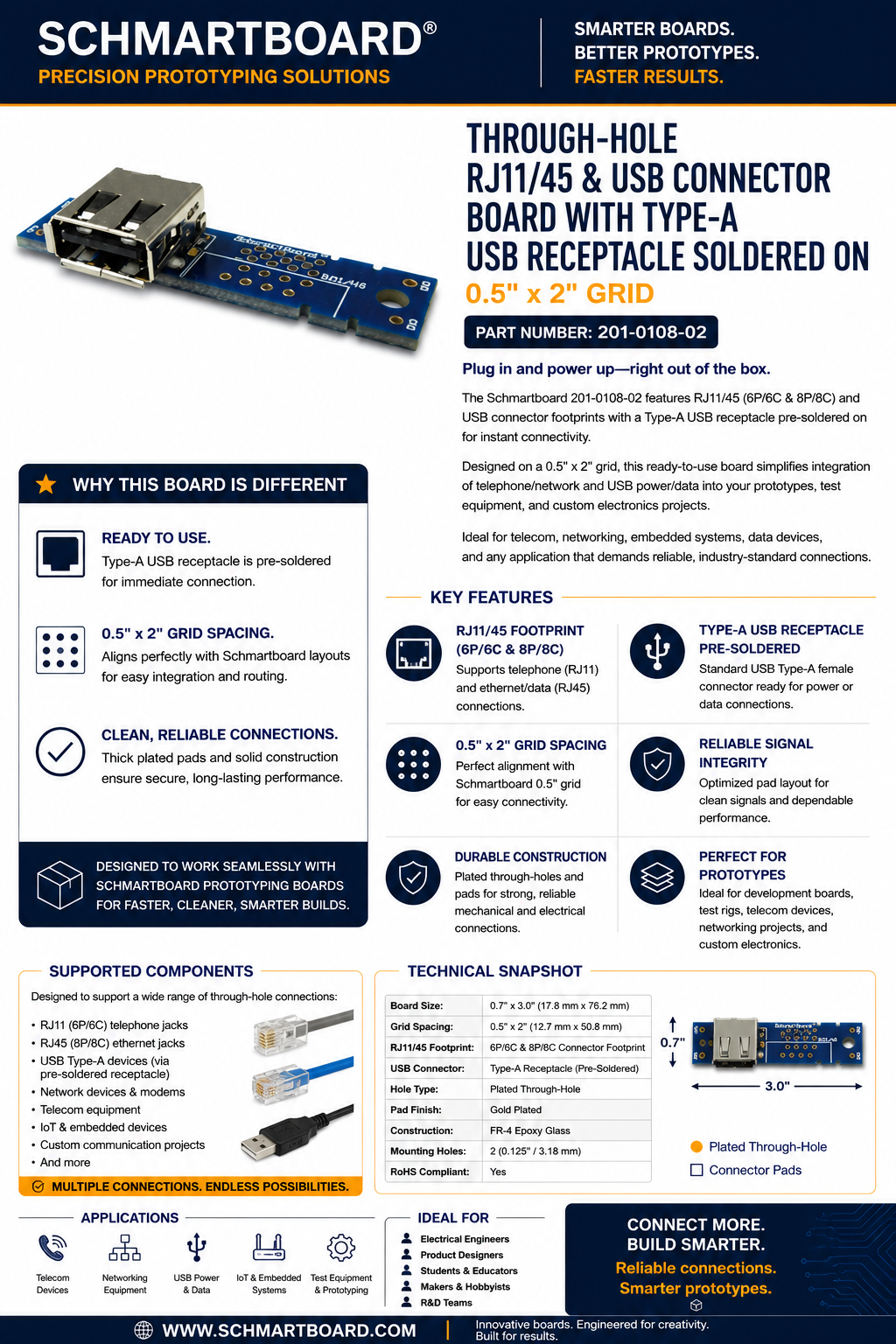

Brochure

Schmartboard uses P/N#95501-2641 as our RJ-11 design reference.
Schmartboard uses P/N# 95501-2881 as our RJ-45 design reference.

Detailed Diagram

Mechanical Specifications
