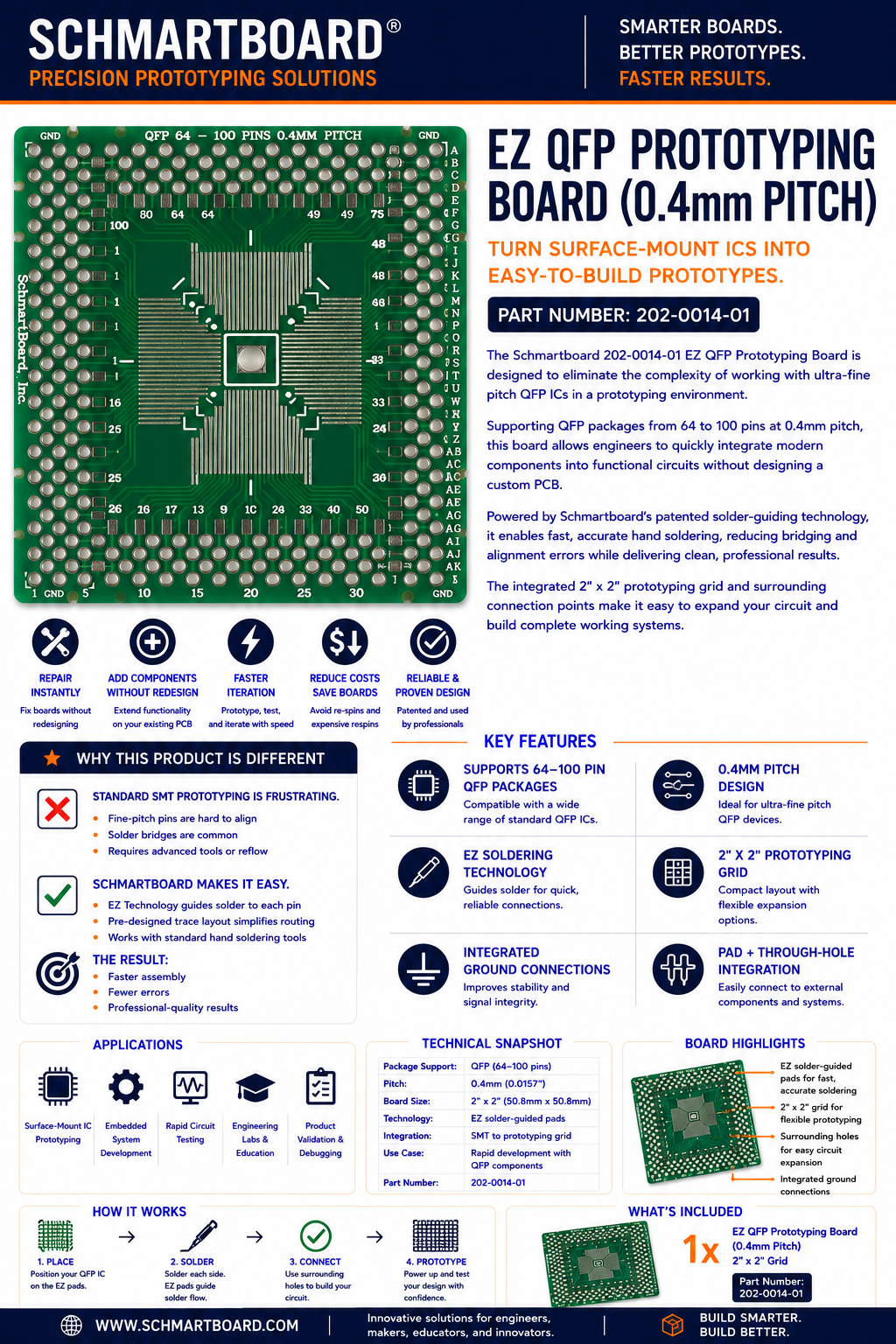

Schmartboard|ez QFP, 64-100 Pins 0.4mm Pitch, 2" x 2" Grid (202-0014-01)

The 202-0014-01 supports from 64-100 pins QFP, TQFP and PQFP package ICs with a 0.4mm pitch.

It also supports 20 pieces of 0603 package, and some though hole passive components.

This product utilizes the "EZ" technology to assure fast, easy, and flawless hand soldering.

The GND (ground) busses (upper left/right corner and lower left/right corner) on the front of the board are electrically connected to each other and to a single ground plane on the back.

The back of the board is a copper GND plane.  There is a ground plane pad for each IC pin designed to accommodate 0603 footprint for easy installation of a decoupling capacitor or other part.

The SchmartBoard EZ QFP-64 to QFP-100 Pins board is designed to simplify the process of prototyping and integrating Quad Flat Packages (QFP), with pin counts ranging from QFP-64 to QFP-100. Featuring a 0.4mm pitch and a 2” x 2” grid, this board makes it easier than ever to work with high-density surface-mount QFP components. SchmartBoard’s patented EZ Technology ensures effortless soldering, making it ideal for both beginners and experienced users.

Key Features:

• Supports QFP-64 to QFP-100 Pins: Specifically designed for QFP packages, this board supports a range of QFP-64 to QFP-100 components, allowing for flexible design choices in your projects.
• 0.4mm Pitch: The 0.4mm pitch is perfect for high-density QFP components, allowing you to work with smaller and more complex parts, such as ICs, microcontrollers, and system-on-chip (SoC) devices.
• EZ Technology for Easy Soldering: SchmartBoard’s EZ Technology makes surface-mount soldering simple and accessible. Even with fine-pitch components, the innovative design ensures that you can solder QFP pins with ease and precision, without the need for specialized tools.
• 2” x 2” Grid: The 2” x 2” grid layout maximizes the use of space while keeping components organized, helping you quickly build and test circuits with precision.
• Versatile Applications: Ideal for consumer electronics, automotive electronics, telecommunications, medical devices, and industrial applications, this board supports a broad range of development needs.
• Durable and Reliable: Made from high-quality materials, the board is built to withstand repeated soldering and testing, ensuring long-term reliability and durability.

The SchmartBoard EZ QFP-64 to QFP-100 Pins board is the ideal solution for prototyping QFP components with a 0.4mm pitch. Whether you're developing cutting-edge electronics, creating custom circuit designs, or testing prototypes, this board offers an efficient and reliable platform to bring your ideas to life.

Prototyping with QFP packages has never been easier—speed up your design process with SchmartBoard!

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Would you prefer that we solder the parts for you?  Click Here for details!

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboards and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.
