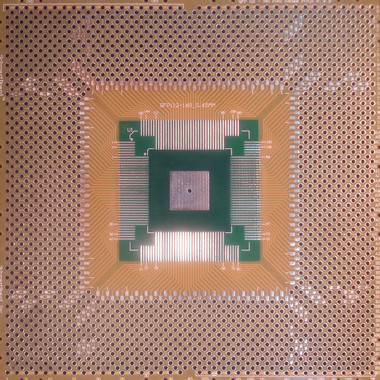

Schmartboard|ez QFP, 112 - 160 Pins 0.65mm Pitch, 4" X 4" Grid (202-0031-01)

The 202-0031 supports QFP, TQFP and PQFP from 112 - 160 Pins with a 0.65mm Pitch.

It also supports 72 pieces of 0603 package and some through-hole passive components.

This 4" x 4" product utilizes the "EZ" technology to assure fast, easy, and flawless hand soldering.

The GND (ground) busses (upper left to center and lower right to center) on the front of the board are electrically connected to each other and to a single ground plane on the back.

The back of the board is a copper GND plane.  There is a ground plane pad for each IC pin designed to accommodate 0603 footprint for easy installation of a decoupling capacitor or other part.

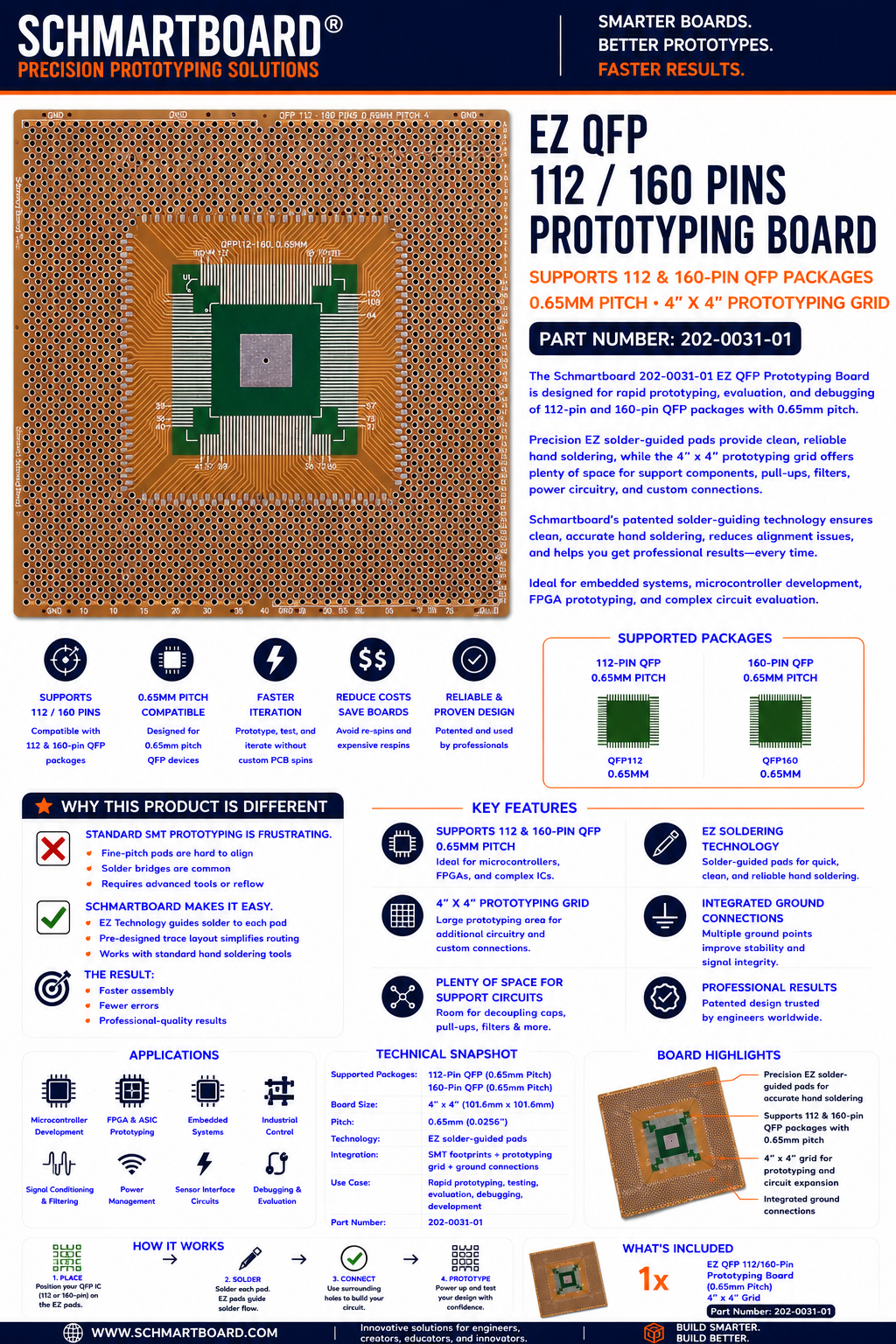

The SchmartBoard EZ QFP-112/160 Pins board is specifically designed for efficient prototyping with Quad Flat Package (QFP) components, supporting both QFP-112 and QFP-160 ICs. Featuring a 0.65mm pitch, this board is ideal for integrating high-performance microcontrollers, FPGA chips, and system-on-chip (SoC) devices into your projects. Thanks to SchmartBoard's patented EZ Technology, this board makes soldering large, high-pin-count components simple and accessible without requiring advanced tools or skills, making it perfect for engineers, makers, and hobbyists.

Key Features:

• Supports QFP-112 and QFP-160 Pins with 0.65mm Pitch: Specifically designed for QFP-112 and QFP-160 components, with a 0.65mm pitch, ideal for integrating advanced ICs, microprocessors, and high-density logic devices into your circuit designs.
• EZ Technology for Effortless Soldering: SchmartBoard's EZ Technology simplifies the soldering process, allowing you to easily and reliably solder large QFP components without the need for expensive equipment or intricate soldering techniques.
• 4” x 4” Grid Layout: The 4” x 4” grid provides ample space for large QFP components, allowing for precise routing and placement. The organized layout helps streamline the prototyping process and ensures your components are correctly aligned.
• Versatile Applications: Perfect for a variety of fields, including consumer electronics, telecommunications, automotive electronics, medical devices, industrial control systems, and more. Whether you're developing complex products or testing designs, this board offers flexibility and ease of use.
• Durable and Reliable: Built from high-quality materials, this board is designed to withstand repeated use, providing long-lasting reliability for multiple prototyping projects.
• User-Friendly and Flexible: Whether you're prototyping custom circuits, developing new technologies, or refining existing designs, this board provides the simplicity and flexibility needed for efficient development.

The SchmartBoard EZ QFP-112/160 Pins, 0.65mm Pitch board is an essential tool for anyone working with QFP components. Its EZ Technology makes the integration of large, high-pin-count devices simple and efficient, accelerating the prototyping process.

Streamline your prototyping with SchmartBoard EZ Technology—designed to simplify soldering and ensure precise integration of QFP components.

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboards and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

Would you prefer that we solder the parts for you?  Click Here for details!
