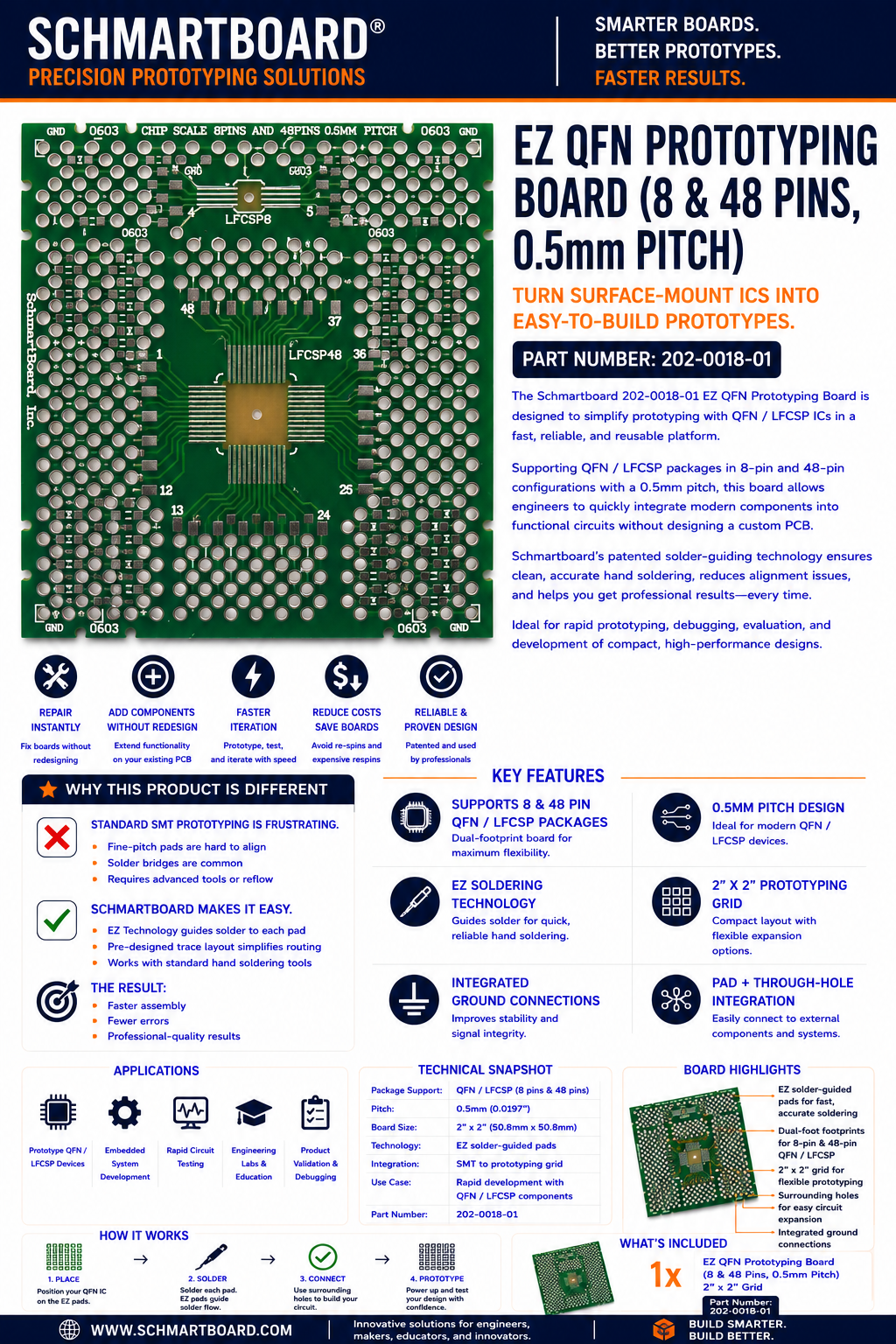

Schmartboard|ez QFN, 8 and 48 Pins 0.5mm Pitch, 2" x 2" Grid (202-0018-01)

The 202-0018-01 supports an 8 Pin DFN and a 48 Pin QFN with a .5mm Pitch.

The board also support 57 pieces of 0603 package and through hole components.

This product utilizes the "EZ" technology to assure fast, easy, and flawless hand soldering.

The GND (ground) busses (upper left/right corner and lower left/right corner) on the front of the board are electrically connected to each other and to a single ground plane on the back.

The back of the board is a copper GND plane.  There is a ground plane pad for each IC pin designed to accommodate 0603 footprint for easy installation of a decoupling capacitor or other part.

The SchmartBoard EZ QFN-8 to QFN-48 Pins board is designed for easy prototyping and integration of Quad Flat No-lead (QFN) components, supporting pin counts from QFN-8 to QFN-48. With a 0.5mm pitch and a practical 2” x 2” grid, this board provides a versatile and efficient solution for working with small, high-density surface-mount QFN components. It’s perfect for engineers, hobbyists, and makers looking for an easy way to prototype sophisticated systems.

Key Features:

• Supports QFN-8 to QFN-48 Pins: This board accommodates QFN packages ranging from QFN-8 to QFN-48, offering flexibility to integrate a wide range of components with varying pin counts.
• 0.5mm Pitch: The 0.5mm pitch enables compatibility with smaller QFN components, making this board ideal for integrating microcontrollers, voltage regulators, system-on-chips (SoCs), and other advanced integrated circuits.
• EZ Technology for Effortless Soldering: SchmartBoard’s patented EZ Technology takes the guesswork out of surface-mount soldering. With EZ Technology, even small-pitch QFN packages are easy to work with, requiring no specialized tools or advanced soldering skills.
• 2” x 2” Grid Layout: The 2” x 2” grid provides a compact and organized layout for component placement, maximizing the available space and ensuring easy management of complex designs.
• Versatile Applications: Ideal for a wide range of projects, including consumer electronics, automotive systems, telecommunications, medical devices, and industrial electronics.
• Durable and Reliable: Built with high-quality materials, this board is designed to withstand repeated use, ensuring long-lasting performance and reliable results across multiple prototyping cycles.

The SchmartBoard EZ QFN-8 to QFN-48 Pins board is a powerful tool for simplifying the integration of QFN components with a 0.5mm pitch. Whether you're creating custom electronics, testing prototypes, or developing complex systems, this board helps you quickly and efficiently bring your ideas to life.

Simplify your prototyping process and accelerate your design workflow with SchmartBoard EZ Technology.

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboards and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

 Would you prefer that we solder the parts for you?  Click Here for details!
