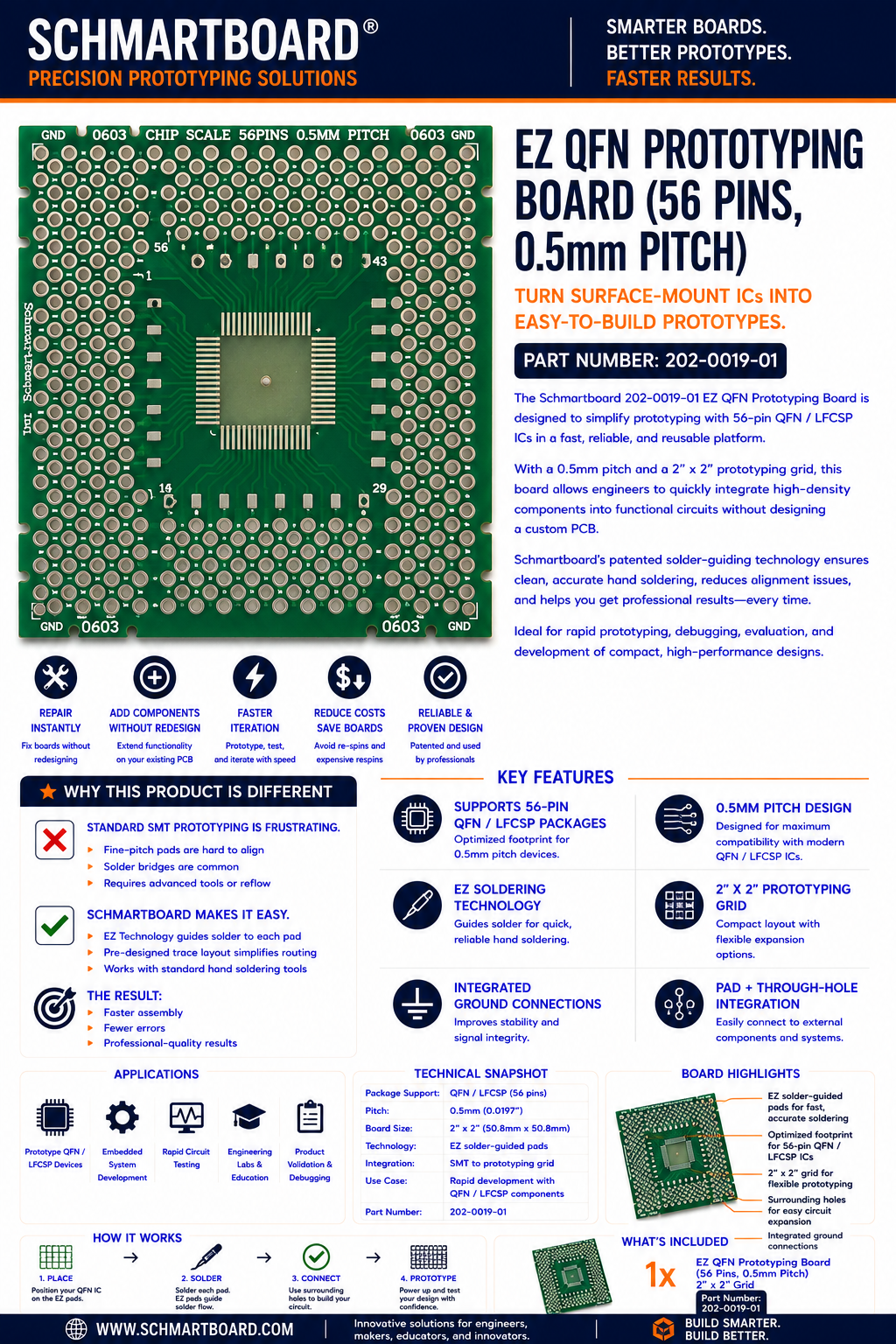

Schmartboard|ez QFN, 56 Pins 0.5mm Pitch, 2" x 2" Grid (202-0019-01)

The 202-0019-01 supports a 56 Pin QFN with a .5mm Pitch.

The board also support 40 pieces of 0603 package and through hole components.

This product utilizes the "EZ" technology to assure fast, easy, and flawless hand soldering.

The GND (ground) busses (upper left/right corner and lower left/right corner) on the front of the board are electrically connected to each other and to a single ground plane on the back.

The back of the board is a copper GND plane.  There is a ground plane pad for each IC pin designed to accommodate 0603 footprint for easy installation of a decoupling capacitor or other part.

The SchmartBoard EZ QFN-56 Pins board is designed to streamline the prototyping and integration of Quad Flat No-lead (QFN) components, specifically supporting QFN-56 packages. With a precise 0.5mm pitch and a compact 2” x 2” grid, this board is perfect for handling high-density, surface-mount QFN components. It’s the ideal solution for engineers, makers, and hobbyists who need to integrate more complex QFN components into their designs with ease.

Key Features:

• Supports QFN-56 Pins: This board is designed specifically for QFN-56 packages, offering an easy-to-use solution for integrating high-pin-count components into your projects.
• 0.5mm Pitch: The 0.5mm pitch is ideal for working with smaller, high-density QFN components, making this board perfect for complex microcontrollers, system-on-chips (SoCs), voltage regulators, and more.
• EZ Technology for Effortless Soldering: SchmartBoard’s patented EZ Technology eliminates the challenges of soldering small-pitch QFN packages. It simplifies the soldering process, so you don’t need specialized tools or advanced skills to work with these components.
• 2” x 2” Grid Layout: The 2” x 2” grid offers an organized, efficient layout, ensuring you can manage your components with ease and optimize space while prototyping.
• Versatile Applications: Ideal for applications such as consumer electronics, automotive systems, medical devices, telecommunications, and industrial electronics.
• Durable and Reliable: Made from high-quality materials, this board is built for repeated use, ensuring long-lasting reliability and consistent performance throughout multiple prototyping cycles.

The SchmartBoard EZ QFN-56 Pins board makes working with QFN-56 components simple, efficient, and reliable. Whether you're designing custom electronics, testing new circuits, or working on high-performance systems, this board will help you prototype faster and more effectively.

Streamline your prototyping and accelerate your design process with SchmartBoard EZ Technology.

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboards and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

Would you prefer that we solder the parts for you?  Click Here for details!
