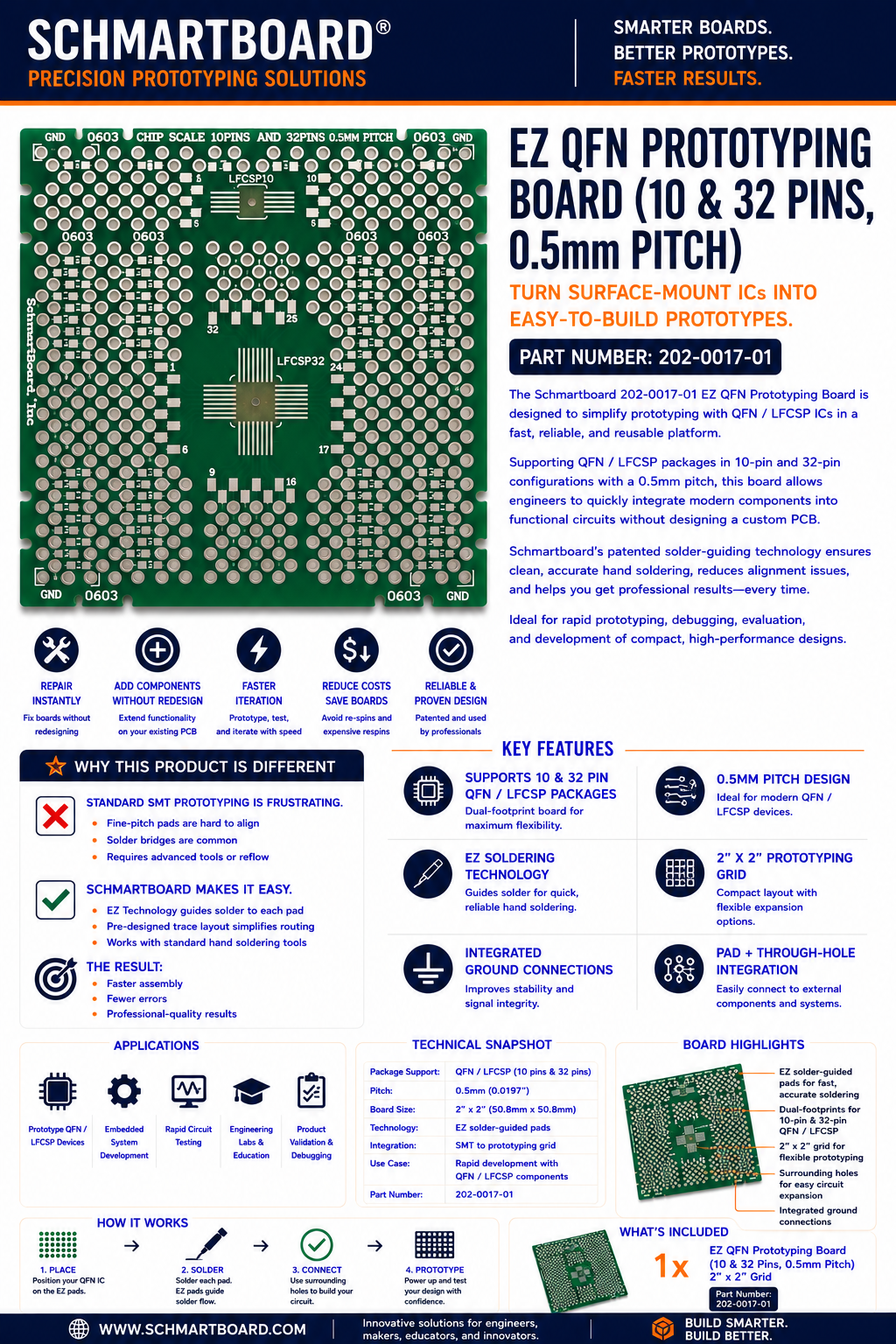

Schmartboard|ez QFN, 10 and 32 Pins .5mm Pitch, 2" x 2" Grid (202-0017-01)

The 202-0017-01 supports a 10 Pin DFN and a 32 Pin QFN with a .5mm Pitch.

The board also support 78 pieces of 0603 package and through hole components.

This product utilizes the "EZ" technology to assure fast, easy, and flawless hand soldering.

The GND (ground) busses (upper left/right corner and lower left/right corner) on the front of the board are electrically connected to each other and to a single ground plane on the back.

The back of the board is a copper GND plane.  There is a ground plane pad for each IC pin designed to accommodate 0603 footprint for easy installation of a decoupling capacitor or other part.

The SchmartBoard EZ QFN-10 to QFN-32 Pins board is designed to simplify the prototyping and integration of Quad Flat No-lead (QFN) components, supporting pin counts from QFN-10 to QFN-32. Featuring a 5mm pitch and a user-friendly 2” x 2” grid, this board is perfect for working with a variety of small-footprint, surface-mount QFN components, making it an ideal choice for engineers, makers, and hobbyists.

Key Features:

• Supports QFN-10 to QFN-32 Pins: This versatile board accommodates QFN packages ranging from QFN-10 to QFN-32, providing flexibility for different designs and pin count requirements.
• 5mm Pitch: The 5mm pitch is ideal for working with a variety of QFN components, including microcontrollers, power ICs, voltage regulators, and other devices used in compact designs.
• EZ Technology for Easy Soldering: SchmartBoard’s patented EZ Technology simplifies surface-mount soldering, even for QFN packages that are traditionally challenging to solder. This design ensures easy, accessible prototyping without the need for specialized tools or techniques.
• 2” x 2” Grid Layout: The 2” x 2” grid layout provides a neat and organized space for your components, optimizing your workspace and making it easier to manage complex designs during the prototyping phase.
• Versatile Applications: Perfect for a wide range of applications, including consumer electronics, automotive systems, medical devices, telecommunications, and industrial electronics.
• Durable and Reliable: Made with high-quality materials, this board is designed for repeated use, providing reliable performance across multiple prototyping cycles and ensuring long-lasting durability.

The SchmartBoard EZ QFN-10 to QFN-32 Pins board is a fantastic solution for prototyping QFN components with 5mm pitch. Whether you’re creating custom electronics, testing new designs, or developing advanced systems, SchmartBoard’s EZ Technology streamlines the prototyping process and helps you bring your projects to life faster and more efficiently.

Simplify your prototyping with SchmartBoard and accelerate your design process today.

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboards and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

Would you prefer that we solder the parts for you?  Click Here for details!
