Schmartboard |ez .5mm Pitch 16 Pin QFP/QFN to DIP Adapter (204-0026-01)

Schmartboard EZ 5mm Pitch 16-Pin QFP/QFN to DIP Adapter (204-0026-01)

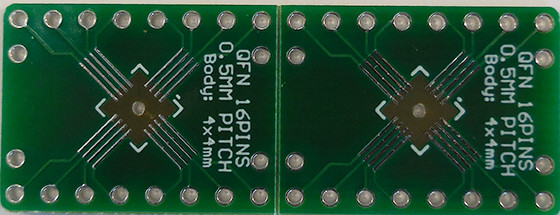

Easily integrate 5mm pitch QFP (Quad Flat Package) or QFN (Quad Flat No-lead) 16-pin components into your breadboard or DIP-based circuit designs with the Schmartboard EZ 5mm Pitch 16-Pin QFP/QFN to DIP Adapter. Designed for simplicity and reliability, this adapter provides a quick and easy solution for converting QFP/QFN packages into the more commonly used 0.1" DIP (Dual Inline Package) format without the need for soldering or specialized tools. Ideal for engineers, makers, and hobbyists, this adapter ensures seamless prototyping and testing with a wide range of QFP and QFN components.

Key Features:

• Converts 5mm pitch 16-pin QFP or QFN components into 0.1" DIP format.
• High-quality PCB with clearly marked pinouts for reliable, easy connections.
• Ideal for breadboarding, testing, and prototyping with 5mm pitch QFP/QFN components.
• Compatible with a wide range of 5mm pitch 16-pin QFP and QFN components.

With the Schmartboard EZ 5mm Pitch 16-Pin QFP/QFN to DIP Adapter, converting QFP/QFN components to DIP format is quick, simple, and reliable—ensuring your prototyping and circuit design tasks are efficient and hassle-free.

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.
