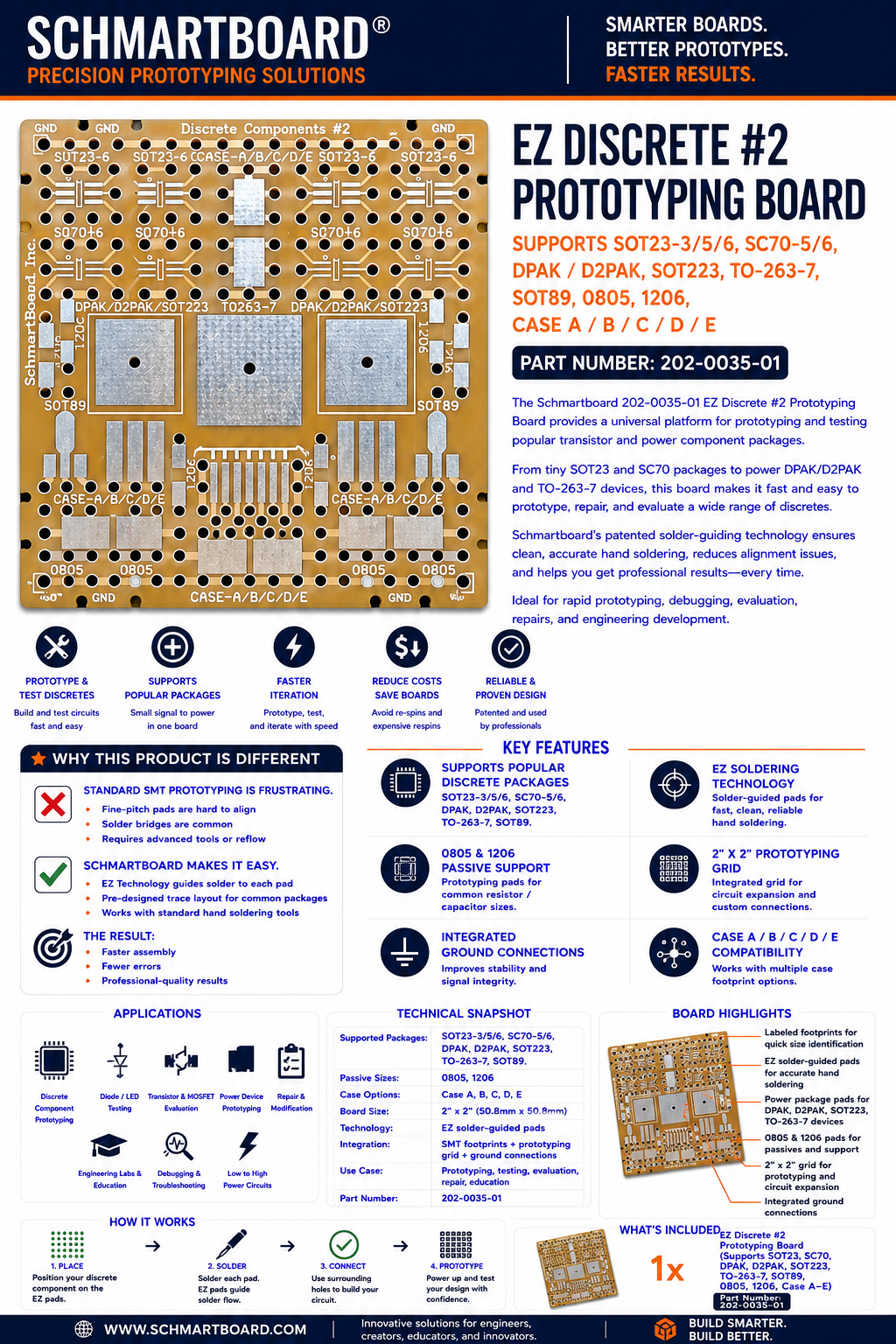

EZ Discrete #2 Supports SOT23-3, 5, 6, SC70-5, 6, DPAK, D2PAK, SOT223, TO263-7, SOT89, 0805, 1206, CASE-A, B, C, D, E. (202-0035-01)

The 202-0035-01 EZ Discrete #2 Supports SOT23-3, 5, 6, SC70-5, 6, DPAK, D2PAK, SOT223, TO263-7, SOT89, 0805, 1206, CASE-A, B, C, D, and E.

The SchmartBoard EZ Discrete 2 is the ultimate prototyping board for integrating a wide range of discrete components. This versatile board supports an array of packages, including SOT23, SC70, DPAK, SOT223, TO263, SOT89, and common surface-mount components like 0805 and 1206. Designed for ease of use, the EZ Discrete 2 allows you to quickly and efficiently prototype circuits with discrete semiconductors, transistors, and other components in various form factors.

Key Features:

• Wide Package Support: Compatible with a broad range of packages, including SOT23, SC70, DPAK, SOT223, TO263, SOT89, as well as 0805 and 1206 surface-mount components.
• EZ Technology for Easy Soldering: The EZ Discrete 2 incorporates SchmartBoard’s signature EZ Technology, which makes it easy to solder surface-mount components directly onto the board—no special equipment or advanced skills required.
• Compact and Efficient Design: The board is designed to maximize prototyping space, giving you the flexibility to work with a wide variety of component sizes and package types, all within a manageable footprint.
• Versatile Applications: Ideal for building custom circuits, power management solutions, and discrete component-based designs. Suitable for use in consumer electronics, automotive, industrial, and communications applications.
• Durable and Reliable: Built with high-quality materials to ensure durability and reliability in both prototyping and finished product designs.

The SchmartBoard EZ Discrete 2 is the perfect tool for engineers and makers who need a simple, efficient way to prototype discrete component circuits. Whether you’re working on a DIY project or a professional prototype, this board simplifies the process of integrating and testing components, ensuring quick, reliable results.

Get your prototypes up and running faster with SchmartBoard EZ Discrete 2—your all-in-one solution for a wide range of discrete components.

This product utilizes the "EZ" technology to assure fast, easy, and flawless hand soldering.

The GND (ground) busses (upper left/right corner and lower left/right) on the front of the board are electrically connected to each other and to a single ground plane on the back.

Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

 Would you prefer that we solder the parts for you?  Click Here for details!
