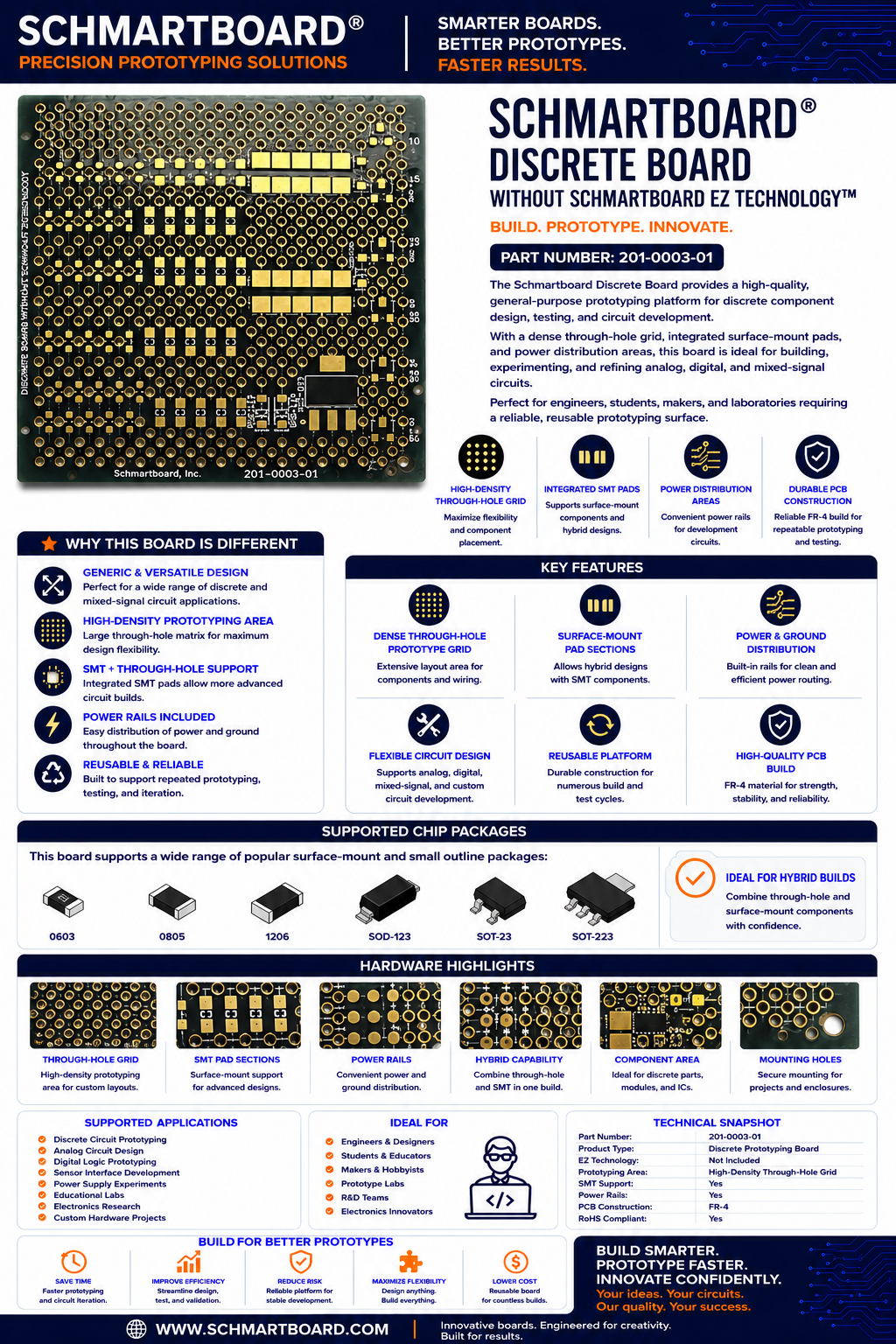

Discrete Board (Without Schmartboard|ez Technology) (201-0003-01)

0603/0805/1206/SOD-123/sot-23/SOT-223 2" X 2" Grid

The SchmartBoard Discrete Prototyping Board is a simple yet versatile solution for building and testing discrete component circuits. With its clean, straightforward design and standard layout, this board is ideal for engineers, hobbyists, and students who want a reliable platform for prototyping without extra features.

Key Features:

• Standard 0.1” Spacing: Designed for compatibility with a wide range of through-hole components, including resistors, capacitors, and transistors.
• Compact and Flexible Design: The board's compact size makes it ideal for small projects, circuit experiments, or custom layouts.
• Durable Construction: Built to withstand repeated soldering while maintaining strong, reliable connections.
• No SchmartBoard EZ Technology: A basic design for users who prefer full control over their soldering and assembly process.
• Perfect for Discrete Component Circuits: Whether prototyping analog designs, simple logic circuits, or other discrete systems, this board is optimized for clean and efficient builds.

The 201-0003-01 supports up to max. 55 pieces of 0603 package, 35 pieces of 0805 package, 4 pieces of SOD-123 package, 1 piece of SOT-223 package, 6 pieces of SOT-23 package, 10 pieces of CASE-B package and some thru hole passive components.

The GND (ground) busses (upper left/right corner and lower left/right corner) on the front of the board are electrically connected to each other and to a single ground plane on the back.

Schmartboard's also connect together.  Schmartboard allows you to wire up multiple Schmartboard and then mechanically connect them via our "SchmartBridges".  Schmartboard’s "Electronic Circuit Building Block" patented technology makes it easier to create and trouble-shoot your circuit.  Rather than trouble-shooting an issue on a large and complicated messy circuit, why not build and test smaller circuit blocks and then connect them together to form your larger final circuit.  This saves time and money and is only available from Schmartboard.

The SchmartBoard Discrete Prototyping Board is a cost-effective and practical choice for those who value simplicity and precision in their projects. Whether you’re an experienced engineer or a curious beginner, this board offers the flexibility and reliability you need.

Build smarter and prototype with confidence using SchmartBoard!

Brochure

Detailed Diagram

Mechanical Specifications

PCB Material Specifications
