Don’t Cross Analog and Digital Grounds Carelessly

Posted


When designing mixed-signal PCBs that include both analog and digital components, one of the most common pitfalls is mishandling ground planes. At first glance, it may seem intuitive to separate analog and digital grounds completely — but doing so without careful consideration can create more problems than it solves.

Why Grounding Matters

Digital circuits are noisy by nature. High-speed switching generates fast transients that propagate through the ground plane, while analog circuits require a clean, stable reference to measure low-level signals accurately. If analog and digital grounds are tied together haphazardly, that digital noise can leak into sensitive analog paths, degrading performance.

The Right Way to Handle Grounds

  • Use a single, continuous ground plane whenever possible.
    Splitting ground planes can cause return current issues and create unexpected impedance paths, leading to crosstalk and noise coupling.

  • If you must separate, connect at a single point.
    When analog and digital sections require isolation, connect the two grounds at a carefully chosen “star point” to control current return paths.

  • Place components strategically.
    Keep analog and digital circuits physically separated on the board and route signals so that high-speed digital traces do not cross sensitive analog regions.

  • Use proper decoupling and filtering.
    Bypass capacitors and ferrite beads can help reduce high-frequency noise transfer between domains.

Why the “Incorrect” Side Is Wrong

On the left side of the graphic:

  • The analog and digital grounds are split into two separate planes.

  • However, a signal trace crosses the split, forcing the return current to find an indirect, noisy path.

  • This creates a large ground loop, which:

    • Increases electromagnetic interference (EMI).

    • Causes voltage offsets between analog and digital references.

    • Makes the analog measurements less reliable.

Essentially, the split is useless unless return currents are controlled.


Why the “Correct” Side Works

On the right side of the graphic:

  • Analog and digital circuits are still physically separated on the PCB for noise control.

  • However, the two ground planes are connected at a single “star point.”

  • Return currents now follow a short, controlled path, minimizing noise injection.

This approach preserves the quiet environment for analog signals while allowing both systems to share a common ground reference.

Common Mistakes to Avoid

  • Crossing signal traces over ground splits — this forces return currents through unintended paths, creating EMI issues.

  • Placing mixed-signal ICs without considering where their reference grounds connect.

  • Ignoring data sheet recommendations for grounding sensitive components like ADCs, DACs, and RF modules.

Final Thoughts

Good grounding practices are the foundation of robust mixed-signal PCB design. Whether you're working on a hobby project or a production-ready prototype, understanding how return currents behave and controlling where analog and digital grounds meet will save you from signal integrity headaches later.

At Schmartboard, our prototyping boards are designed with best practices in mind, making it easier to experiment without running into common grounding pitfalls.


Do Label All Components and Nets Clearly: A Schmartboard Tip

In the world of electronics design, clarity is everything. Whether you’re prototyping on a breadboard, working on a Schmartboard, or finalizing a PCB for production, one of the most overlooked yet critical steps in the design process is properly labeling your components and nets. This small habit can save you from big headaches later. Why Labeling [...]

Read More »

Don’t Use Components Without Understanding Their Limitations

When working with electronics, one of the biggest mistakes beginners (and even some experienced builders) make is using components without truly understanding their limitations. Whether you’re working with an integrated circuit (IC), a capacitor, or a diode, every part has thresholds—voltage, current, temperature, tolerance—that must be respected. Ignoring these limits doesn’t just risk a failed [...]

Read More »

Why Planning is the Most Overlooked — and Most Critical — Step in PCB Design

When you’re excited about bringing an electronic design to life, it’s tempting to jump straight into layout. After all, that’s the “fun” part — placing components, routing traces, and seeing your creation take shape. But skipping the planning phase or diving in blindly can lead to costly mistakes, wasted time, and even complete project failure. At [...]

Read More »

Do Create a Detailed and Organized Schematic: Your Roadmap to Reliable Circuit Design

In electronics, a schematic isn’t just a formality — it’s the foundation of your entire project. A detailed and organized schematic saves time, prevents costly mistakes, and makes prototyping and collaboration dramatically easier. At Schmartboard, we’ve seen it time and again: designers who take the time to build clean schematics end up with better results, faster [...]

Read More »

SmartTip: Do Start with a Clear Design Goal and Requirements

Every successful circuit begins with a purpose. Before you open your schematic software or reach for a component, take the time to clearly define what your circuit is supposed to do, the environment it will operate in, and the constraints you're working within — such as power budget, physical size, cost, and timeline. Start by asking [...]

Read More »

Common Mistakes in PCB Design and How to Avoid Them

Printed Circuit Board (PCB) design is a crucial part of electronics development, and even a small oversight can cause major headaches down the line. Whether you're an experienced engineer or a DIY electronics enthusiast, avoiding common pitfalls in PCB design will save time, reduce costs, and improve your end product. In this blog, we’ll explore [...]

Read More »

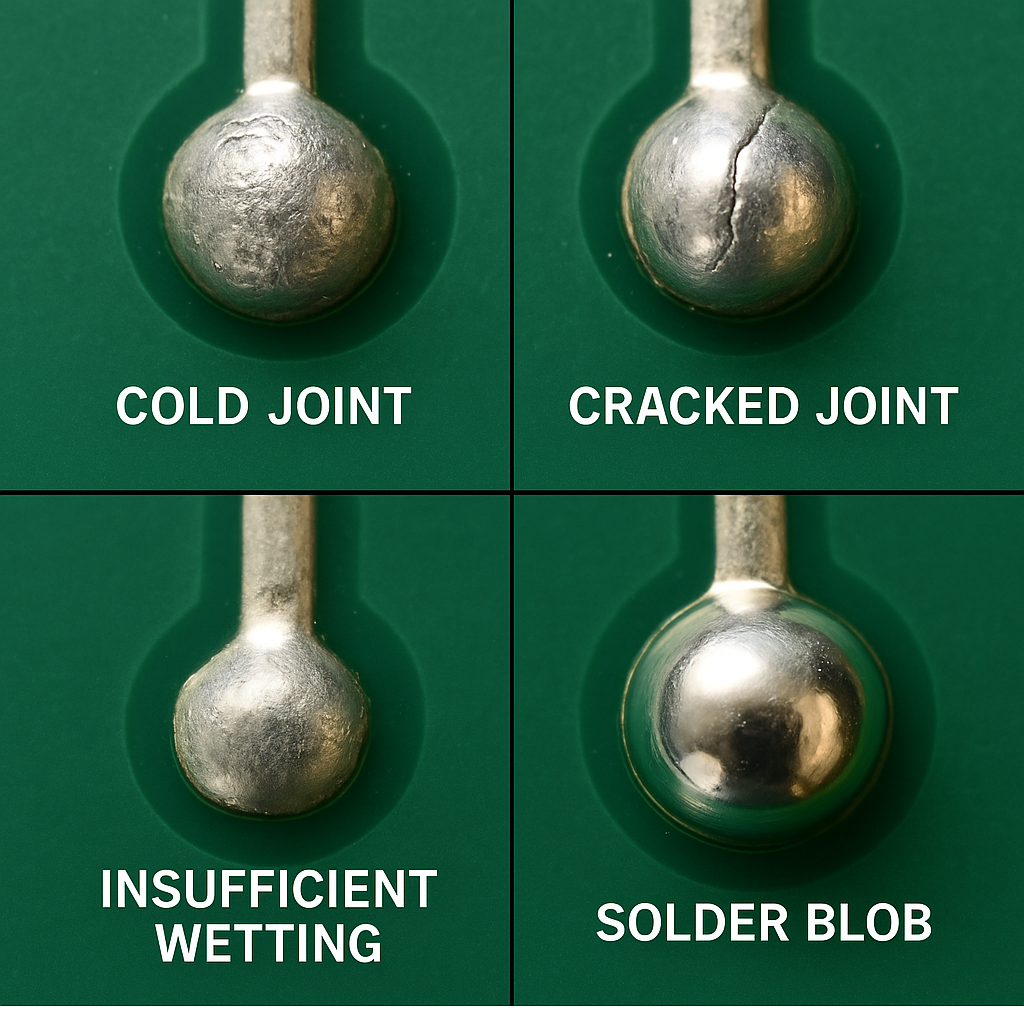

How to Identify and Fix Bad Solder Joints
