That’s why one of the most important quality checks you can do is simple but powerful:

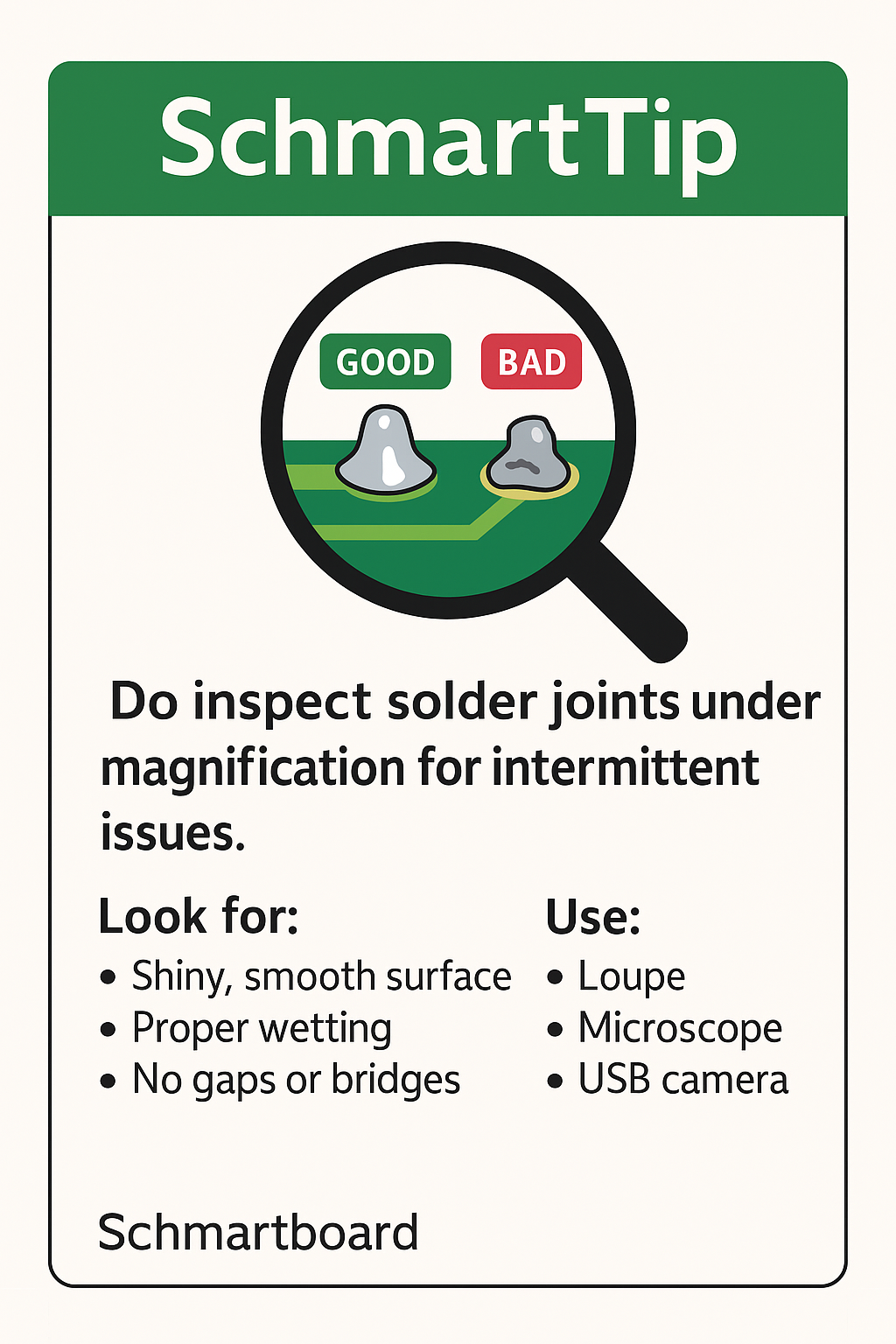

Do inspect solder joints under magnification for intermittent issues.

Why Magnification Matters

Solder joints are deceptively small. They might look fine under room lighting, but microscopic imperfections can lead to:

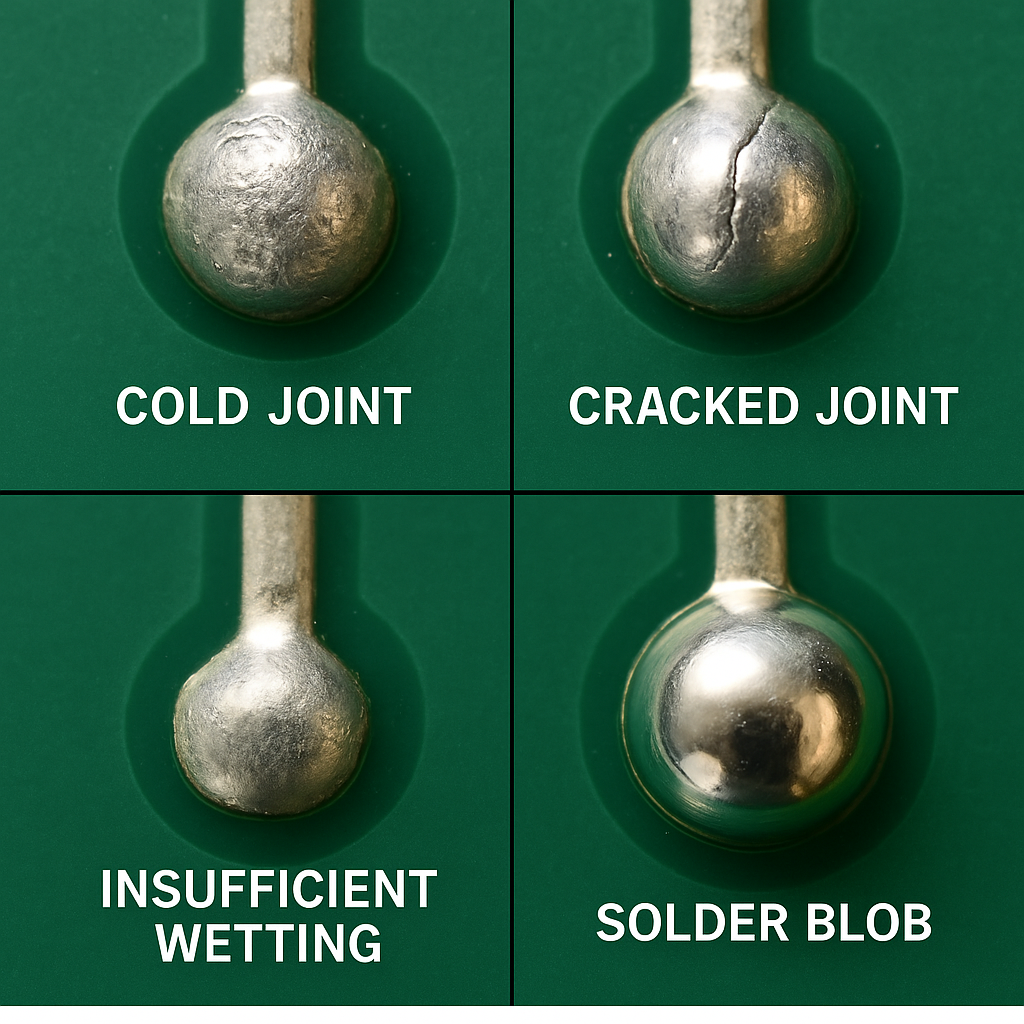

• Intermittent connections — circuits work one moment, fail the next.

• Open circuits — solder didn’t fully wet the pad or lead.

• Cold joints — dull, grainy solder caused by insufficient heat.

• Bridged pins — tiny solder blobs connecting adjacent pads.

• Cracked joints — stress fractures that develop over time.

Magnification allows you to see the truth — the difference between a shiny, properly wetted joint and a weak one waiting to fail.

How to Inspect Solder Joints Properly

Here’s what to look for when using magnification tools such as a loupe, microscope, or USB inspection camera:

1. Shiny, smooth surface:
   A good solder joint should have a concave, mirror-like finish — not dull or grainy.

2. Proper wetting:
   The solder should smoothly flow from the component lead to the pad, forming a natural curve.

3. No gaps or voids:
   Any visible cracks, pits, or voids indicate poor soldering.

4. No bridges:
   Adjacent pads or leads should not be connected by stray solder.

5. Consistent size and shape:
   Joints should appear uniform — uneven joints suggest inconsistent heat or solder volume.

Tools That Make Inspection Easier

• 10x–20x Jeweler’s Loupe: Portable and inexpensive for quick checks.

• Digital USB Microscope: Allows high magnification and image capture for documentation.

• Stereo Microscope: Ideal for rework stations and professional inspection.

• Ring Light or Adjustable LED: Proper lighting reveals flaws you’d otherwise miss.

Common Causes of Bad Solder Joints

• Insufficient or uneven heating.

• Dirty pads or oxidized leads.

• Using the wrong solder alloy or flux.

• Moving the joint before cooling.

• Excessive solder that bridges leads.

Recognizing these during inspection helps you correct the technique before problems repeat.

How Schmartboard Makes It Easier

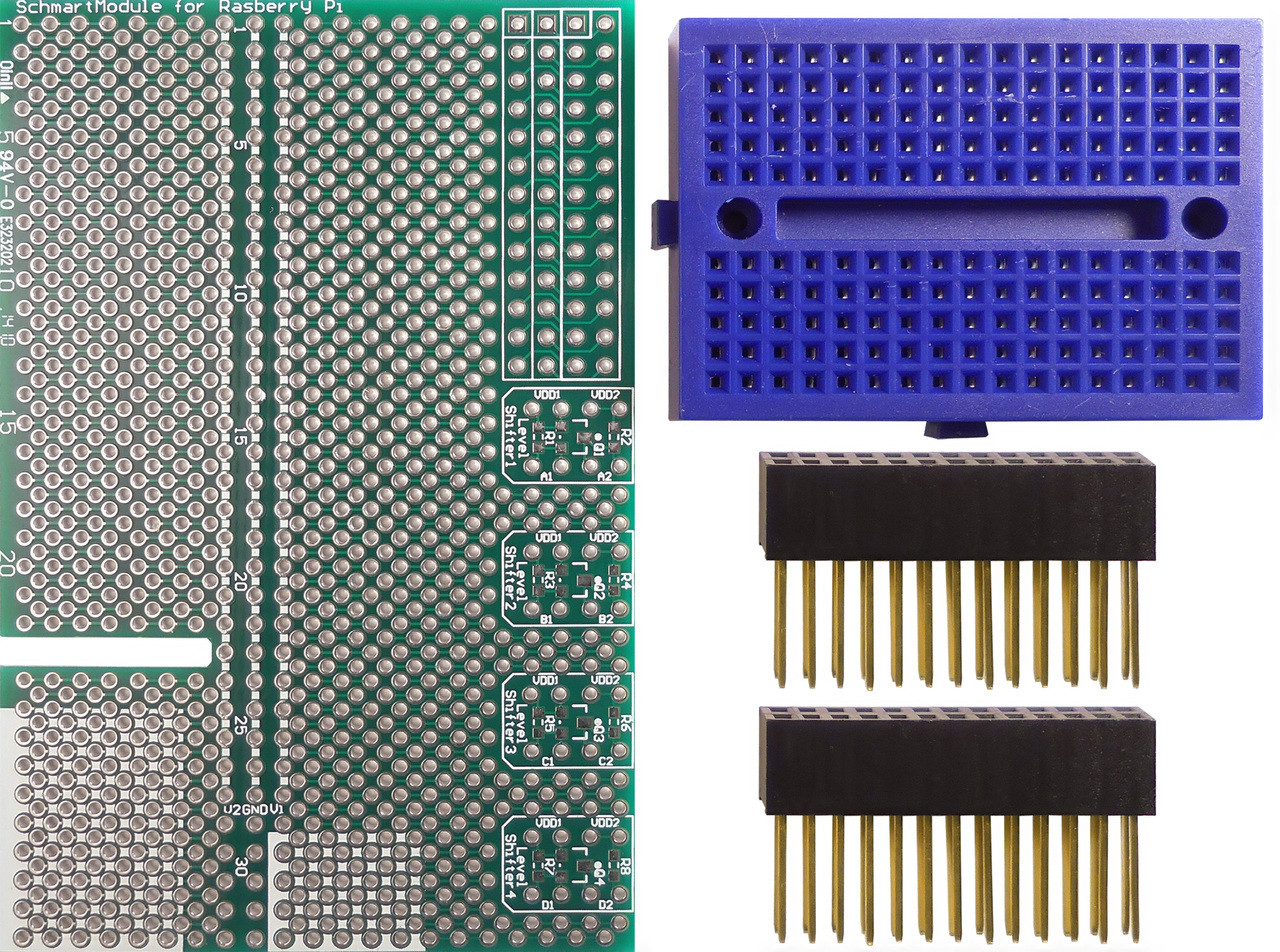

At Schmartboard, we understand that soldering precision can make or break a project — especially for beginners or small-batch engineers. That’s why our Schmartboard prototyping products are designed to help you solder cleanly, consistently, and confidently.

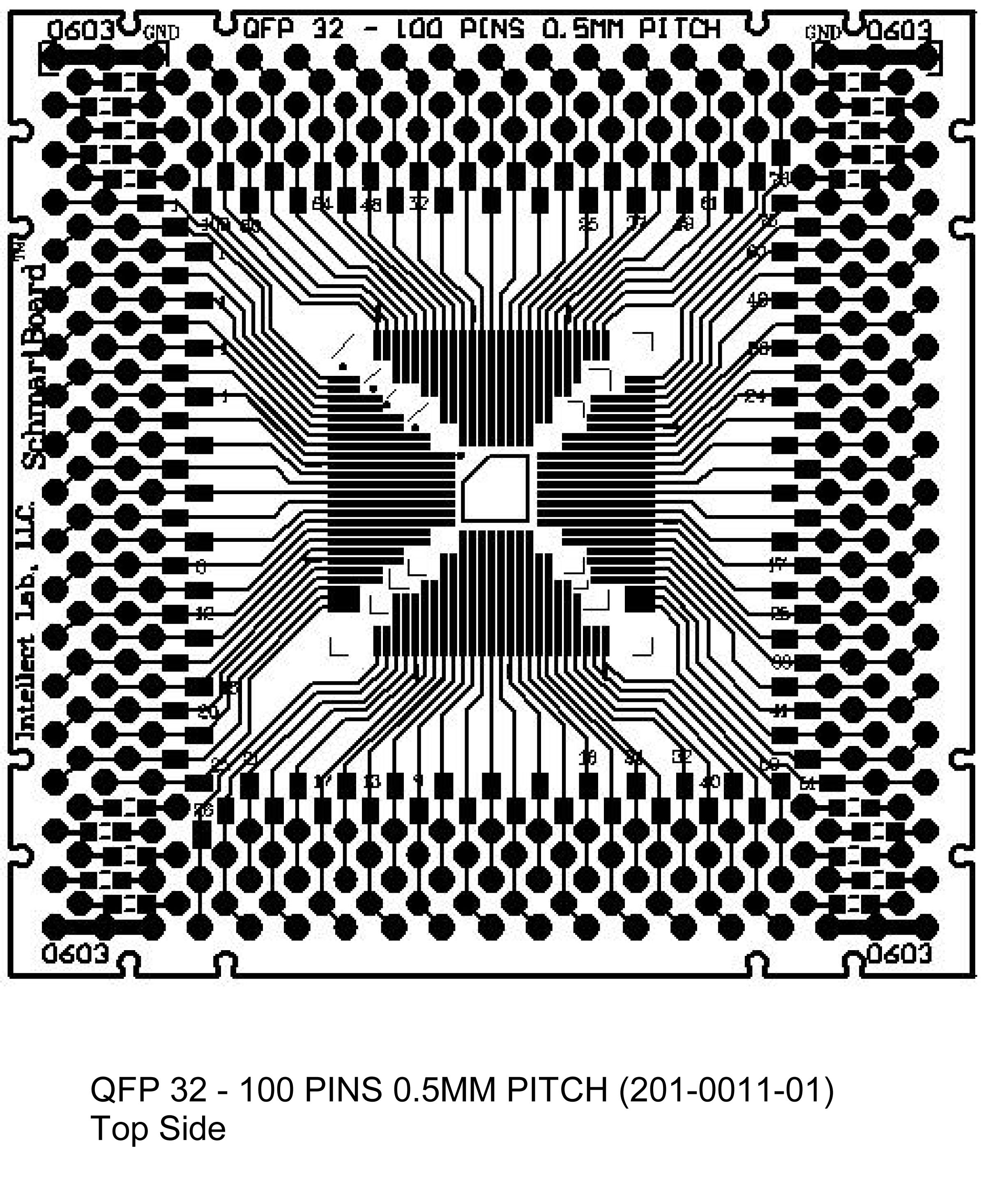

• Our patented “EZ” solder technology includes pre-tinned pads and raised traces, guiding solder flow automatically.

• Ideal for SMD components, even under magnification — the joints form neatly with minimal effort.

• You can focus on inspection and testing rather than rework and frustration.

When paired with proper inspection habits, Schmartboard helps you build professional-quality circuits right on your workbench.

Final Thoughts

Small defects cause big headaches. An intermittent connection can waste hours of debugging and lead to unreliable products in the field.

So before you power up your next board, take a moment to inspect those solder joints under magnification. It’s one of the fastest, easiest ways to ensure long-term reliability — and it’s a habit that separates careful engineers from careless ones.

Good connections are built, not guessed. Inspect, verify, and trust your work — the Schmartboard way.

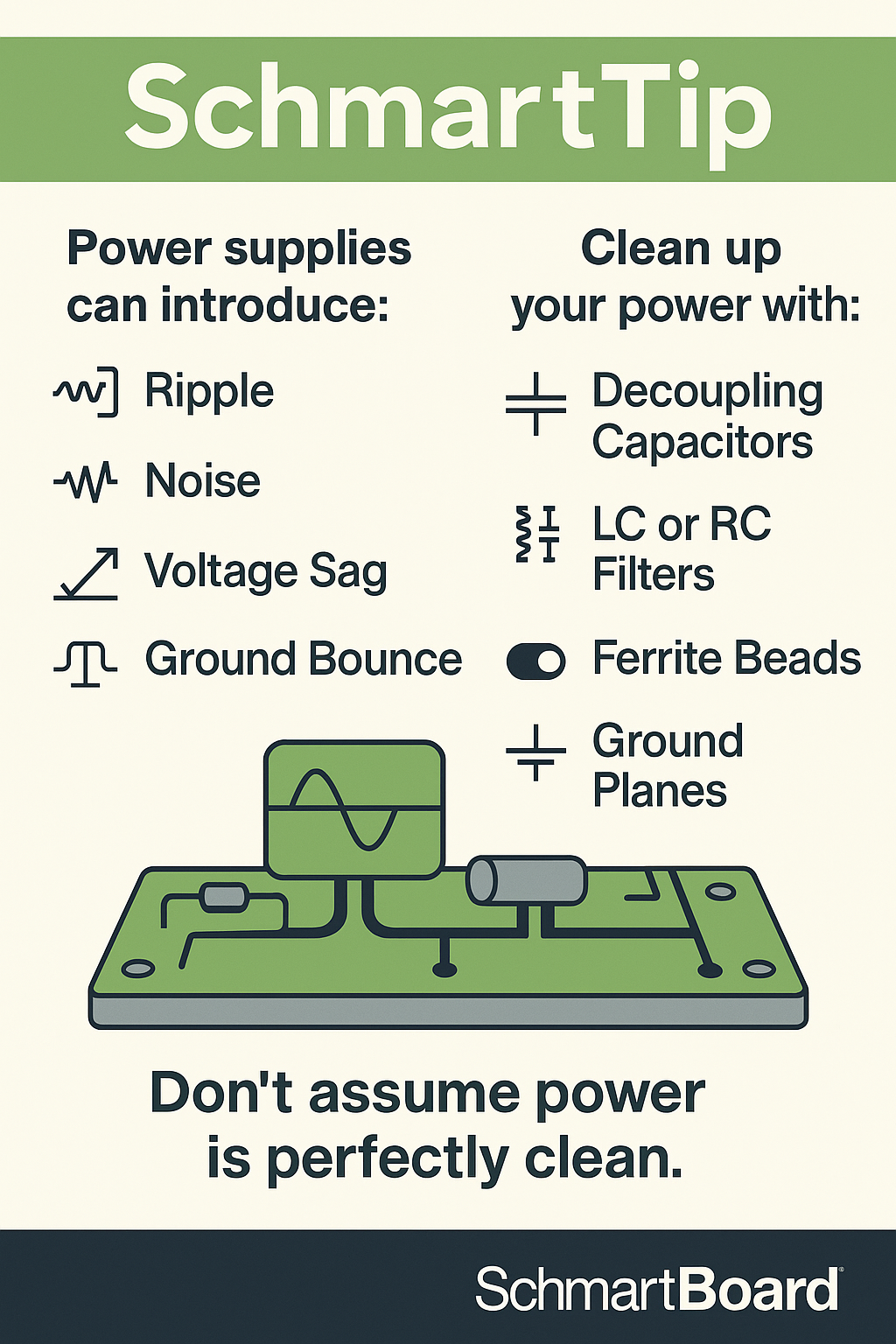

Don’t assume your power supply is perfectly clean.

Even regulated power supplies introduce noise, ripple, and voltage fluctuations that can interfere with your circuit’s performance. Ignoring power quality is one of the fastest ways to introduce instability, strange glitches, or outright failure in your design.

What Makes Power “Dirty”?

No power source is perfect. These common issues can cause trouble:

If you’re powering microcontrollers, amplifiers, ADCs, sensors, or communication modules, these power imperfections can wreak havoc.

Why Power Quality Matters

Poor power quality can cause:

⚠️ Random system resets
⚠️ ADC measurement errors
⚠️ Clock instability
⚠️ Data corruption
⚠️ Noise in audio or RF circuits
⚠️ Component overheating

Stable power isn’t optional—it is essential to a reliable design.

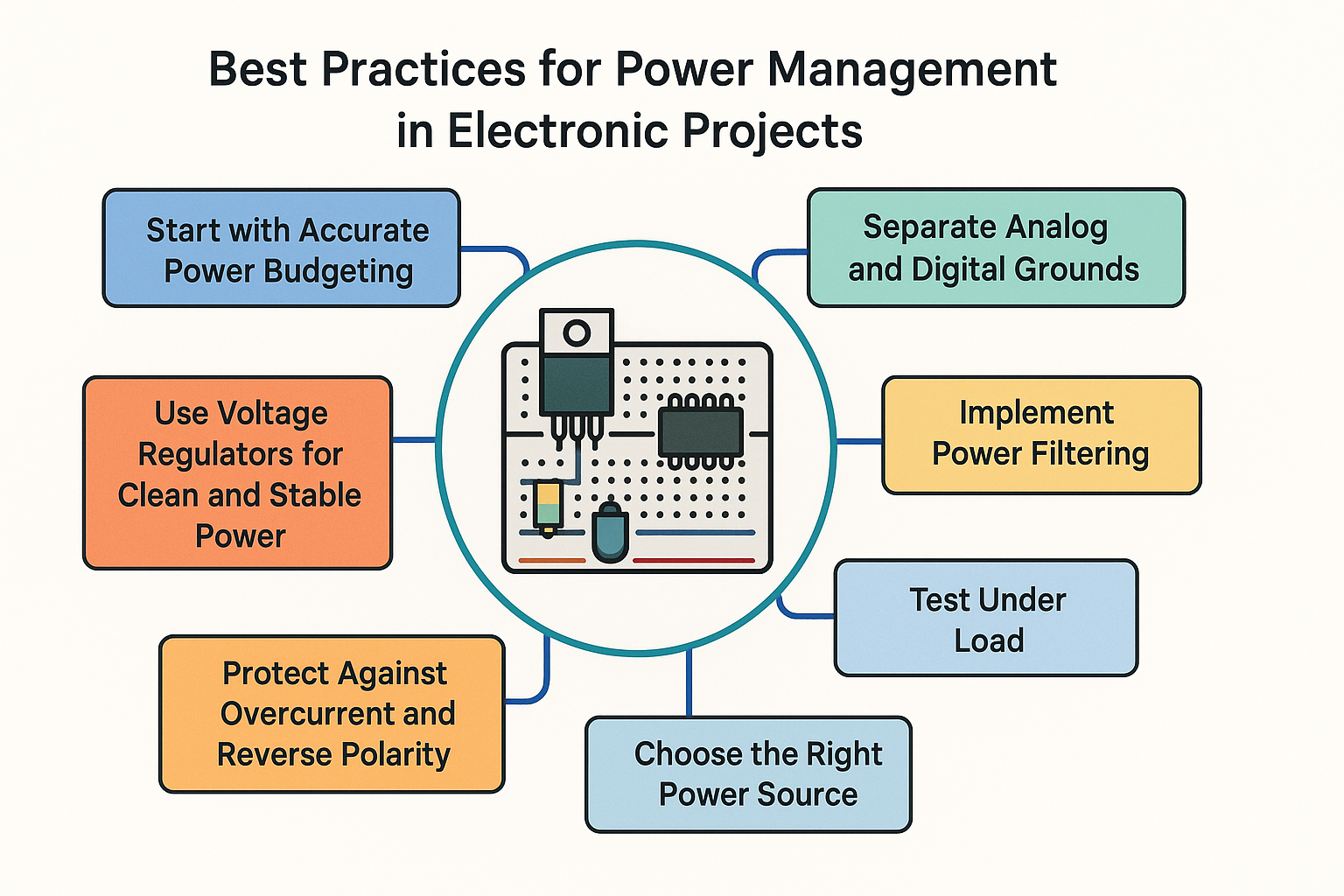

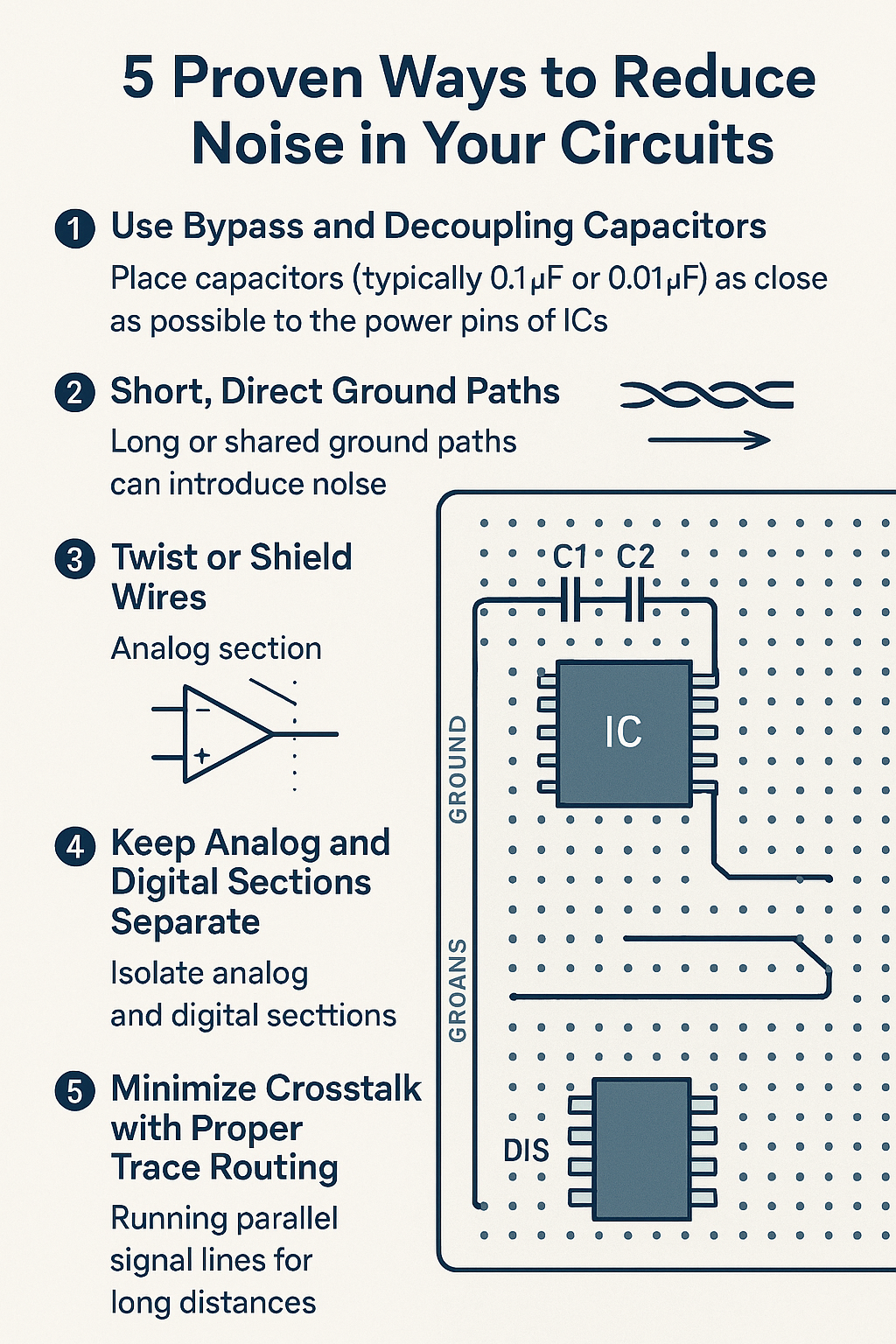

How to Clean Up Your Power

Here are proven techniques:

✅ Use Decoupling Capacitors
Place 0.1µF ceramic capacitors close to every IC power pin. Add bulk electrolytic capacitors (10–100µF) near power entry points.

✅ Add LC or RC Filters
Useful for filtering switching noise from buck converters or boost supplies.

✅ Use Ferrite Beads
Great for blocking high-frequency noise between digital and analog sections.

✅ Use Ground Planes
A solid ground plane lowers impedance and improves current return paths.

✅ Test Your Power Rails
Use an oscilloscope—multimeters won’t show ripple or noise spikes.

Good, Better, Best Power Filtering

How Schmartboard Helps

Power integrity becomes even more critical during prototyping, and that’s where Schmartboard makes your life easier. Our boards are designed with proper power routing, solid grounding, and space for filtering components, so you can:

✔️ Prototype sensitive designs like audio, RF, and sensor circuits
✔️ Test filtering techniques easily
✔️ Debug power noise issues with clean layouts

Schmartboard gives you the flexibility to add capacitors, regulators, ferrite beads, and test leads—so you can build stable circuits faster.

Final Thoughts

Never trust your power source blindly—measure it, filter it, and design for noise immunity. Clean power is the foundation of clean signals.

Don’t assume power is clean—design it that way.

Build smarter. Prototype cleaner. Choose Schmartboard.

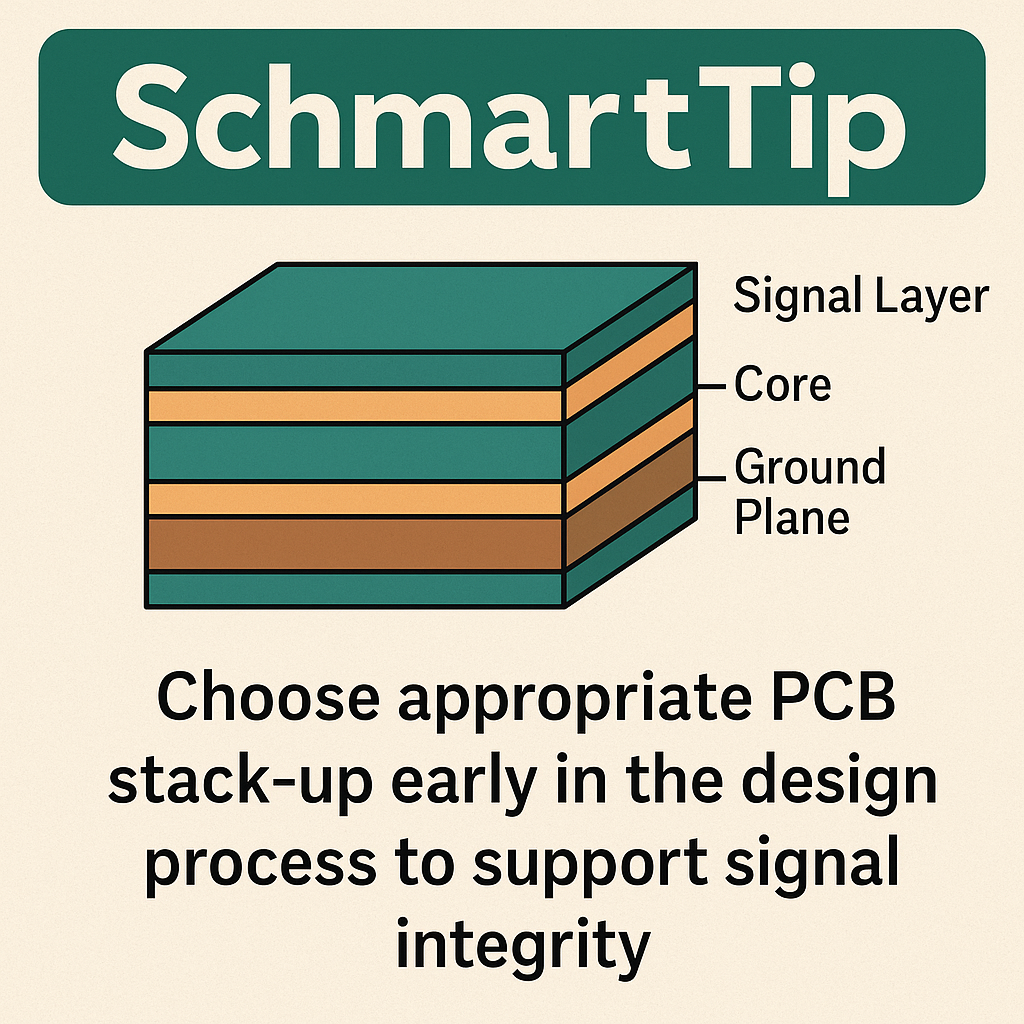

Your PCB stack-up.

The stack-up refers to how the layers of your PCB are arranged — signal layers, power planes, ground planes, and dielectric materials. Choosing the proper stack-up early in the design process is essential for signal integrity, manufacturability, and electromagnetic performance.

Why Stack-Up Matters

High-speed and high-performance circuits rely on controlled impedance and clean return paths. These depend heavily on your stack-up. A poor layer structure can lead to:

• Signal reflections

• Crosstalk between traces

• Increased electromagnetic interference (EMI)

• Unstable power delivery

• Difficulty passing compliance testing

But a well-designed stack-up helps:
✅ Maintain signal integrity
✅ Reduce EMI
✅ Control impedance
✅ Enable faster routing
✅ Improve thermal performance
✅ Lower overall PCB cost

Typical PCB Stack-Up Example

Here’s a common 4-layer stack-up used in mixed-signal designs:

This type of stack-up provides excellent signal return paths and makes controlled impedance routing easier.

Key Stack-Up Design Tips

When planning your stack-up:

1. Include a solid ground plane

Place a continuous ground layer adjacent to signal layers. This stabilizes impedance and prevents signal noise.

2. Keep power and ground close

Tightly coupled power and ground planes act as built-in decoupling, reducing noise and ripple.

3. Use symmetric layer stacks

Balanced builds minimize bowing or warping during manufacturing.

4. Plan for impedance

Use your stack-up to meet impedance targets like 50Ω single-ended or 100Ω differential.

5. Collaborate with your PCB manufacturer

Fabricators provide standard stack-ups with known dielectric values — use these instead of guessing.

How Schmartboard Helps

At Schmartboard, we understand that stack-up decisions can be overwhelming — especially for engineers and makers who want to move quickly from idea to prototype. Our prototyping boards use professional-grade layouts with solid ground planes and clean routing structures, helping you build reliable circuits without worrying about stack-up problems early on.

Using Schmartboard:

• Helps prototype high-speed or sensitive circuits reliably.

• Reduces signal noise during testing.

• Mimics industry-standard stack-ups, ensuring easier production migration.

Final Thoughts

Your PCB is only as strong as its foundation — and the stack-up is that foundation. Choosing it early isn’t just a best practice; it’s a critical design strategy to ensure clean signals, stable power, and a reliable product.

So before you route that first trace, ask yourself:

✅ Have I defined the stack-up?
✅ Does it support my signal integrity needs?
✅ Will it scale from prototype to production?

Design smarter. Design cleaner. And prototype confidently with Schmartboard.

If you’re designing for USB, HDMI, Ethernet, DDR memory, or any fast digital interface, you can’t ignore this principle:

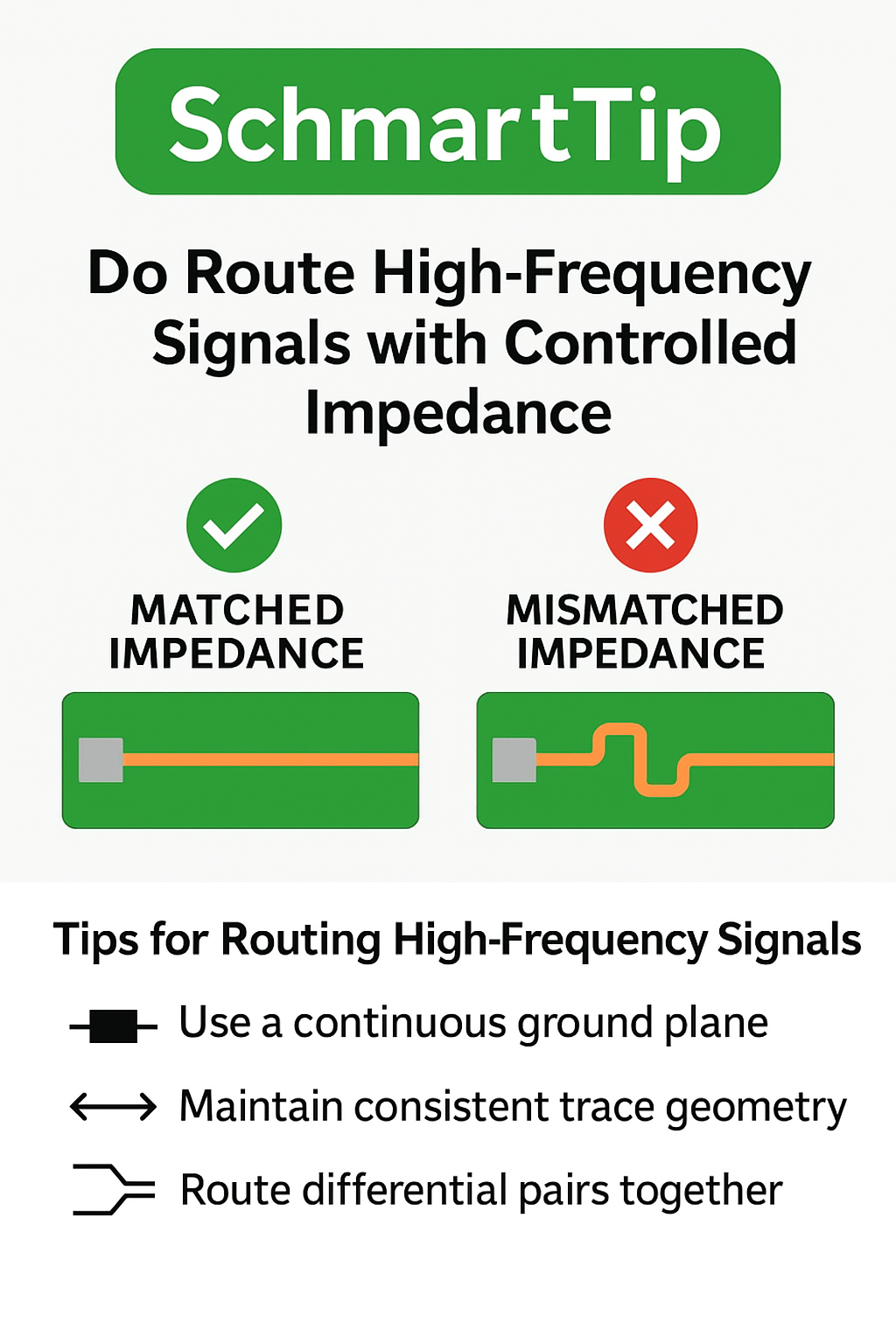

Do route high-frequency signals with controlled impedance.

Why Controlled Impedance Matters

At high frequencies (typically above ~50 MHz, but sometimes even lower), a PCB trace’s geometry and surrounding materials start to influence signal behavior.
If the impedance of a trace doesn’t match the device it’s connected to — for example, a 50Ω or 100Ω differential pair — part of the signal will reflect back toward the source, causing distortion, data errors, and EMI issues.

In short:
✅ Matched impedance = clean, stable signal
❌ Mismatched impedance = noise, reflections, and unreliable communication

What Affects PCB Impedance

Several factors determine a trace’s impedance, including:

• Trace Width and Thickness – Wider traces reduce impedance, while thinner traces increase it.

• Dielectric Height – The distance between the signal trace and the ground plane strongly influences impedance.

• PCB Material (Dielectric Constant, or Dk) – FR-4, Rogers, and other materials each affect the signal differently.

• Reference Plane Placement – A continuous ground plane below the trace helps maintain a consistent impedance.

• Differential Pair Spacing – For high-speed signals (like USB or Ethernet), the distance between paired traces is critical.

Best Practices for Routing High-Frequency Signals

1. Use a Continuous Ground Plane
   This provides a stable reference for return currents and minimizes impedance fluctuations.

2. Maintain Consistent Trace Geometry
   Don’t vary width or spacing mid-route. Sudden changes can cause signal reflections.

3. Route Differential Pairs Together
   Keep them the same length, spacing, and layer — and avoid vias when possible.

4. Avoid Sharp Corners
   Use 45° or curved bends to reduce impedance discontinuities and reflections.

5. Use Impedance Calculators or Stackup Tools
   PCB design software and online tools (like Saturn PCB or your fabricator’s calculators) can help you design for exact impedance targets.

6. Consult Your Fabricator
   PCB manufacturers often provide standard stackups with known impedance values — use those to your advantage.

How Schmartboard Helps

At Schmartboard, we make it easier for engineers and hobbyists to prototype and test high-frequency circuits without guesswork. Our boards are designed with proper grounding, clean trace geometry, and reliable material properties — features that align with professional impedance control standards.

When experimenting with RF modules, microcontrollers, or fast digital interfaces, Schmartboard products help you:

• Prototype cleanly without signal degradation.

• Maintain short, direct signal paths.

• Test your design before committing to a production PCB.

With Schmartboard, you can focus on innovation, not layout headaches.

Final Thoughts

As signal speeds climb, impedance control moves from “nice-to-have” to absolutely essential.
Routing high-frequency signals with controlled impedance ensures signal integrity, reduces EMI, and helps your designs perform as intended.

So before you route that next high-speed trace, remember:

It’s not just a wire — it’s a transmission line. Design it that way.

And when you’re ready to test your ideas quickly and confidently, reach for Schmartboard — the smarter way to build, test, and learn high-speed design fundamentals.

One of the golden rules of PCB design is simple:

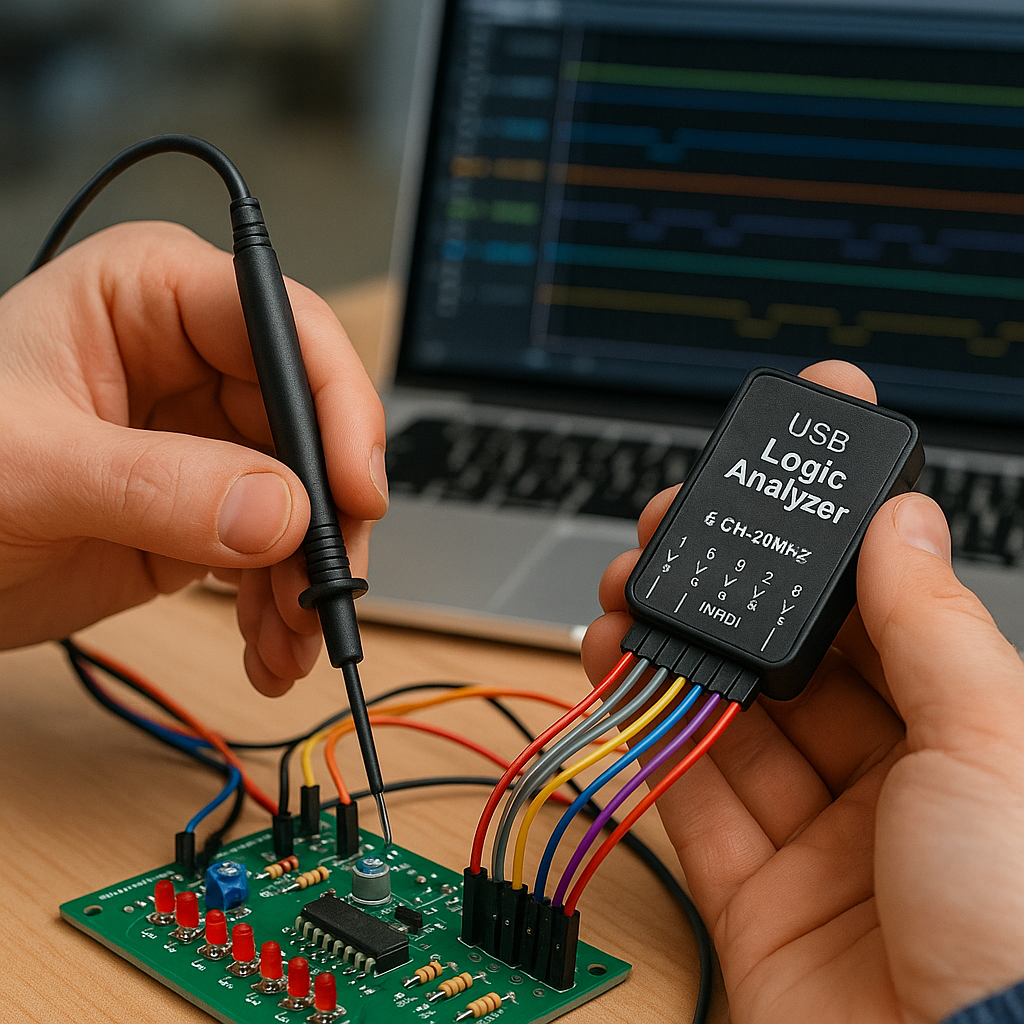

Don’t overcrowd the board — leave room for debugging.

Why Space Matters in PCB Design

When components are packed too tightly:

• Probing Becomes Difficult – Oscilloscope probes, multimeter leads, or logic analyzer clips may not fit between closely placed pins or traces.

• Rework Gets Risky – Soldering or desoldering individual components without disturbing neighbors becomes nearly impossible.

• Airflow is Limited – Components that generate heat can overheat faster when airflow around them is restricted.

• Signal Crosstalk Increases – Tight layouts without spacing can cause unintended coupling between traces, leading to noise issues.

Simply put, a board with zero breathing room might work fine in theory — but in practice, it becomes a nightmare to troubleshoot.

Design With Debugging in Mind

Here are some best practices:

• Leave Test Pads and Access Points
  Add small test pads for key signals so you can easily connect probes during debugging.

• Group Components by Function
  Keep related parts together but leave margins between groups. This helps you quickly isolate issues.

• Use Silkscreen Labels Generously
  Clear labels for pins, test points, and component values make debugging faster and less error-prone.

• Plan for Expansion or Rework
  Reserve a little extra room for jumper wires, alternative components, or bodge fixes if needed.

How Schmartboard Helps

At Schmartboard, we know that rapid prototyping often involves iterating and debugging. That’s why our prototyping solutions are designed with extra space and accessible layouts.

• Our boards are engineered to make soldering easier, which is critical when you’re replacing or reworking parts.

• They provide room to probe signals, add jumpers, or insert test components without crowding.

• Schmartboard layouts often mimic best practices from professional PCB design, making the transition from prototype to production smoother.

By starting your design with Schmartboard, you give yourself the breathing room you’ll need when something doesn’t go as planned (because in prototyping, that’s almost guaranteed!).

Final Thoughts

A successful PCB design isn’t just about making it small or efficient — it’s about making it workable, testable, and repairable. Leaving room for debugging ensures that when issues arise, you can solve them without tearing your hair out.

With Schmartboard, you get prototyping tools that respect this principle, helping you create boards that aren’t just functional, but also practical to work with.

So remember: Don’t overcrowd the board — leave space to debug, and design smarter with Schmartboard.

Why Use a Ground Plane?

A ground plane is a large, continuous area of copper on a PCB that is connected to the ground reference of your circuit. It acts as a low-impedance return path for signals, which helps in several ways:

• Noise Reduction: By providing a dedicated return path, a ground plane reduces the chances of noise coupling and electromagnetic interference.
• Improved Signal Integrity: Signals are less prone to distortion or dip, thanks to the consistent reference voltage and minimized parasitic inductance.
• Enhanced Power Distribution: A ground plane distributes the return current evenly, reducing potential voltage drops and ensuring stable operation.
• Reduced Loop Area: Ground planes decrease the loop area, which in turn cuts down radiated emissions and susceptibility.

Best Practices for Implementing a Ground Plane

• Use a Solid Copper Layer: Whenever possible, dedicate an entire layer as a ground plane. This maximizes the benefits of a continuous, unbroken copper area.
• Keep Ground and Power Separations Clear: While a ground plane is crucial, also maintain separation from noisy signals, high-current traces, and digital lines to reduce coupling.
• Connect Ground Points Strategically: Use multiple vias to connect the ground plane to different parts of the circuit, minimizing ground loops and potential noise sources.
• Avoid Breaks in the Ground Plane: Breaks or splits can introduce unintended antenna loops, which can cause noise issues.

Schmartboard

For hobbyists and professional engineers alike, working with PCB prototyping and manufacturing is made much simpler with tools like Schmartboard. Schmartboard offers pre-assembled, easy-to-use PCB solutions that facilitate rapid prototyping. Their boards often incorporate best practices, including ground planes, to ensure minimal noise and signal integrity issues.

Using a Schmartboard can help designers focus more on circuit design and less on layout intricacies, as these boards are engineered to promote reliable grounding strategies. Whether you're testing a high-speed digital design or sensitive analog circuitry, starting with a well-designed PCB that emphasizes solid grounding—such as those from Schmartboard—can make a significant difference in your project's success.

Final Thoughts

Incorporating a ground plane into your PCB design is a fundamental step toward minimizing noise, improving signal integrity, and ensuring the overall stability of your circuit. It’s a straightforward yet powerful technique that pays dividends, especially in complex or high-frequency designs.

And for ease of prototyping, consider using products like Schmartboard that emphasize good grounding practices—making your development process smoother and more reliable from the outset.

Happy PCB designing!

When designing a printed circuit board (PCB), every successful project starts with one thing: understanding your components. And there’s no better way to do that than by reading the datasheet.

Skipping this step can lead to design flaws, unexpected performance issues, and costly rework — things we all want to avoid.

At Schmartboard, we see it all the time: engineers and makers who overlook critical details in the rush to prototype, only to discover later that a component doesn’t behave as expected. That’s why one of the golden rules of PCB design is:

Always check the datasheet — every time, for every component.

Why Datasheets Matter

A component’s datasheet is more than just a technical document — it’s your blueprint for success. It contains vital information, including:

• Electrical Characteristics
  Understand operating voltages, current limits, power ratings, and timing specs to prevent design failures.

• Pin Configurations
  Avoid miswiring or incorrect orientation by reviewing the pinouts and functional descriptions.

• Thermal Ratings
  Ensure your components stay cool under load and know when heat sinking or ventilation is necessary.

• Timing and Switching Specs
  Crucial for high-speed circuits, especially when interfacing analog and digital components.

• Recommended Layout Guidelines
  Many datasheets provide tips for trace routing, decoupling capacitor placement, and ground plane management — all critical for stable performance.

Common Mistakes When Skipping Datasheets

• Reversed connections: Assuming a pinout is “standard” can lead to damaged components.

• Overheating: Not understanding thermal limits results in premature failures.

• Voltage mismatches: Using components outside their operating range causes instability.

• Noise issues: Overlooking decoupling recommendations creates signal integrity problems.

By simply reading the datasheet, you can prevent these headaches before they happen.

How Schmartboard Helps

At Schmartboard, we make prototyping easier — but we also know that even the easiest soldering job won’t succeed if your components aren’t properly understood.

That’s why our boards are engineered to match manufacturer datasheet specs exactly — from pin spacing to pad sizing — so you can confidently test and validate your circuits.

Pairing a carefully reviewed datasheet with a Schmartboard prototype means fewer surprises and faster progress.

Pro Tip: Build a Datasheet Checklist

When working on your next project, create a quick checklist for each component:

• ✅ Pinout and orientation

• ✅ Operating voltage and current

• ✅ Thermal dissipation needs

• ✅ Timing and switching specs

• ✅ Recommended layout and decoupling guidelines

This habit will save time, reduce errors, and improve your final design quality.

Final Thoughts

In electronics, guessing is expensive. Taking a few minutes to study every component’s datasheet can make the difference between a board that just works and one that fails unexpectedly.

With Schmartboard prototyping solutions by your side, you can design faster and smarter — while staying aligned with each component’s intended specifications.

Why Grounding Matters

Digital circuits are noisy by nature. High-speed switching generates fast transients that propagate through the ground plane, while analog circuits require a clean, stable reference to measure low-level signals accurately. If analog and digital grounds are tied together haphazardly, that digital noise can leak into sensitive analog paths, degrading performance.

The Right Way to Handle Grounds

• Use a single, continuous ground plane whenever possible.
  Splitting ground planes can cause return current issues and create unexpected impedance paths, leading to crosstalk and noise coupling.

• If you must separate, connect at a single point.
  When analog and digital sections require isolation, connect the two grounds at a carefully chosen “star point” to control current return paths.

• Place components strategically.
  Keep analog and digital circuits physically separated on the board and route signals so that high-speed digital traces do not cross sensitive analog regions.

• Use proper decoupling and filtering.
  Bypass capacitors and ferrite beads can help reduce high-frequency noise transfer between domains.

Why the “Incorrect” Side Is Wrong

On the left side of the graphic:

• The analog and digital grounds are split into two separate planes.

• However, a signal trace crosses the split, forcing the return current to find an indirect, noisy path.

• This creates a large ground loop, which:

  • Increases electromagnetic interference (EMI).

  • Causes voltage offsets between analog and digital references.

  • Makes the analog measurements less reliable.

Essentially, the split is useless unless return currents are controlled.

Why the “Correct” Side Works

On the right side of the graphic:

• Analog and digital circuits are still physically separated on the PCB for noise control.

• However, the two ground planes are connected at a single “star point.”

• Return currents now follow a short, controlled path, minimizing noise injection.

This approach preserves the quiet environment for analog signals while allowing both systems to share a common ground reference.

Common Mistakes to Avoid

• Crossing signal traces over ground splits — this forces return currents through unintended paths, creating EMI issues.

• Placing mixed-signal ICs without considering where their reference grounds connect.

• Ignoring data sheet recommendations for grounding sensitive components like ADCs, DACs, and RF modules.

Final Thoughts

Good grounding practices are the foundation of robust mixed-signal PCB design. Whether you're working on a hobby project or a production-ready prototype, understanding how return currents behave and controlling where analog and digital grounds meet will save you from signal integrity headaches later.

At Schmartboard, our prototyping boards are designed with best practices in mind, making it easier to experiment without running into common grounding pitfalls.

Why Labeling Matters

When working with integrated circuits, capacitors, resistors, diodes, and nets (signal paths), it’s easy to think “I’ll remember what connects where.” Unfortunately, as projects grow in complexity, that confidence can quickly turn into confusion.

Proper labeling ensures:

• Faster Debugging – If something fails, you can quickly locate and test the exact component or connection.

• Easier Collaboration – Anyone else working on your project (or future you!) can understand the schematic and layout without guesswork.

• Reduced Errors – Miswiring or misplacing components is far less likely when everything is clearly labeled.

• Simpler Scaling – If you plan to move from a prototype on a Schmartboard to full PCB production, consistent labeling is essential.

Best Practices for Labeling Components

At Schmartboard, we’ve helped thousands of engineers, makers, and students streamline their design process. Here are a few pro tips to keep your projects organized and error-free:

1. Use Standard Naming Conventions

Follow the common designators:

• U1, U2, U3 → Integrated circuits

• R1, R2, R3 → Resistors

• C1, C2, C3 → Capacitors

• D1, D2 → Diodes

• J1, J2 → Jumpers or connectors

This creates a universal language so anyone can pick up your schematic and immediately understand it.

2. Label Nets Clearly

Don’t leave wires unnamed. Give each net a descriptive name based on its function:

• VCC_5V instead of “Net1”

• GND_SENSOR instead of “GND2”

• DATA_TX instead of “Net_A”

On a Schmartboard prototype, this means using consistent labeling from your schematic to your wiring.

3. Match Schematics to Physical Layout

Your labels on paper should match your actual build. When you use Schmartboard prototyping boards, we recommend marking component locations with a fine-tipped marker or adhesive labels. This simple habit makes troubleshooting much easier.

4. Document as You Go

Whether you’re using CAD software or manually wiring a Schmartboard, don’t wait until the end to label things. Documenting connections as you make them saves you time and prevents forgotten details.

How Schmartboard Makes It Easier

Schmartboard products are designed to bridge the gap between schematics and prototypes. Our boards feature:

• Pre-labeled pads to make component placement intuitive.

• Prototyping-friendly layouts that match common designators.

• Integrated soldering guides to keep components secured and organized.

By combining Schmartboard’s smart design with clear labeling, you can confidently take your project from concept to production without losing track of your components or nets.

Final Thoughts

Proper labeling might feel like a small task, but it’s one of the most powerful habits you can develop as a designer. It improves collaboration, simplifies troubleshooting, and accelerates your path from prototype to finished product.

At Schmartboard, our goal is to make electronics easier, smarter, and faster. Labeling your components and nets clearly is a foundational step in achieving that goal.

Schmartboard Tip

“A well-labeled schematic today saves hours of frustration tomorrow.”

Why Component Limitations Matter

1. Integrated Circuits (ICs):
   ICs are the “brains” of many electronic designs. Each one has a specific power supply range, input/output current limits, and maximum operating frequency. Exceeding these parameters can burn out the chip or cause subtle logic errors that are hard to debug.

2. Capacitors:
   Capacitors seem simple, but they come with strict voltage ratings. Using a capacitor rated for 16V in a 24V circuit will almost guarantee failure—sometimes explosively. Temperature and tolerance also matter for long-term stability.

3. Diodes:
   Diodes only allow current to flow in one direction, but each has a maximum forward current and reverse voltage rating. Push beyond those, and your diode may short-circuit or fail open.

Schmartboard and Smarter Prototyping

This is where Schmartboard comes in. Prototyping often means testing components in different conditions, but traditional breadboards and hand-wired setups can increase the risk of wiring mistakes, poor connections, or heat stress on parts.

Schmartboard solves this problem with high-quality prototyping boards designed for real-world reliability. Their patented "EZ" technology makes soldering surface-mount components straightforward, ensuring better connections and fewer errors. By pairing Schmartboard with a strong understanding of component limitations, you can:

• Safely test ICs, capacitors, and diodes in circuits that mimic production conditions.

• Build prototypes that last, avoiding damage caused by miswiring or unstable breadboards.

• Learn electronics the right way—respecting design limits while working with professional-grade boards.

Key Takeaway

Electronics is as much about respect as it is about creativity. Respect the limitations of your components—voltage, current, and thermal thresholds—and you’ll avoid costly mistakes. Combine that knowledge with Schmartboard’s reliable prototyping platforms, and you’ll be setting yourself up for success whether you’re building a hobby project, a proof-of-concept, or the next big innovation.
