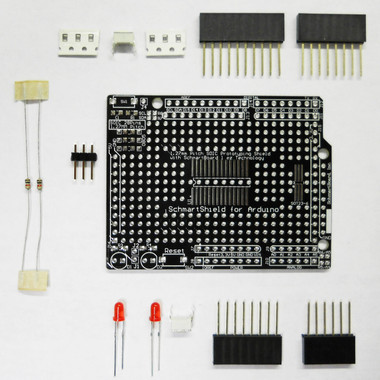

Schmartboard|ez 1.27mm Pitch SOIC Surface Mount Prototyping shield for Arduino Uno (With Components) (206-0004-02)

Hover over image to zoom

  • Image 1
  • Image 2
Schmartboard
$15.00
SKU:
206-0004-02

 Product Description

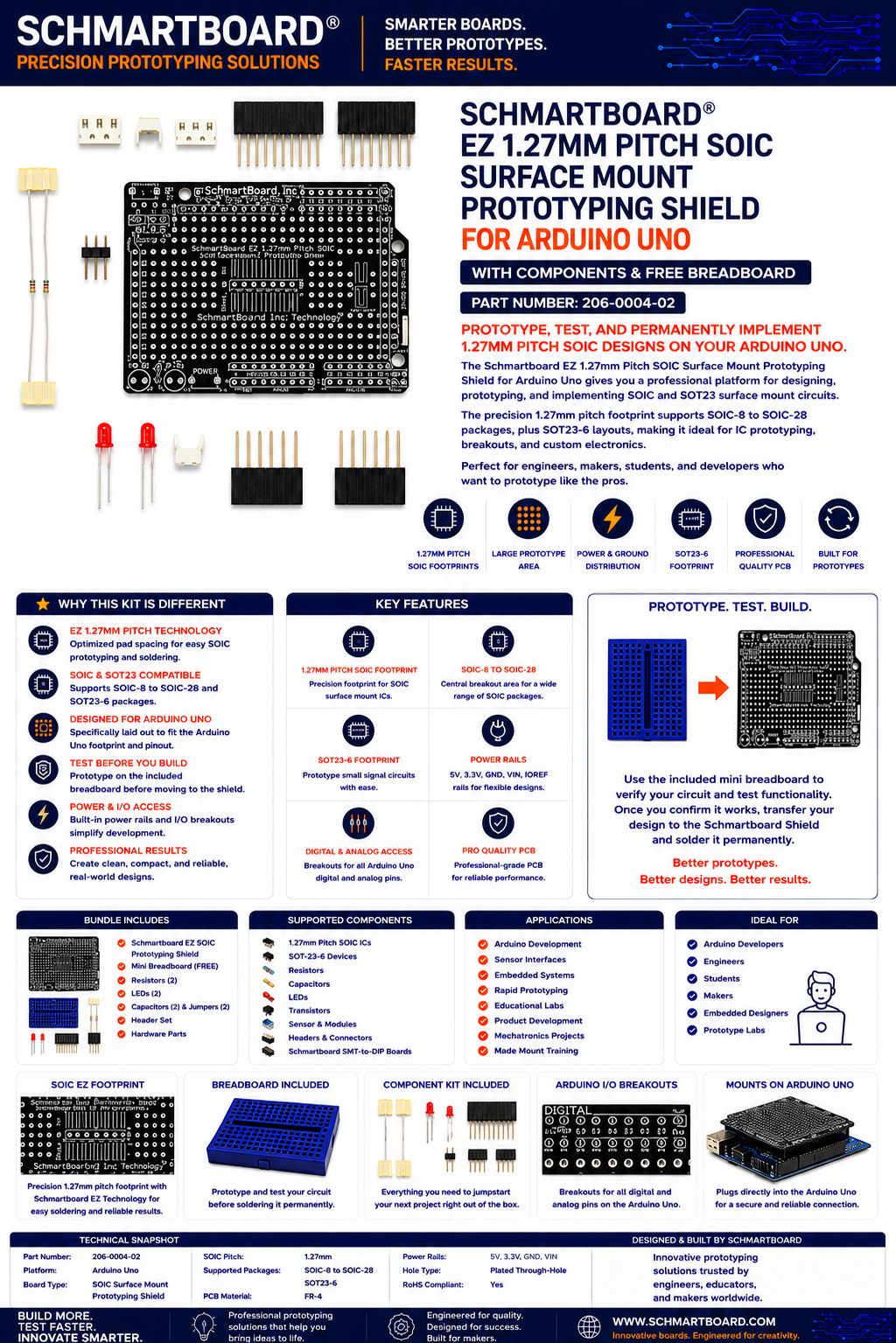

Schmartboard|ez 1.27mm Pitch SOIC Surface Mount Prototyping shield for Arduino Uno (With Components)

Schmartboard has made surface mount components available to Arduino users. These boards utilize our "EZ" soldering technology to assure fast, easy and flawless soldering.

Here are the features:

  • 1.27mm pitch SOIC footprint for prototyping,
  • SOT23-6 footprint for prototyping,
  • Onboard reset button for the Arduino IC,
  • Additional Push-Button switch circuit,
  • 5V/GND rail for easy connection,
  • 3.3V/GND rail for easy connection,
  • 2 General purpose LEDs,
  • Optional Pull-up resistors footprints (Through-Hole or SMD) for I2C,
  • Spare 0805 footprint x3,
  • Surface Mount bypass footprints available on the bottom side


Once upon a time it was easy to prototype a circuit by hand soldering components on to a prototyping board, using wire wrap techniques or a breadboard.  Today, our advanced electronics require the use of small and tight pitched components.  It’s made it almost impossible to prototype.  Schmartboard, and only Schmartboard, has solved this conundrum. Never before has it been so easy to hand solder surface mount components.  Only Schmartboard has a patented technology that makes this possible.  "Schmartboard|ez" makes it easy to solder SOIC, QFP, QFN and other component packages with  pitches as small as .4mm.  If you want to use surfacemount on Arduino, Schmartboard is your only option.



Bill of Materials

Schematic

Mechanical Dimensions



 Product Videos

SchmartBoard Surface Mount Prototyping Shields-Game Changer
  • SchmartBoard Surface Mount Prototyping Shields-Game Changer
    Schmartboard has made surface mount components available to Ar...
